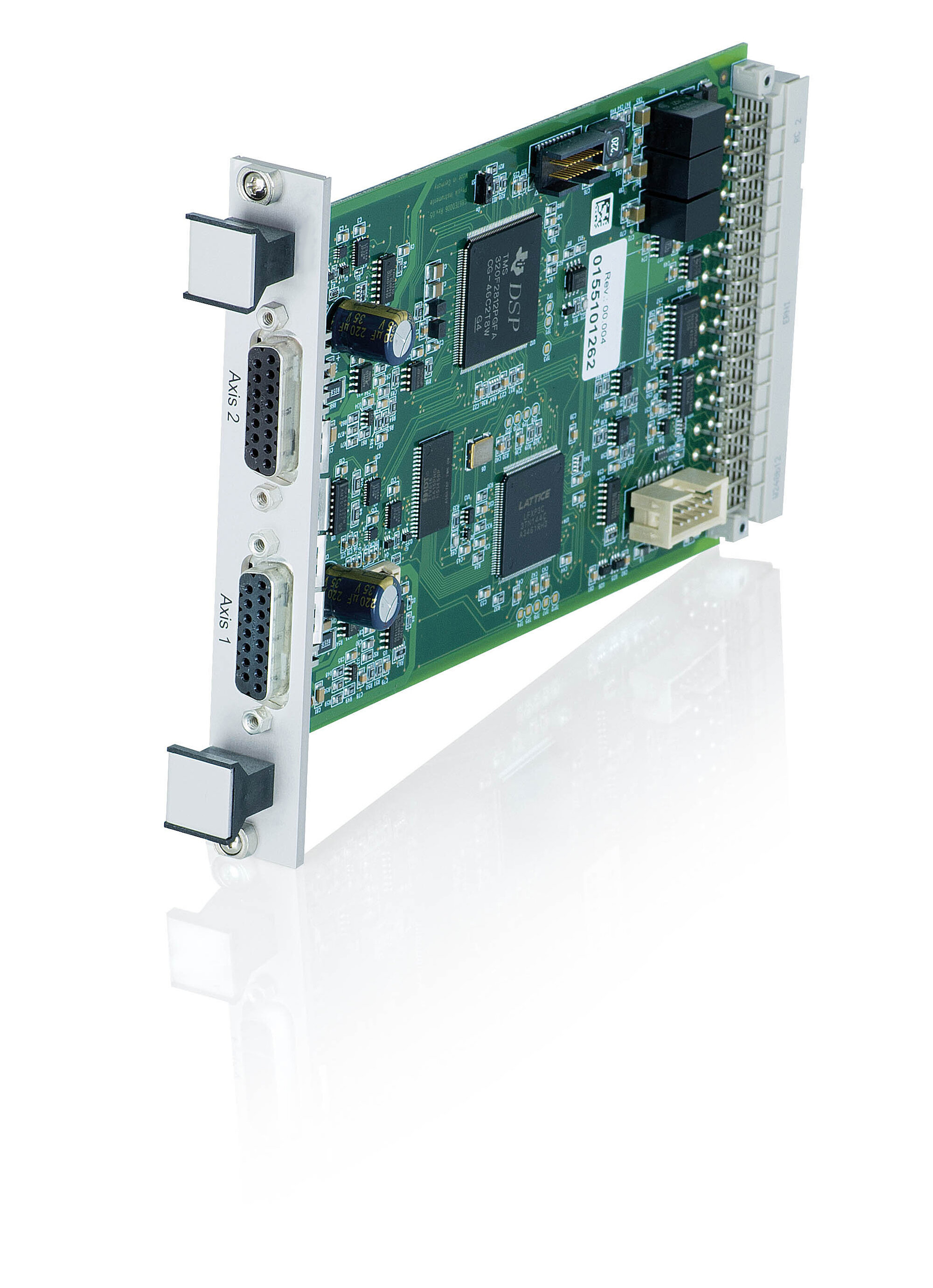

C-863.20C885 DC Motor Controller Module for C-885 PIMotionMaster

For DC Motors and Brushless DC Motors, 2 Axes

  • High-speed encoder input to 60 MHz
  • PID controller, parameter changing during operation
  • Powerful macro programming language, e.g., for stand-alone operation
  • Data recorder
  • Nonvolatile EEPROM for macros and parameters
  • Extensive software support
C-863.20C885 DC Motor Controller Module for C-885 PIMotionMaster
Description du produit Spécifications Téléchargements Devis / Commande

Digital motion controller for DC servo motors

2 axes. Motion control of PI positioning systems with DC motors: Direct motor control; PWM control for fast PI stages with integrated ActiveDrive amplifiers or with brushless motors and integrated block commutation. PID controller. Supports motor brake.

Extensive functions, software support

Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. PID controller, parameter changing during operation. Extensive software support, e.g., for LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.

Plug-and-play installation in the C-885 PIMotionMaster

Can be inserted in any free slot. Automatic detection and external communication (USB, Ethernet) by the processor and interface module of the C-885. Can be expanded with optional digital inputs and outputs. Power via the power supply of the C-885.
