Support d'objectif PIFOC® et scanners PInano® pour la microscopie

PIFOC® Objective & PInano® Sample Scanners for Microscopy

Piezo flexure stages and objective scanners of the PIFOC® and PInano® series offer high dynamics in positioning and scanning tasks. Well adapted solutions for XY specimen positioning parallel and vertical to the optical axis and Z focusing of the objective are available as standard products.

Stages are also available conveniently in a system together with controller and all required connecting cables and software. Like all piezo systems, microscopy stages and scanners are delivered precalibrated with measurement log.

PIFOC® Objective Scanners for Microscopy

NOUVEAU

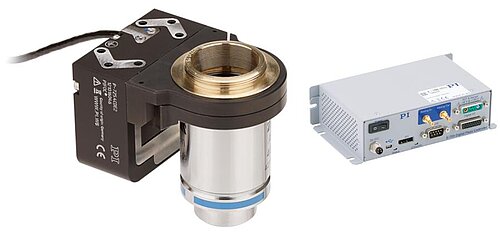

P-725.xCDE1S PIFOC Scanner System for Microscope Objectives

Dynamic focus scanner of the entry-level class for travel ranges up to 400 µm, incl. controller

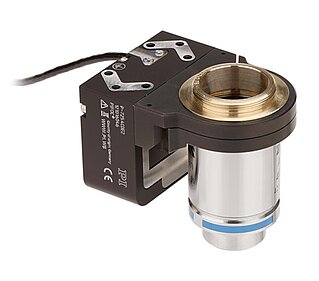

P-725.xCDE2 PIFOC Focus Scanner for Microscope Objectives

Dynamic Scanning with Travel Ranges of 100 µm, 400 µm, or 800 µm

P-726 PIFOC High-Load Focus Scanner

Highly Dynamic Focus Scanner with Long Travel Range for Heavy Objectives
  • Highly dynamic positioning and scanning for large objectives
  • Resonant frequency 1120 Hz
  • 560 Hz with 210 g objective mass
  • Typ. step-and-settle about 6 ms
  • Travel range 100 µm
  • Highest linearity, stability, and control dynamics due to direct-measuring capacitive sensors
  • Resolution 0.3 nm
  • Zero-play, high-precision flexure guide system for better focus stability

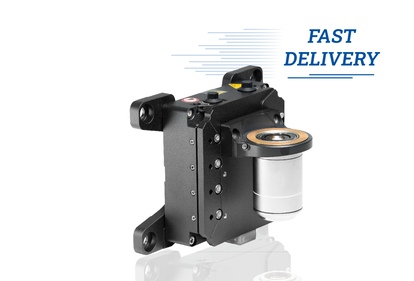

V-308 Voice Coil PIFOC Focus Drive for Objectives

High-dynamics positioner for microscope objectives

ND72Z2LAQ PIFOC Objective Scanning System 2000 µm

Nanometer Resolution and Fast Step-and-Settle

P-725.CDD PIFOC High Dynamics Piezo Scanner

Nanopositioner and Scanner for Microscope Objectives

Vertical Sample Stages for Microscopy

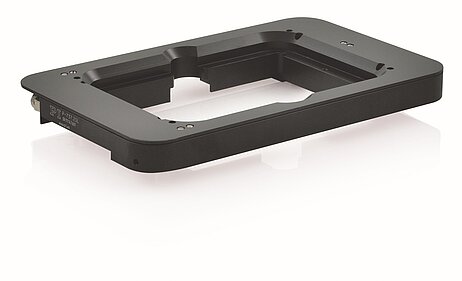

P-737 PIFOC Specimen Z Positioners

With Large Aperture and Low Profile

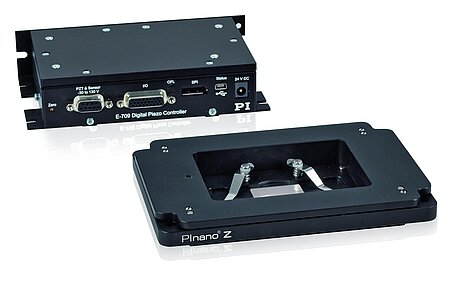

P-736 PInano® Z Microscope Scanner System

Inexpensive, with Low Profile

PInano® Piezo Flexure XY(Z) Scanners

P-545.xR8S PInano® XY(Z) Piezo System

Inexpensive Nanopositioning System for High-Resolution Microscopy

P-545.xC8S PInano® Cap XY(Z) Piezo System

Capacitive Position Measuring for Super-Resolution Microscopy

P-545.3D8S PInano® Trak Piezo Tracking System

Fast XY(Z) Stage for High Dynamics Microscopy
