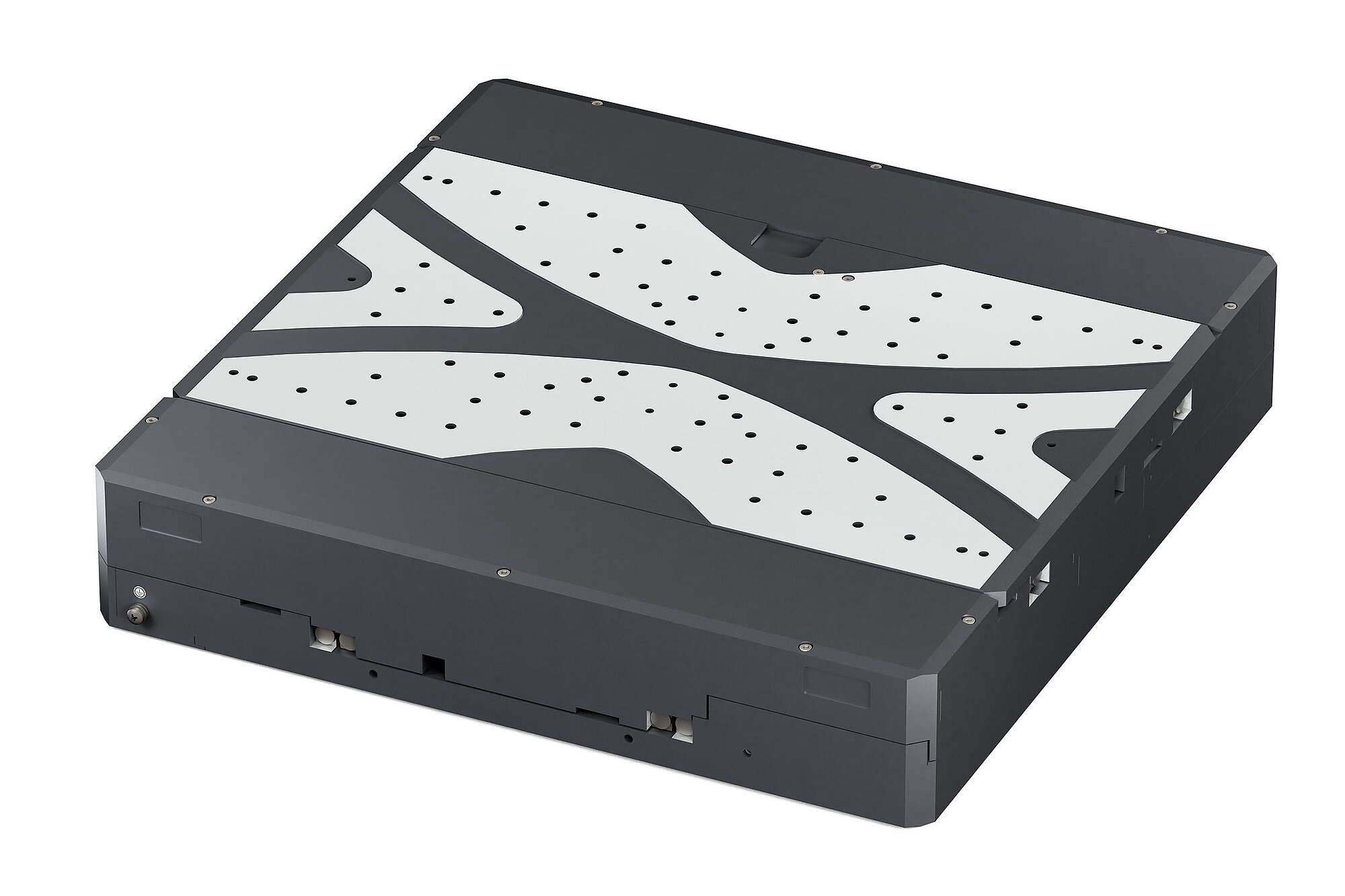

L-741 Precision XY Stage

High Travel Accuracy and Stability, 305 × 305 mm Travel Range

  • Travel range 305 mm × 305 mm (12'')
  • Unidirectional repeatability to 0.05 µm
  • Velocity to 90 mm/s
  • 2-phase stepper motor or DC motors
  • Incremental linear encoder with 1 nm resolution
  • Rotary encoder with 20000 impulses/revolution
L-741 Precision XY Stage
Description du produit Spécifications Téléchargements Devis / Commande

Highly accurate position measuring with incremental linear encoder

Noncontact optical linear encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement. Optical limit and reference switches. More travel ranges on request.

Crossed roller guide

With crossed roller guides, the point contact of the balls in ball guides is replaced by line contact of the hardened rollers. Consequently, they are considerably stiffer and need less preload, which reduces friction and allows smoother running. Crossed roller guides are also distinguished by high guide accuracy and load capacity. Force-guided rolling element cages prevent cage creep.

Drive types

  • 2-phase stepper motor for high torque even at low velocities and higher resolution
  • DC motor for high velocity constancy, low vibration, and high velocities

Application fields

Medical industry. Laser cutting. Biotechnology. Measuring technology. Laser inscription.

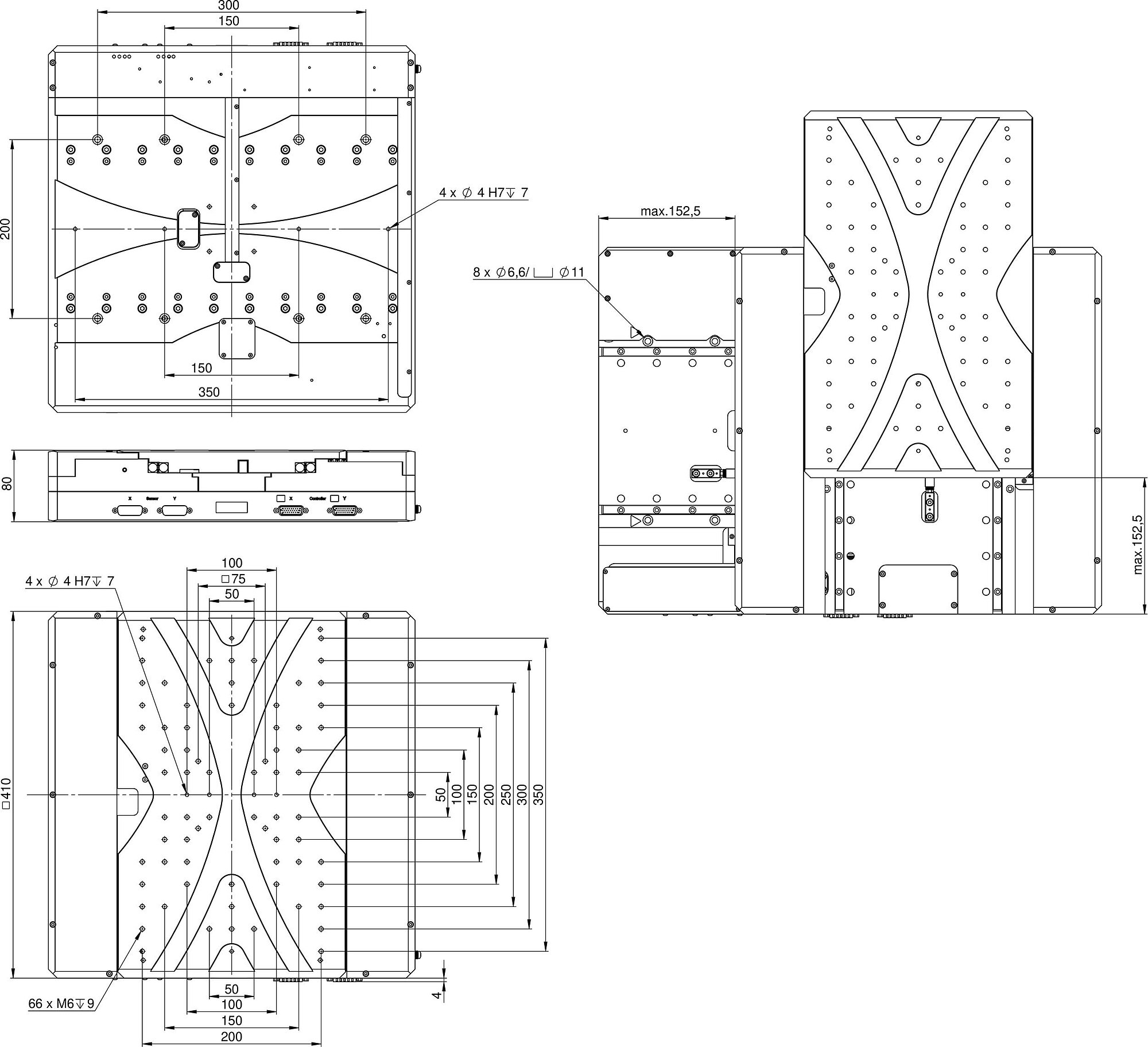

Specifications

Datasheet

Datasheet L-741

Version / Date
2024-07-16
pdf - 1 MB
Version / Date
2024-07-16
pdf - 1 MB
Version / Date
2018-07-16
pdf - 818 KB

Downloads

Datasheet

Datasheet

Datasheet L-741

Version / Date
2024-07-16
pdf - 1 MB
Version / Date
2024-07-16
pdf - 1 MB
Version / Date
2018-07-16
pdf - 818 KB

Documentation

Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

Version / Date
3.0.0 2024-01-15
pdf - 261 KB
Version / Date
3.0.0 2024-01-15
pdf - 295 KB
Documentation

User Manual MP184

L-741 / V-741 Precision XY Stage

Version / Date
1.2.0 2024-01-18
pdf - 2 MB
Version / Date
1.2.0 2024-01-18
pdf - 2 MB

3D Models

3D Models

L-741 3-D model

zip - 13 MB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

L-741.131111

Precision XY stage; 2-phase stepper motor; 305 mm × 305 mm travel range (X × Y); 200 N load capacity; 45 mm/s × 45 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

L-741.131112

Precision XY stage; 2-phase stepper motor; 305 mm x 305 mm travel range (X × Y); 200 N load capacity; 45 mm/s × 45 mm/s maximum velocity; ball screw; incremental linear encoder, 10 nm sensor resolution, A/B quadrature, RS-422

L-741.133111

Precision XY stage; DC motor; 305 mm × 305 mm travel range (X × Y); 200 N load capacity; 50 mm/s × 50 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

L-741.133112

Precision XY stage; DC motor; 305 mm x 305 mm travel range (X × Y); 200 N load capacity; 50 mm/s × 50 mm/s maximum velocity; ball screw; incremental linear encoder, 10 nm sensor resolution, A/B quadrature, RS-422

L-741.133132

Precision XY stage; DC motor; 305 mm × 305 mm travel range (X × Y); 200 N load capacity; 90 mm/s × 90 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev sensor resolution, A/B quadrature, RS-422

Contactez un ingénieur!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

Compatible Electronics Compatible Accessories Related Products

Applications

Genome Sequencing

Genome Sequencing

Be it in medicine, forensics, or genetics - the genome is the key to new insights for numerous questions. The method known as sequencing-by-synthesis, which used to decipher the genome, has become faster and more precise since it was first developed — the cost has decreased, respectively. The positioning techniques employed in the microscope systems used for this purpose have also contributed to...

Video Endoscopy

Modern medical technology focuses on developing therapies that cause as little discomfort to patients as possible. Endoscopes that allow minimally invasive surgery, make an important contribution to this, for example, in laparoscopy. Especially during medical interventions, the demand for focused and detailed image information is of the highest priority in order to achieve the best possible...

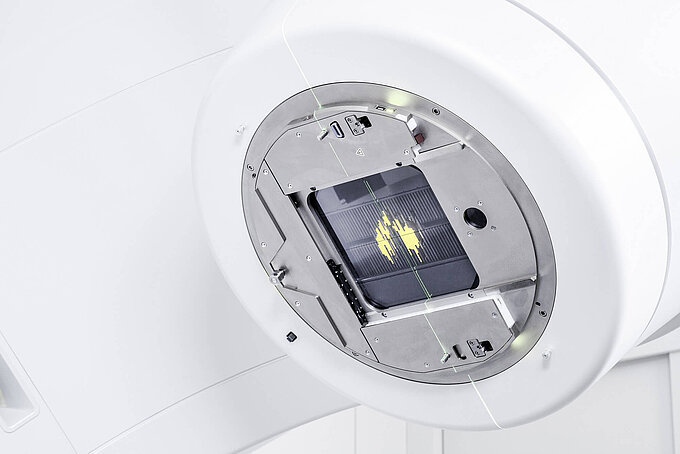

Positionnement de diaphragme adaptatif

Positionnement de diaphragme adaptatif

In radiation therapy, the individual leaves are adjusted so that the healthy tissue offers the optimum protection from the radiation.

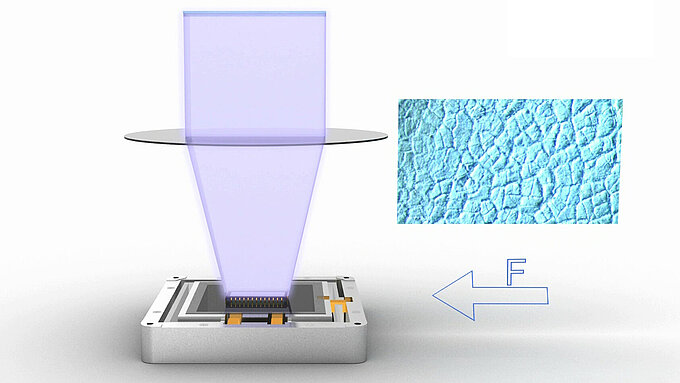

Stabilisation d’image

Stabilisation d’image

Fast, piezo-based scanners operate with the necessary velocities in the video frequency range for image stabilization and microscanning.

Pipetting and Nanodispensing

Pipetage

Piezomotors are suited for pipetting with small devices and sample separations and are able to move the pipettes in the vertical direction.

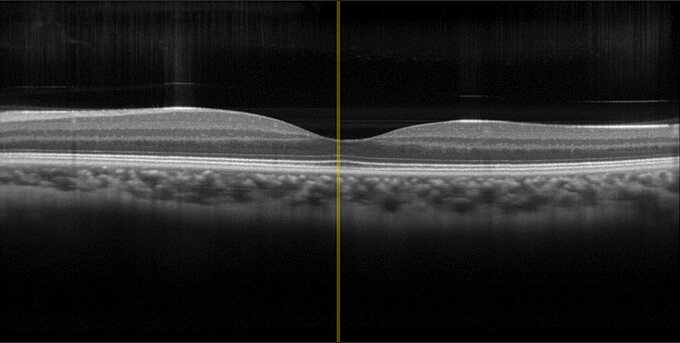

Physik Instrumente OCT Test Image
