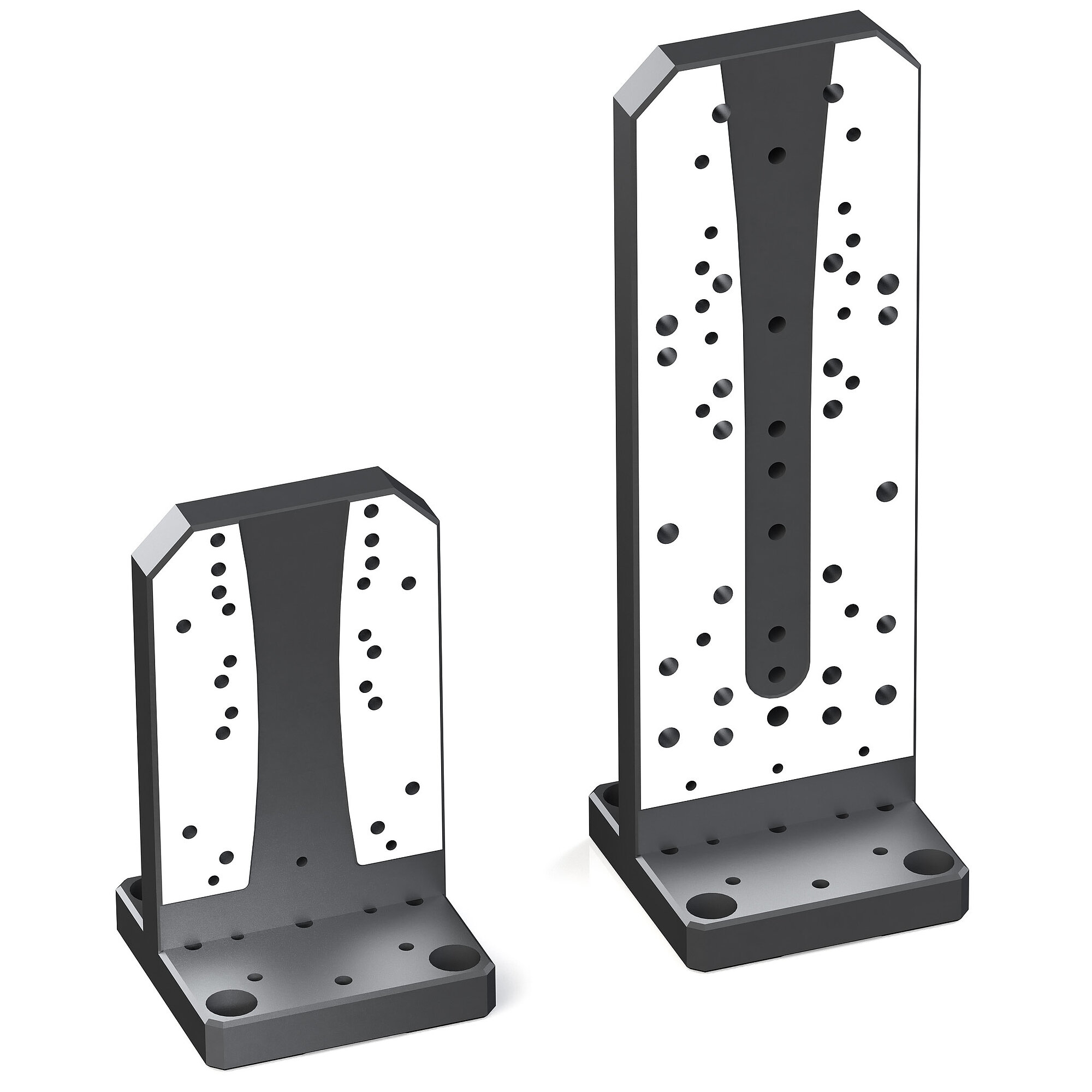

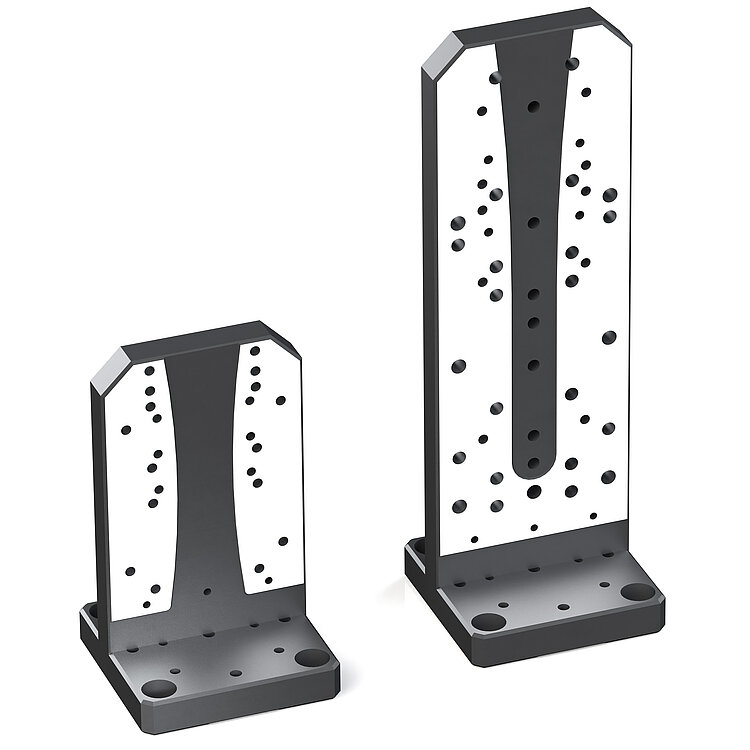

AB-65 Adapter Bracket

For Vertical Mounting of Linear and Rotation Stages

  • Vacuum-compatible articles to 10-9 hPa available
AB-65 Adapter Bracket
Description du produit Spécifications Téléchargements Devis / Commande

Product overview

The adapter is compatible with selected linear or rotation stages as well as goniometers.

Vacuum-compatible product variants to 10-9 hPa available.

Types of mounting

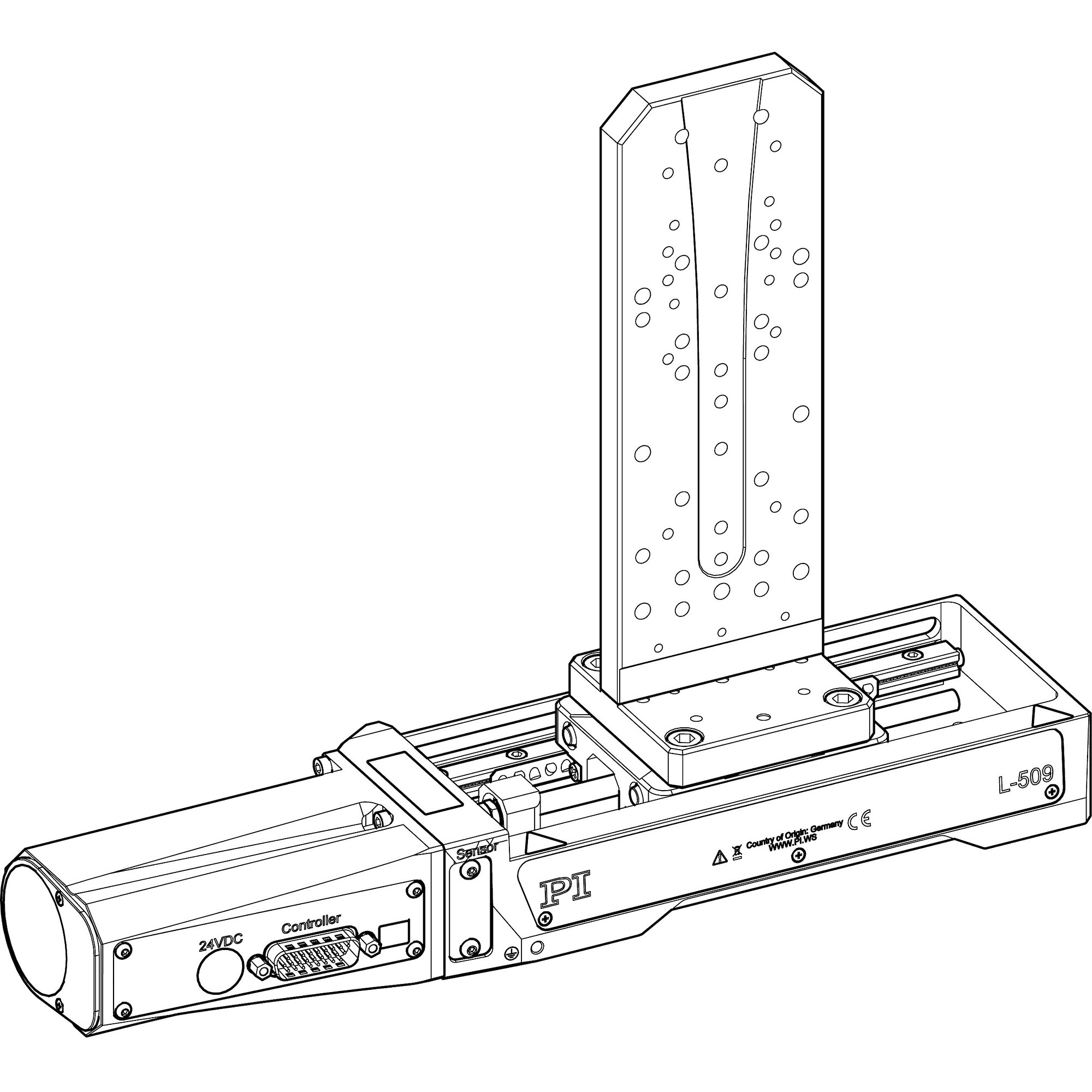

  • Adapter bracket on positioner: The adapter bracket can be mounted on the moveable translation stage of the positioner and is then moved with the positioner accordingly.

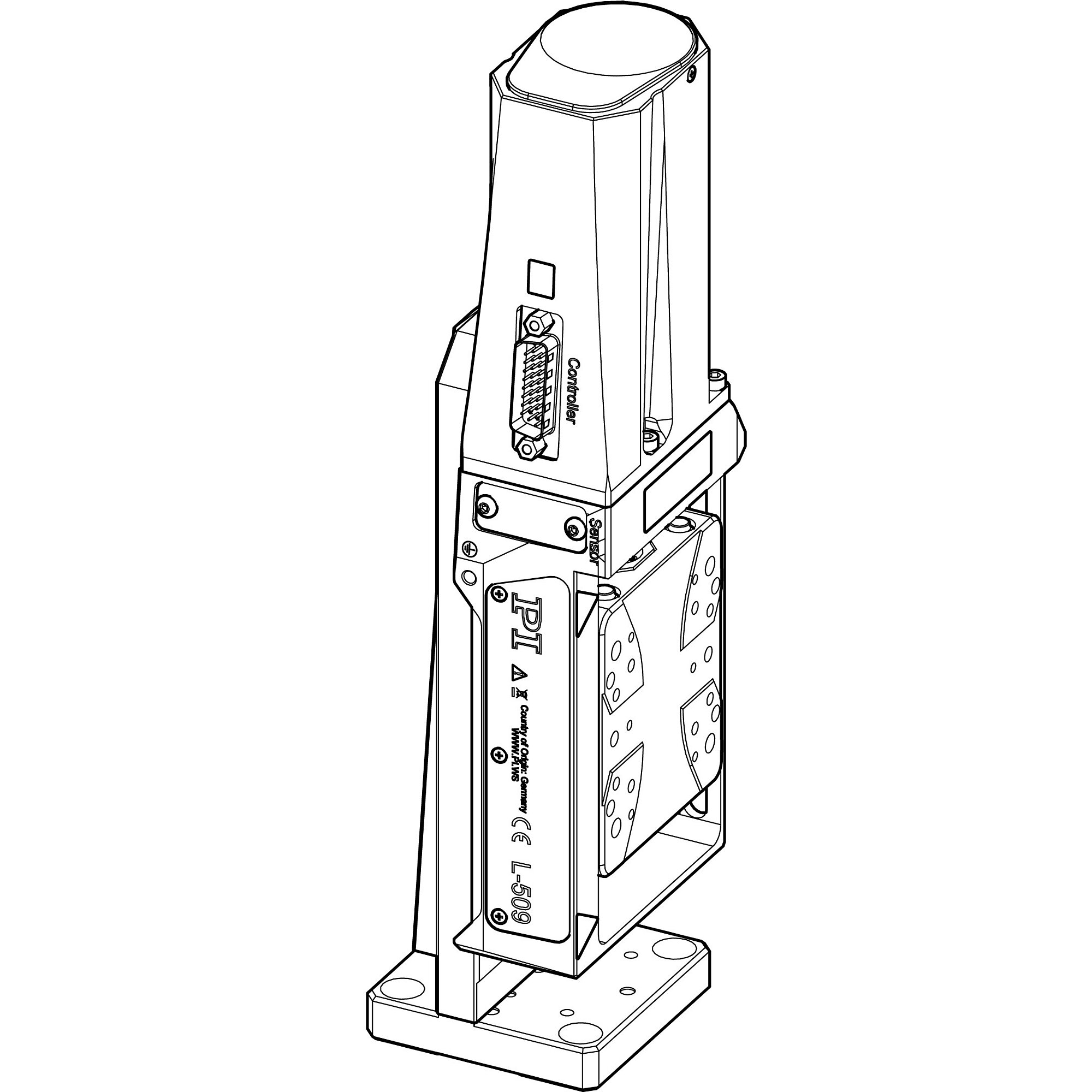

  • Positioner on adapter bracket: The positioner can be mounted on the adapter bracket, the stage moves relatively to it.

Specifications

Datasheet

Datasheet AB-65

Version / Date
2020-09-16
pdf - 2 MB
Version / Date
2020-09-16
pdf - 2 MB
Version / Date
2021-01-14
pdf - 658 KB

Downloads

Datasheet

Datasheet

Datasheet AB-65

Version / Date
2020-09-16
pdf - 2 MB
Version / Date
2020-09-16
pdf - 2 MB
Version / Date
2021-01-14
pdf - 658 KB

3D Models

3D Models

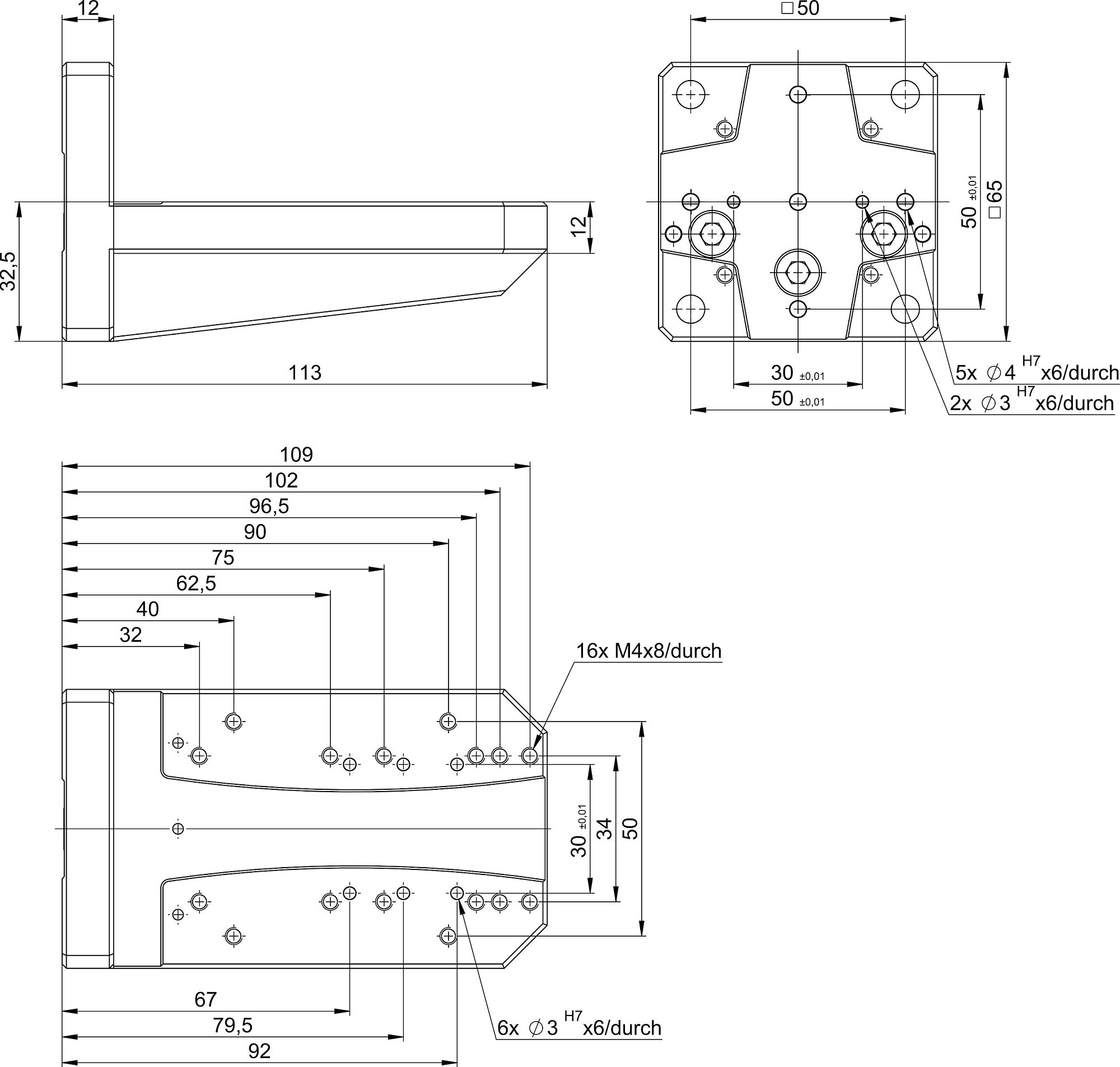

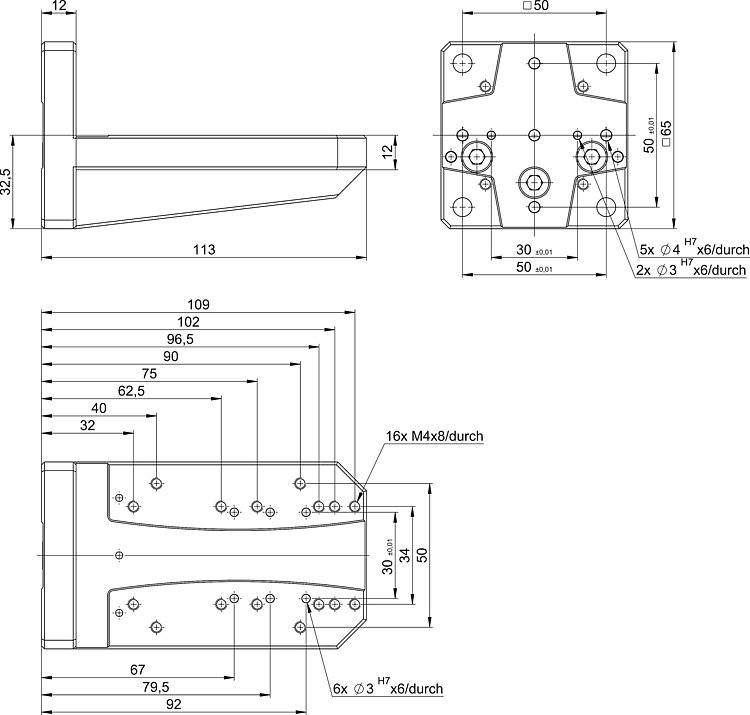

3-D model 61009075

zip - 140 KB
3D Models

3-D model 6100V075

zip - 99 KB
3D Models

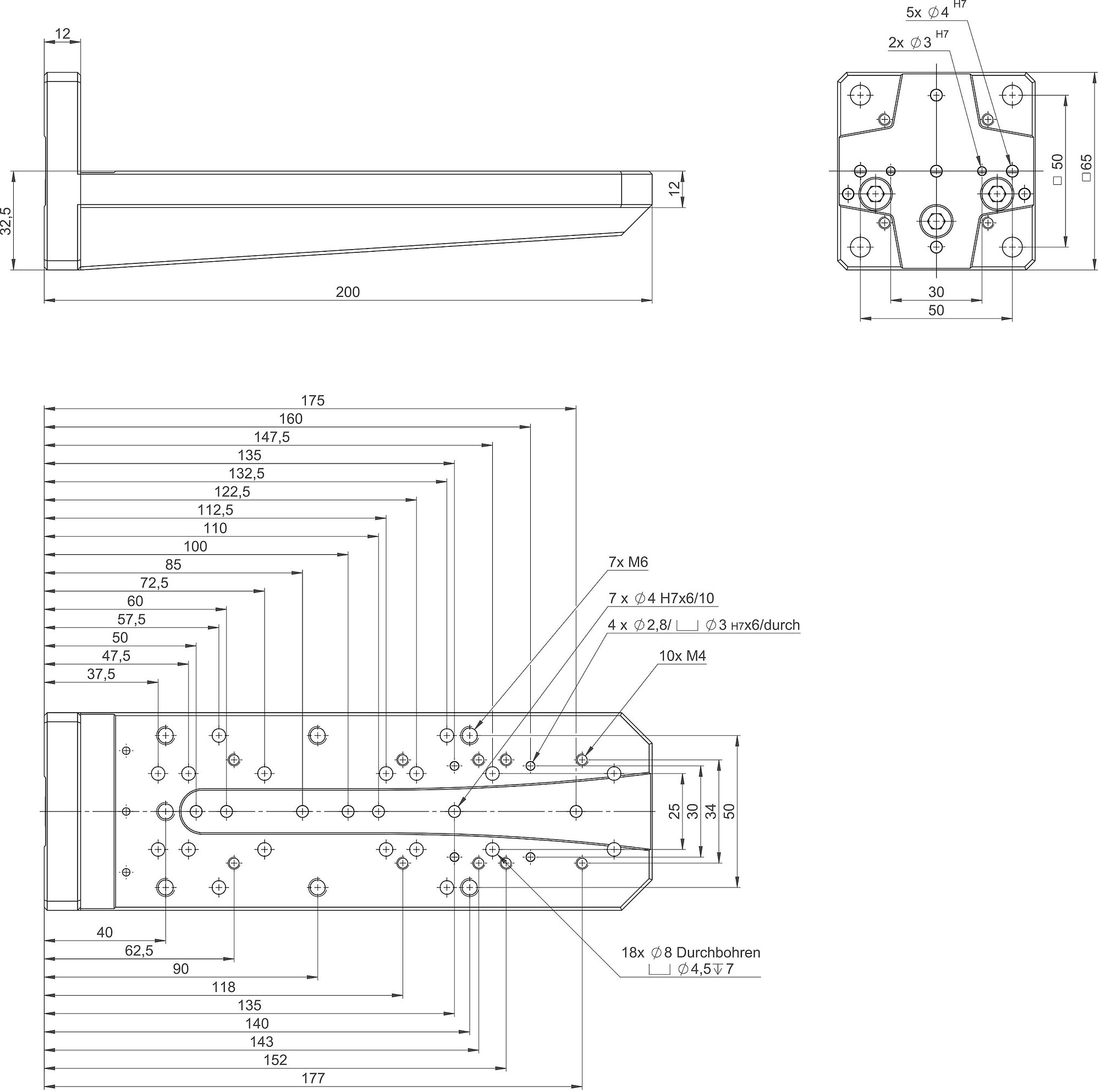

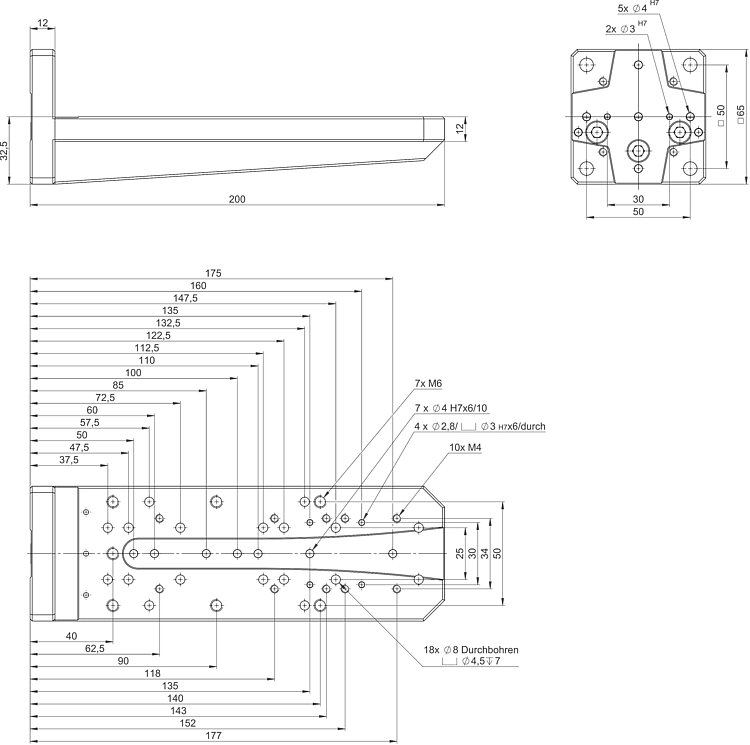

3-D model 61009076
