VT-80 V6 Linear Stage Suitable for Vacuum

Basic Version for Universal Fields of Use

Suitable for vacuum up to 10^-6 hPa
Travel ranges between 25 and 300 mm
Low profile
Max. Velocity to 10 mm/s
Load capacity to 5 kg

Aller au devis / à la commande

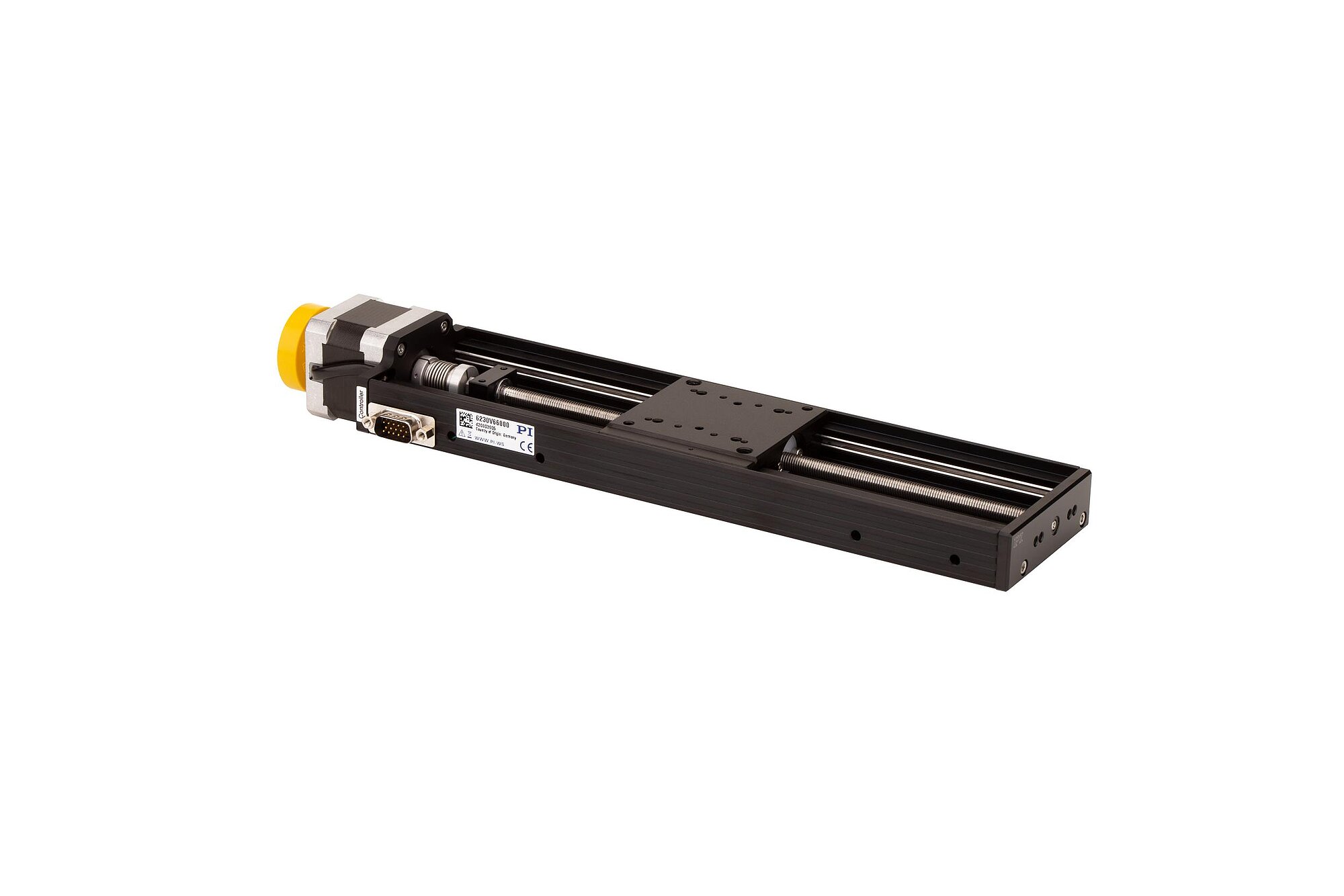

6230V66000

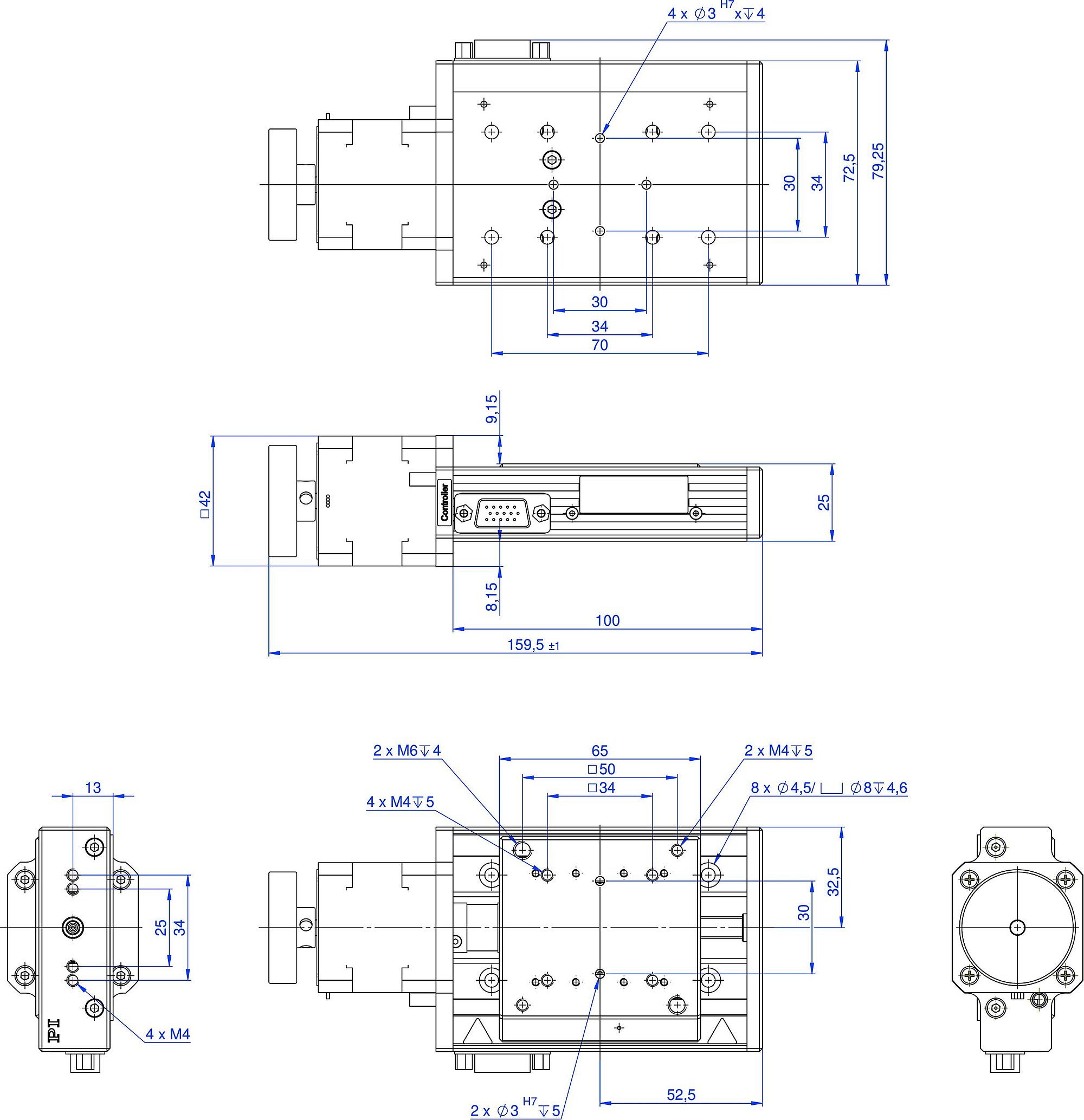

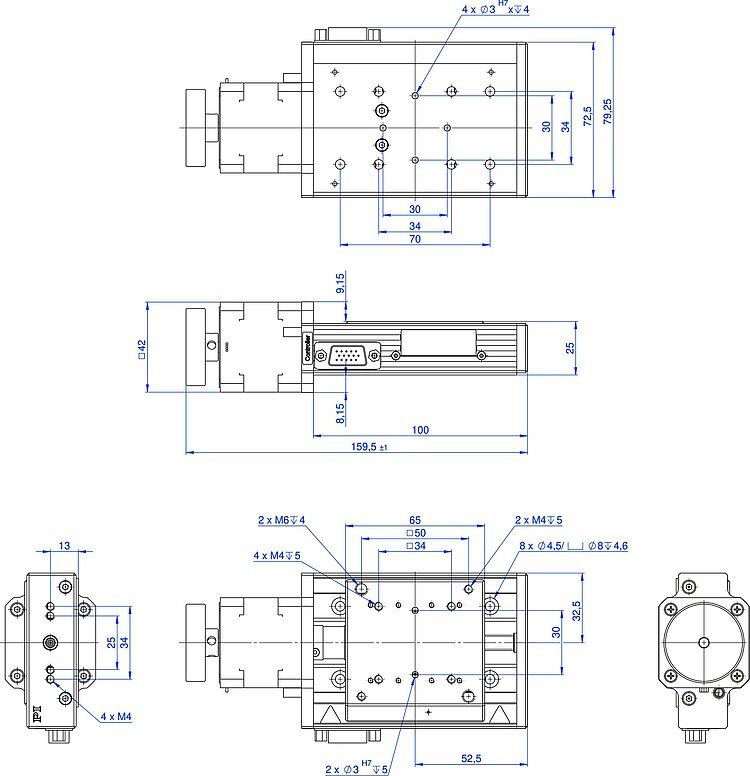

6230V61000, dimensions in mm

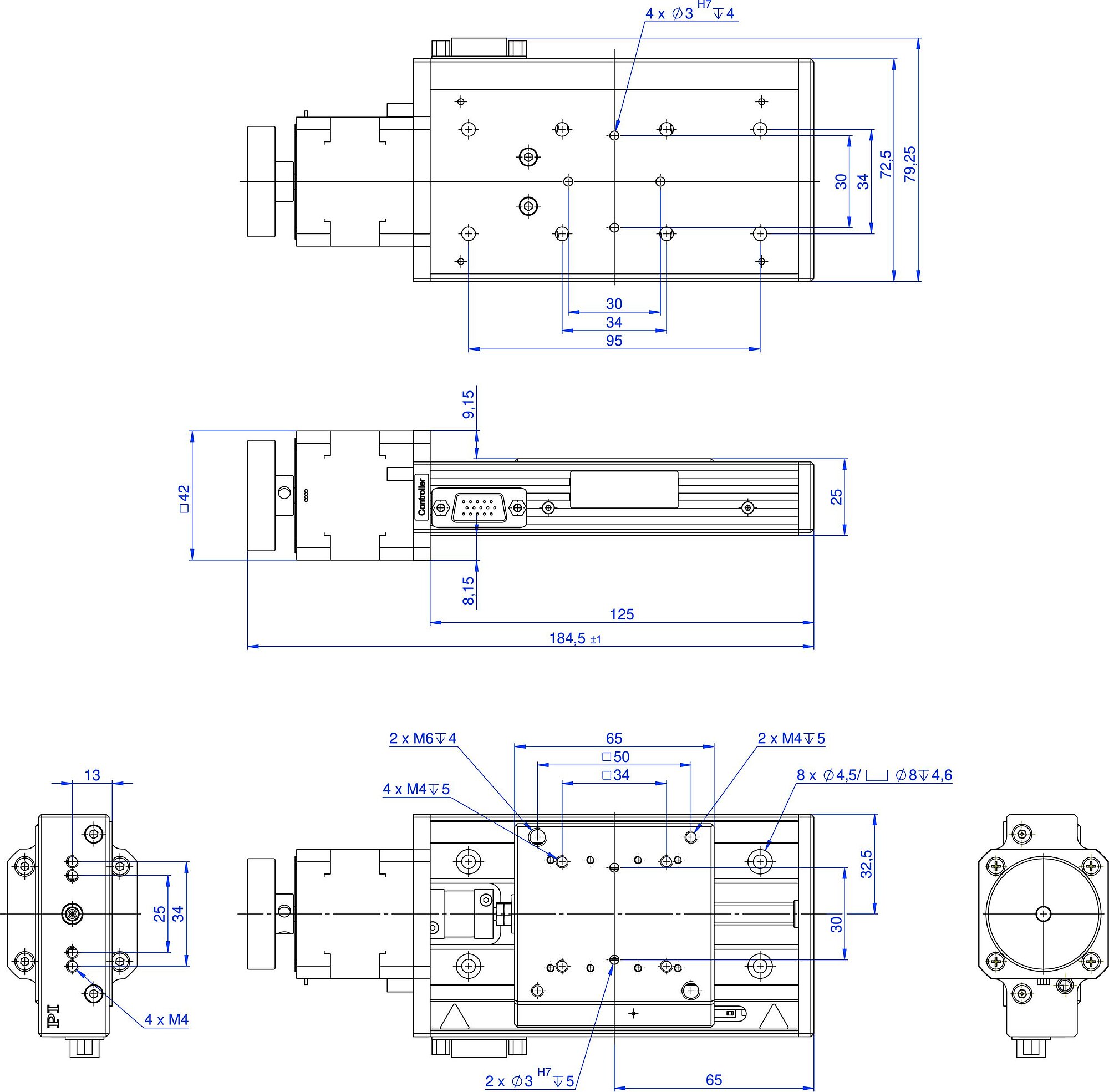

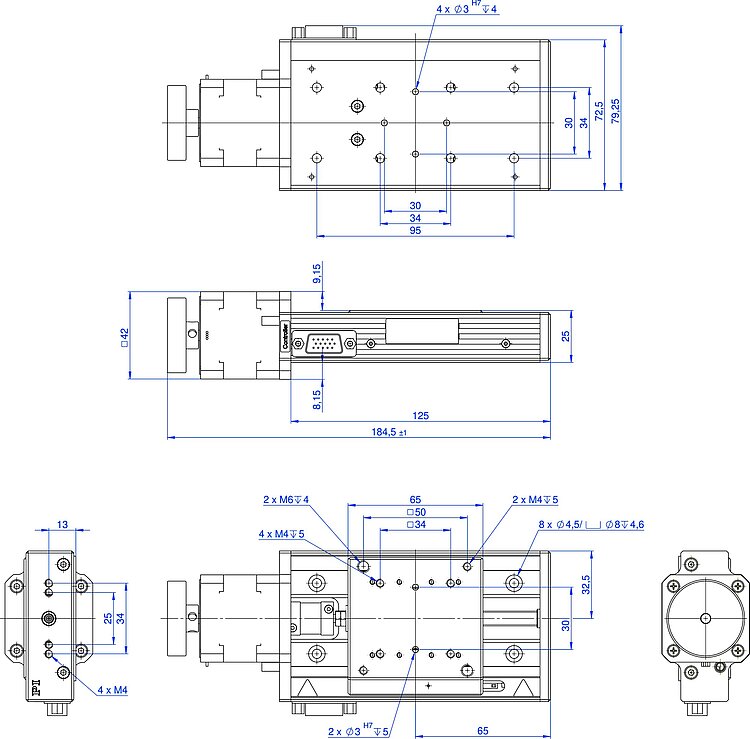

6230V62000, dimensions in mm

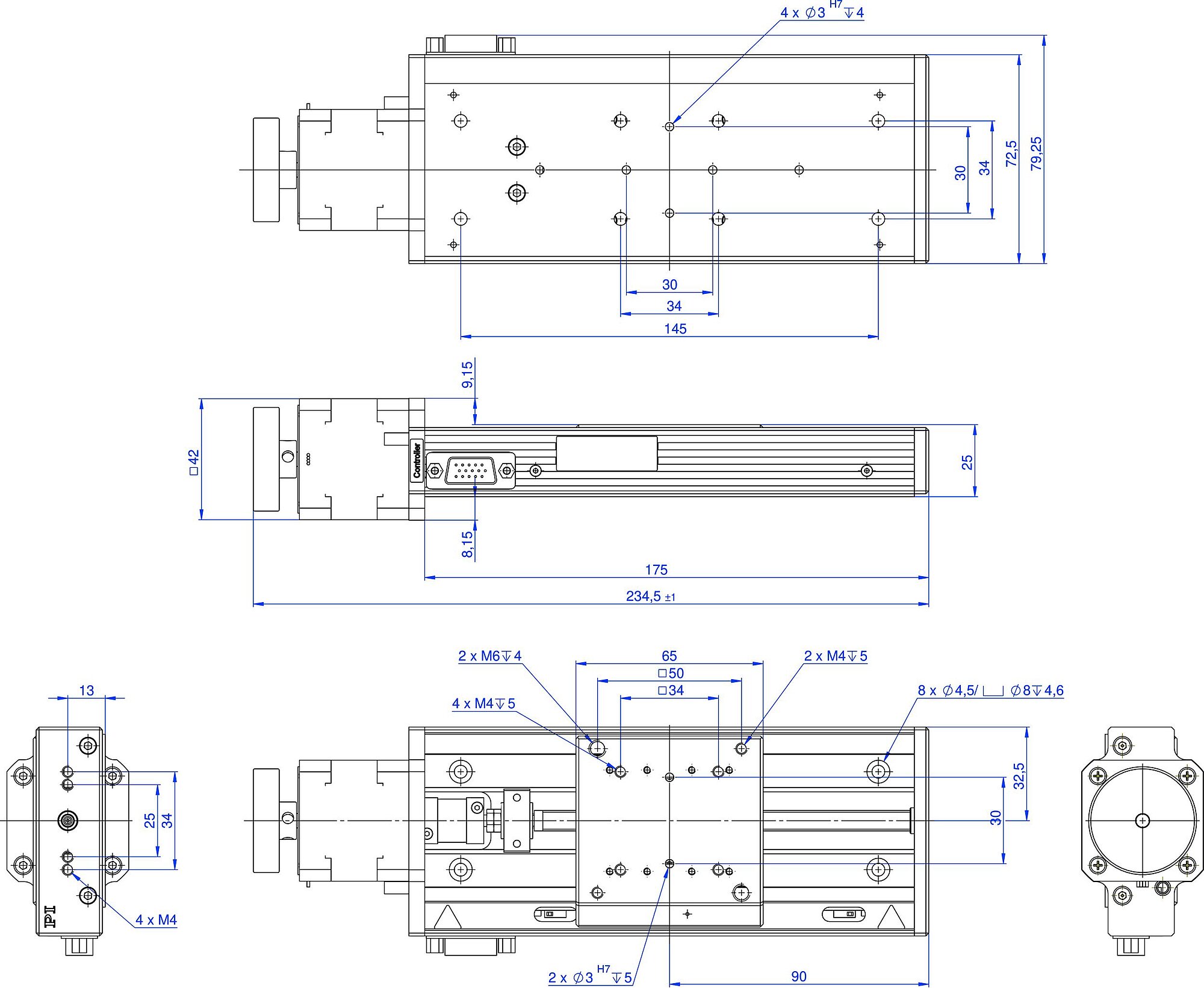

6230V64000, dimensions in mm

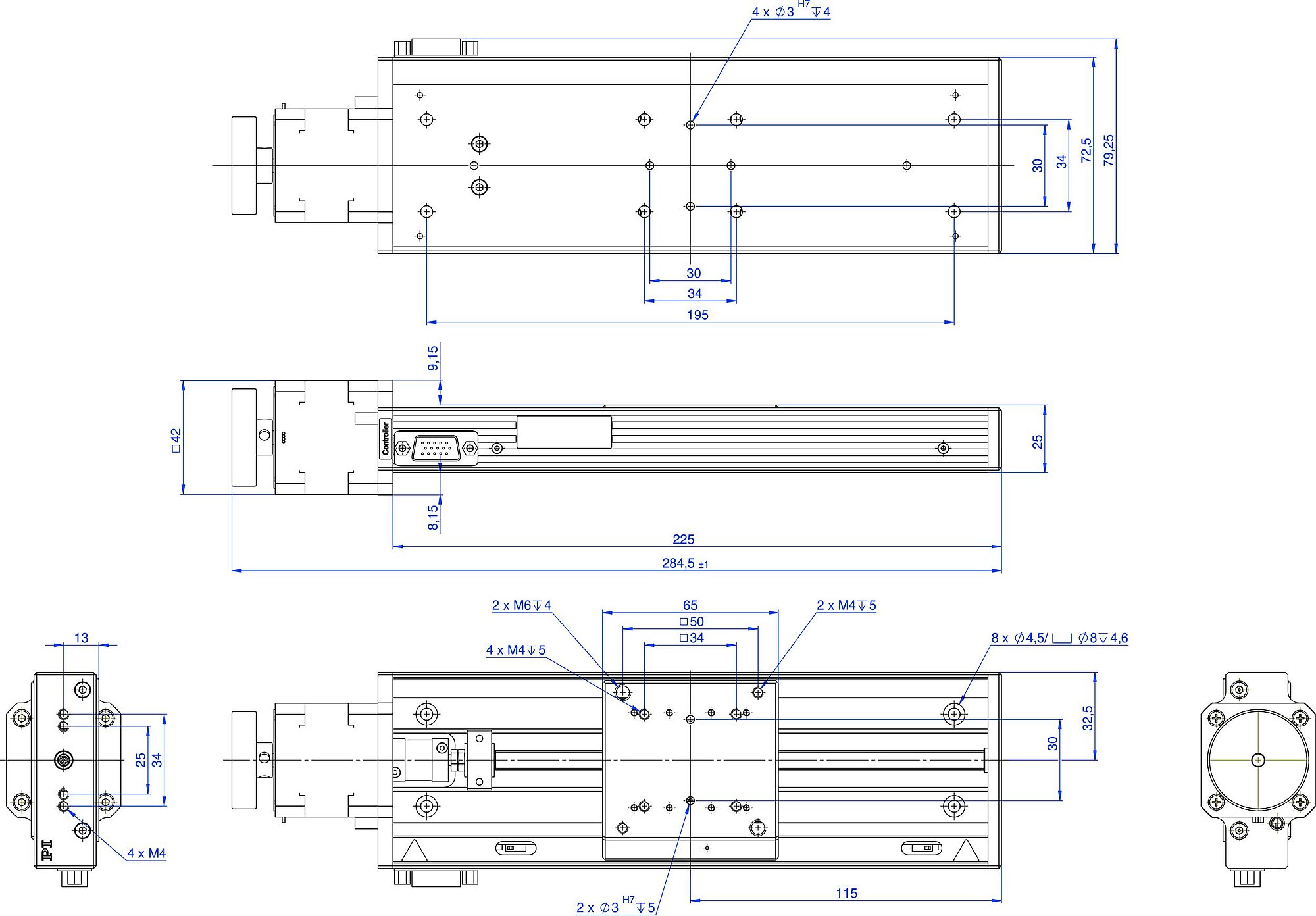

6230V65000, dimensions in mm

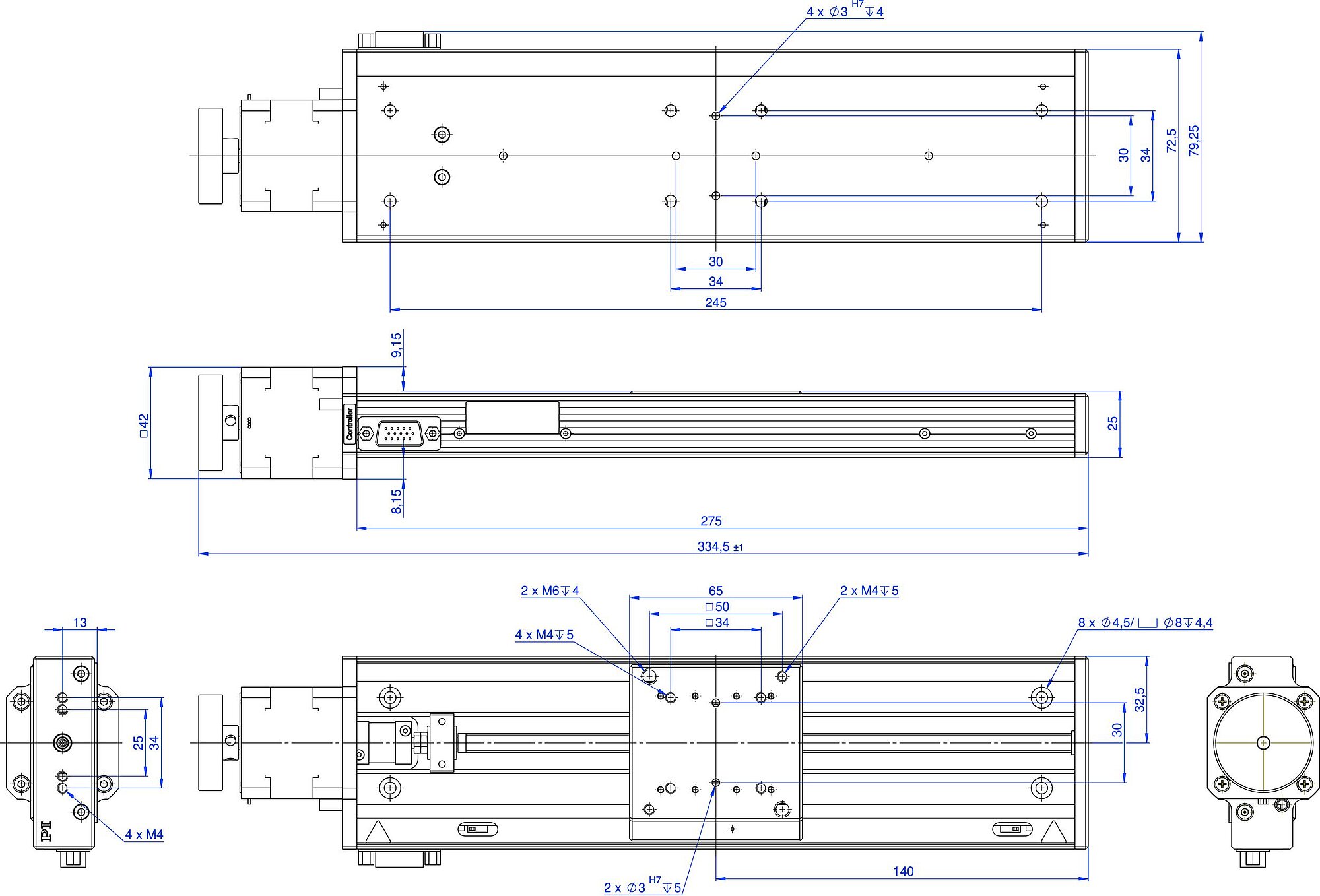

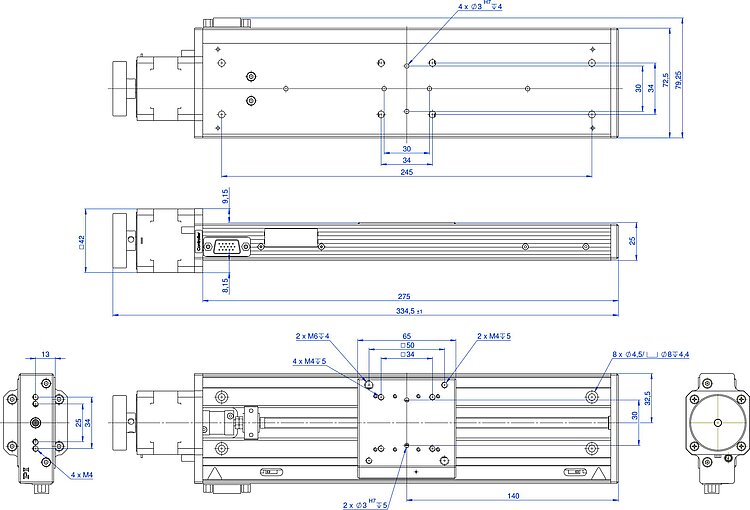

6230V66000, dimensions in mm

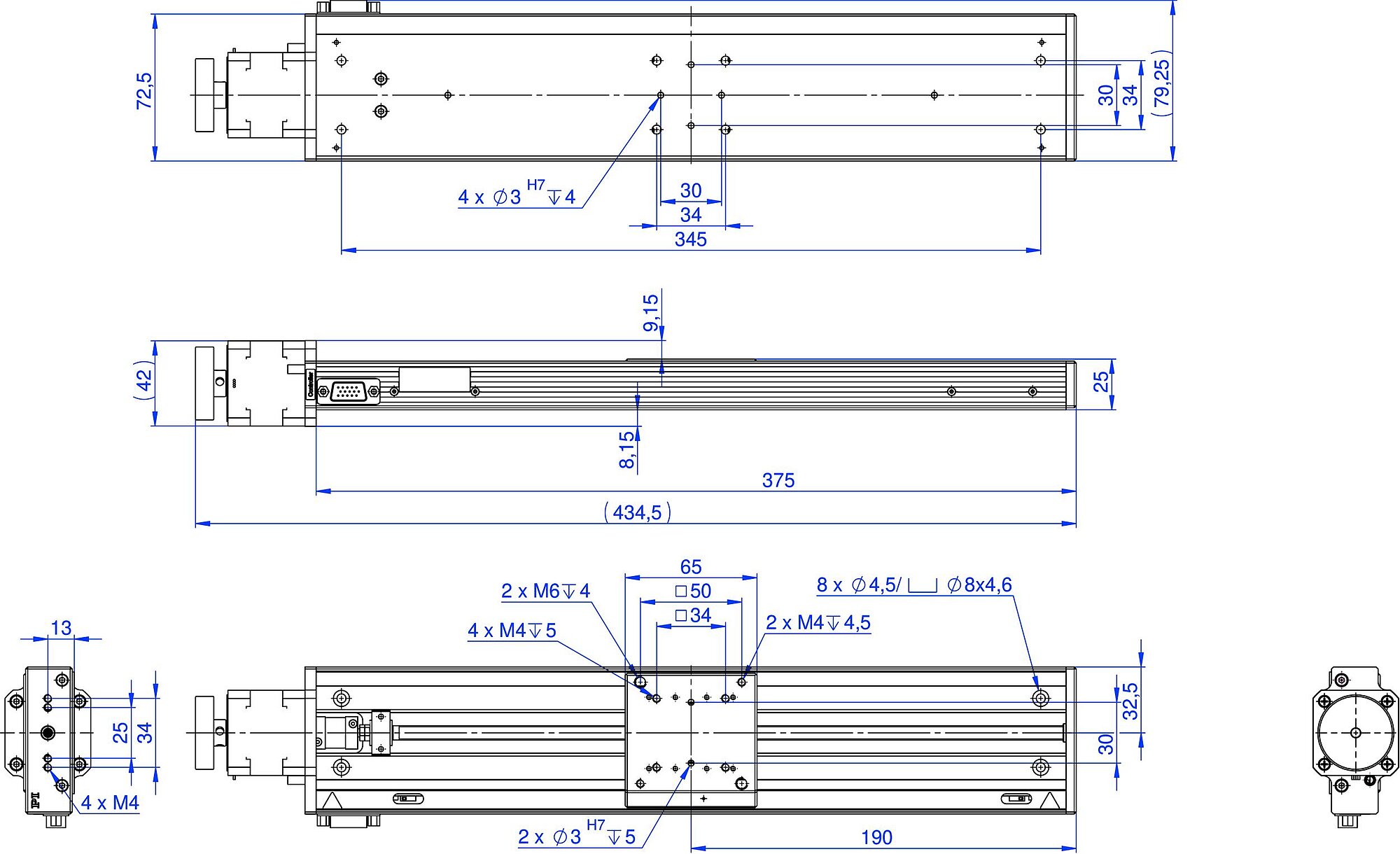

6230V68000, dimensions in mm

At the moment only a limited selection of product variants is available.

Please note that at the moment only a limited selelction of variants of this product family is available. If you require further information contact us via info@pi.ws.

Standard-class linear stage

Recirculating ball bearing guides and precision leadscrew for smooth and even feed. Stress-relieved aluminum base for high stability. Compact XY combinations. Two mechanical limit switches.

Recirculating ball bearing guides

When carefully assembled, recirculating ball bearing guides are distinguished by a beneficial combination of high load capacity, lifetime, and guiding accuracy.

Reduced outgassing especially for use in vacuum environments

Most notably, for the lubrication of the guides and the drive screw a material with particularly low outgassing is used. This allows a bakeout temperature of up to 80° C. With this and other modifications of the PI V6 vacuum class, this positioner can be used up to 10^-6hPa.

Drive

2-phase stepper motor for high torque even at low velocities and high resolution

Application fields

Vacuum chambers. Research. Beamline instrumentation. Microscopy. Electronics assembly and inspection.

Télécharger la fiche technique Aller aux spécifications Aller au devis / à la commande

Datasheet

Version / Date

2024-07-17

pdf - 5 MB

Version / Date

2024-07-17

pdf - 5 MB

Version / Date

2021-01-14

pdf - 677 KB

Télécharger

Select a travel range:

Motion	6230V61000	6230V62000	6230V64000	6230V66000	6230V68000	Tolerance
Active axes	X	X	X	X	X
Travel range in X	25 mm	50 mm	100 mm	200 mm	300 mm
Maximum velocity in X, unloaded	10 mm/s	10 mm/s	10 mm/s	10 mm/s	10 mm/s
Straightness error E_YX (straightness)	± 8 µm	± 10 µm	± 12 µm	± 20 µm	± 35 µm	typ.
Straightness error E_ZX (flatness)	± 8 µm	± 10 µm	± 12 µm	± 20 µm	± 35 µm	typ.
Angular error E_BX (pitch)	± 100 µrad	± 110 µrad	± 130 µrad	± 170 µrad	± 210 µrad	typ.
Angular error E_CX (yaw)	± 150 µrad	± 150 µrad	± 150 µrad	± 150 µrad	± 150 µrad	typ.
Positioning	6230V61000	6230V62000	6230V64000	6230V66000	6230V68000	Tolerance
Minimum incremental motion in X	0.2 µm	0.2 µm	0.2 µm	0.2 µm	0.2 µm	typ.
Unidirectional repeatability in X	± 0.2 µm	± 0.2 µm	± 0.2 µm	± 0.2 µm	± 0.2 µm	typ.
Bidirectional repeatability in X	20 µm	20 µm	20 µm	20 µm	20 µm	typ.
Limit switches	Mechanical, N/C contact, to 30 V, NPN	Mechanical, N/C contact, to 30 V, NPN	Mechanical, N/C contact, to 30 V, NPN	Mechanical, N/C contact, to 30 V, NPN	Mechanical, N/C contact, to 30 V, NPN
Drive Properties	6230V61000	6230V62000	6230V64000	6230V66000	6230V68000	Tolerance
Drive type	2-phase stepper motor	2-phase stepper motor	2-phase stepper motor	2-phase stepper motor	2-phase stepper motor
Nominal voltage	24 V	24 V	24 V	24 V	24 V
Peak voltage	48 V	48 V	48 V	48 V	48 V
Motor resolution	200 Full steps/rev.	200 Full steps/rev.	200 Full steps/rev.	200 Full steps/rev.	200 Full steps/rev.
Drive force in positive direction of motion in X	40 N	40 N	40 N	40 N	40 N	typ.
Drive force in negative direction of motion in X	40 N	40 N	40 N	40 N	40 N	typ.
Mechanical Properties	6230V61000	6230V62000	6230V64000	6230V66000	6230V68000	Tolerance
Permissible push force in Y	30 N	30 N	30 N	30 N	30 N	max.
Permissible push force in Z	50 N	50 N	50 N	50 N	50 N	max.
Permissible torque in θX	2.5 N·m	2.5 N·m	2.5 N·m	2.5 N·m	2.5 N·m	max.
Permissible torque in θY	5 N·m	5 N·m	5 N·m	5 N·m	5 N·m	max.
Permissible torque in θZ	2.5 N·m	2.5 N·m	2.5 N·m	2.5 N·m	2.5 N·m	max.
Holding force in X, passive	40 N	40 N	40 N	40 N	40 N
Moved mass in X, unloaded	160 g	160 g	170 g	180 g	180 g
Drive screw type	Metric leadscrew	Metric leadscrew	Metric leadscrew	Metric leadscrew	Metric leadscrew
Drive screw pitch	1 mm	1 mm	1 mm	1 mm	1 mm
Guide	Recirculating ball bearing guide	Recirculating ball bearing guide	Recirculating ball bearing guide	Recirculating ball bearing guide	Recirculating ball bearing guide
Overall mass	550 g	650 g	750 g	950 g	1250 g
Material	Aluminum, anodized	Aluminum, anodized	Aluminum, anodized	Aluminum, anodized	Aluminum, anodized
Miscellaneous	6230V61000	6230V62000	6230V64000	6230V66000	6230V68000	Tolerance
Operating temperature range	0 to 80 °C	0 to 80 °C	0 to 80 °C	0 to 80 °C	0 to 80 °C
Vacuum class	10⁻⁶ ǀ hPa	10⁻⁶ ǀ hPa	10⁻⁶ ǀ hPa	10⁻⁶ ǀ hPa	10⁻⁶ ǀ hPa
Maximum bakeout temperature	80 °C	80 °C	80 °C	80 °C	80 °C
Connector	HD D-sub 15 (m)	HD D-sub 15 (m)	HD D-sub 15 (m)	HD D-sub 15 (m)	HD D-sub 15 (m)
Recommended controllers / drivers	C-663.12 C-885 with C-663.12C885 ACS modular controller	C-663.12 C-885 with C-663.12C885 ACS modular controller	C-663.12 C-885 with C-663.12C885 ACS modular controller	C-663.12 C-885 with C-663.12C885 ACS modular controller	C-663.12 C-885 with C-663.12C885 ACS modular controller

At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.

Télécharger la fiche technique Aller à la zone de téléchargement Aller au devis / à la commande

Datasheet

Version / Date

2024-07-17

pdf - 5 MB

Version / Date

2024-07-17

pdf - 5 MB

Version / Date

2021-01-14

pdf - 677 KB

Télécharger

Documentation

6230V63000 Precision linear stage with stepper drive for vacuum applications (1 E-6 hPa)

Version / Date

2020-05-08

pdf - 294 KB

Anglais

Documentation

6230V61000 Precision linear stage with stepper drive for vacuum applications (1 E-6 hPa)

Version / Date

2021-10-08

pdf - 506 KB

Anglais

Documentation

Linear Stage

Version / Date

2022-06-17

pdf - 1 MB

Version / Date

2022-06-17

pdf - 1 MB

Documentation

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

Version / Date

3.0.0 2024-01-15

pdf - 261 KB

Version / Date

3.0.0 2024-01-15

pdf - 295 KB

Télécharger

3D Models

Version / Date

2021-03-26

zip - 4 MB

Anglais

Aller au devis / à la commande

At the moment only a limited selection of product variants is available.

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

6230V61000

Vacuum-compatible linear stage; 2-phase stepper motor; 25 mm travel range; 50 N load capacity; 10 mm/s maximum velocity; metric leadscrew; vacuum compatible to 10^-6 hPa
