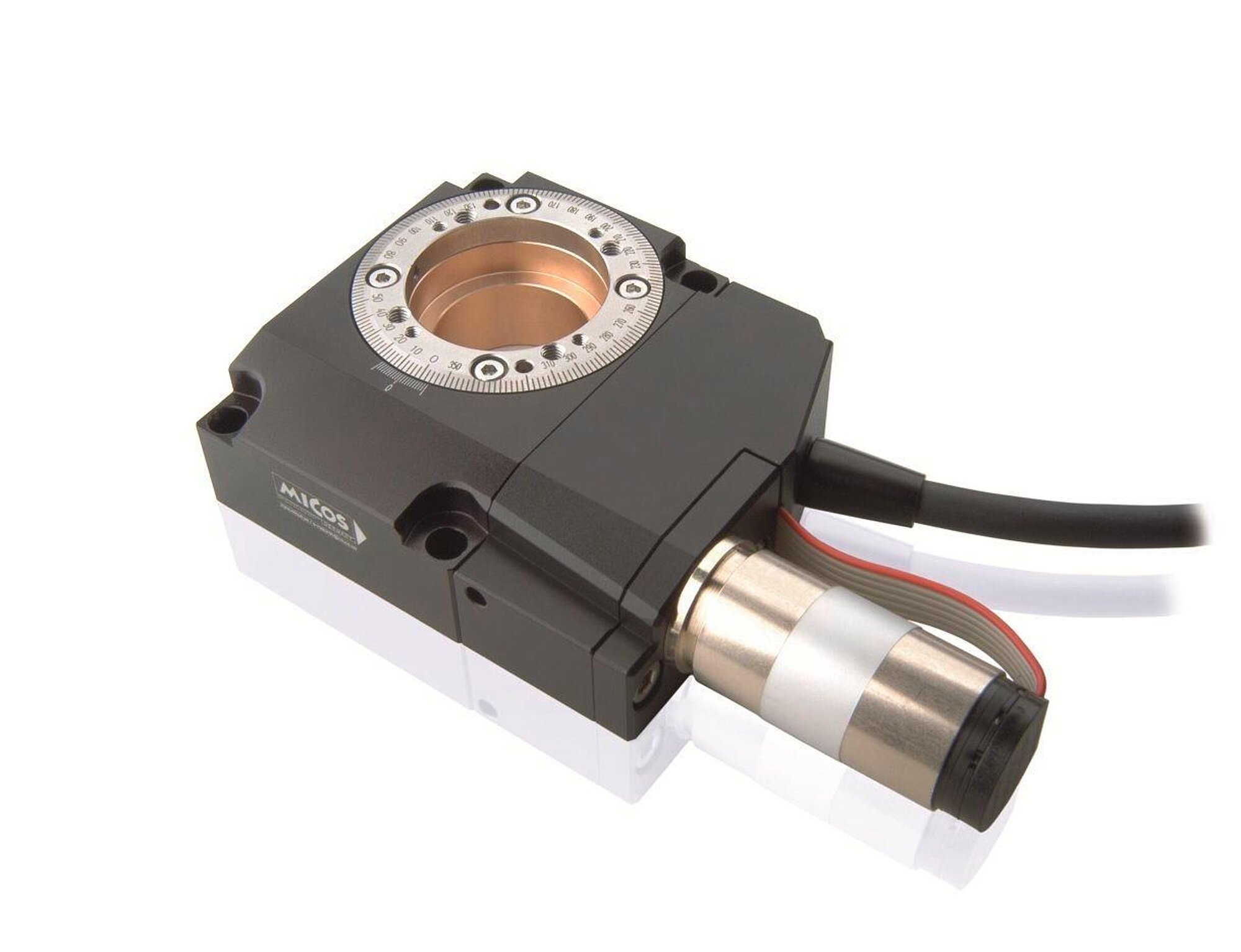

RS-40 V7 Compact Rotation Stage Suitable for Vacuum

Precision Positioning

Vacuum compatible up to 10^-7 hPa
Unlimited travel range
Repeatability to 87 µrad
20 mm Ø aperture
Reference switch

Aller au devis / à la commande

Direction of the axes and torques for rotation stages

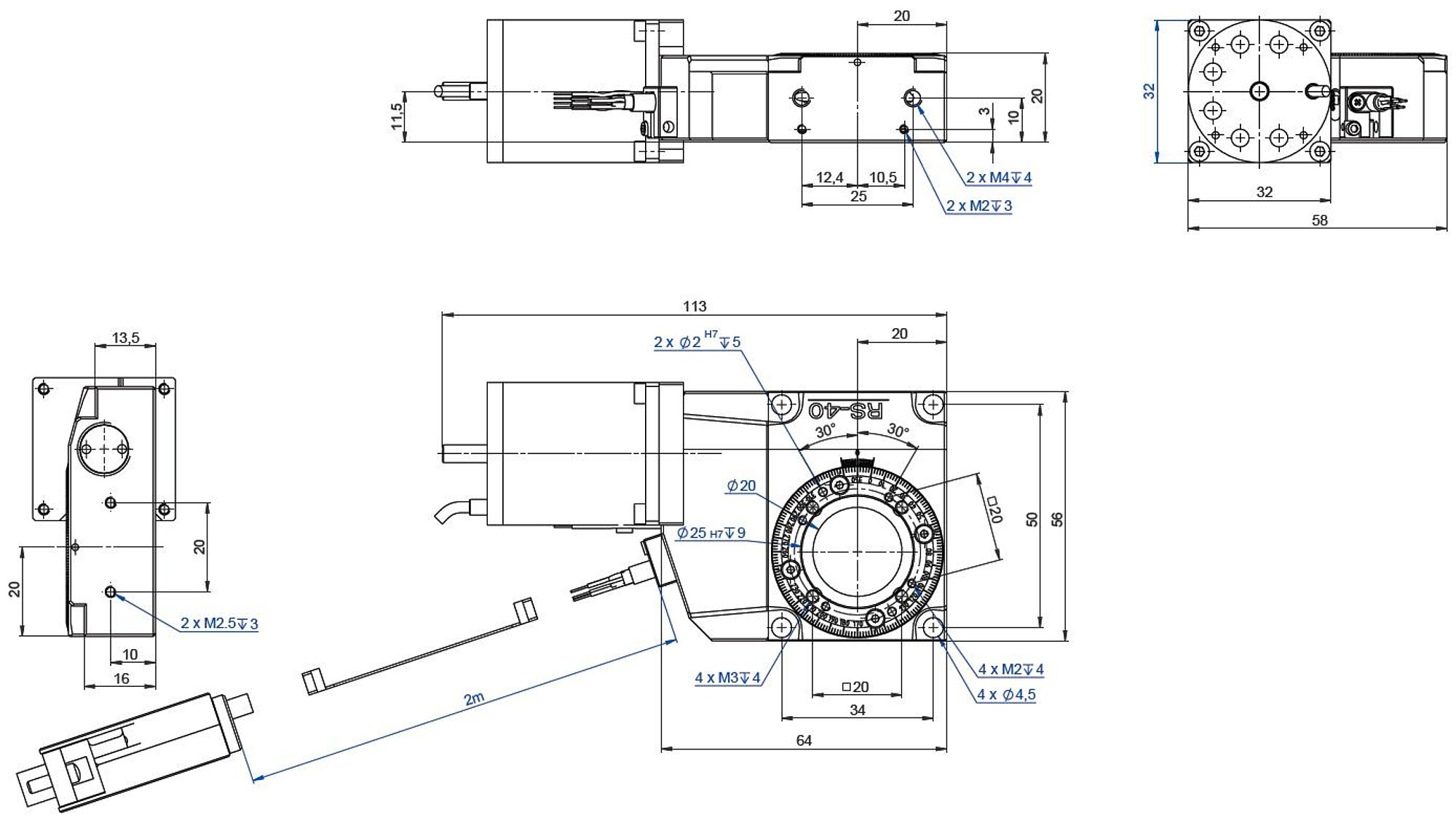

RS-40 rotation stage, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

Standard-class rotation stage

Worm drive. Aperture with 20 mm Ø. Reference switch.

Reduced outgassing especially for use in vacuum environments

Most notably, for the lubrication of the guides and the spindle a material with particularly low outgassing is used. This allows a bakeout temperature of up to 80° C.

Higher quality for applications in high vacuum

In this case, special components suitable for high vacuum are used, such as motor, measuring system, and limit switches. In addition, the surface is made of uncoated aluminum and the spindles and guides are made of stainless steel. With this, the PI V7 vacuum class is reached, which means up to 10^-7 hPa.

Drive

Stepper motor with gearhead.

Application fields

Vacuum chambers. Research. Beamline instrumentation. Microscopy. Electronics assembly and inspection.

Télécharger la fiche technique Aller aux spécifications Aller au devis / à la commande

Datasheet

Version / Date

2024-07-17

pdf - 387 KB

Version / Date

2024-07-17

pdf - 391 KB

Version / Date

2021-01-14

pdf - 436 KB

Télécharger

Motion	3216V21000	Tolerance
Active axes	θZ
Rotation range in θZ	360 °
Maximum angular velocity in θZ, unloaded	20 °/s
Radial error E_XC	± 5 µm	typ.
Axial error E_ZC	± 5 µm	typ.
Tilt error E_AC (wobble)	± 35 µrad	typ.
Positioning	3216V21000	Tolerance
Minimum incremental motion in θZ	87 µrad	typ.
Unidirectional repeatability in θZ	± 43.5 µrad	typ.
Bidirectional repeatability in θZ	1400 µrad	typ.
Reference switch	Hall effect, N/C contact, 3.8 V to 24 V, NPN
Drive Properties	3216V21000	Tolerance
Drive type	2-phase stepper motor
Nominal voltage	24 V
Peak voltage	48 V
Motor resolution	200 Full steps/rev.
Drive torque clockwise in θZ	0.2 N·m	max.
Drive torque counterclockwise in θZ	0.2 N·m	max.
Mechanical Properties	3216V21000	Tolerance
Permissible push force in Y	5 N	max.
Permissible push force in Z	20 N	max.
Permissible torque in θX	2 N·m	max.
Permissible torque in θY	2 N·m	max.
Holding torque in θZ, passive	0.2 N·m
Moment of inertia in θZ, unloaded	15.5 kg·mm²	±20 %
Moved mass in X, unloaded	90 g
Worm gear reduction	90 : 1
Bearing type	Ball bearings
Overall mass	400 g
Material	Aluminum, stainless steel, red bronze
Miscellaneous	3216V21000	Tolerance
Operating temperature range	5 to 40 °C
Vacuum class	10⁻⁷ ǀ hPa
Connector	D-sub 15 (f)
Cable length	2 m
Recommended controllers / drivers	C-663.12 C-885 with C-663.12C885 ACS modular controller

Note on cable length: Fixed cable, firmly attached to the product

At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.

Télécharger la fiche technique Aller à la zone de téléchargement Aller au devis / à la commande

Datasheet

Version / Date

2024-07-17

pdf - 387 KB

Version / Date

2024-07-17

pdf - 391 KB

Version / Date

2021-01-14

pdf - 436 KB

Télécharger

Documentation

Compact Rotation Stage

Version / Date

2022-05-03

pdf - 655 KB

Version / Date

2022-05-03

pdf - 567 KB

Documentation

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

Version / Date

3.0.0 2024-01-15

pdf - 261 KB

Version / Date

3.0.0 2024-01-15

pdf - 295 KB

Télécharger

3D Models

Version / Date

2020-03-30

zip - 4 MB

Anglais

Aller au devis / à la commande

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

3216V21000

Vacuum-compatible compact rotation stage; 2-phase stepper motor; 360 ° rotational angle; 10 N load capacity; 20 °/s maximum angular velocity; vacuum compatible to 10⁻⁷ hPa; 2 m cable length

Add to quote list Remove from quote list

Ask for custom design Go to quote list
