Stages with Magnetic Direct-Drive Linear Motor

The friction-free magnetic direct drive principle allows for most dynamic stages. Compared with motor-spindle-based stages, they use fewer mechanical components which results in less friction and backlash and thus more precision.

PI’s PIglide stages combine the magnetic direct drive with highly precise preloaded air bearings for even better performance.

With Mechanical Bearing

NOUVEAU

V-417.E1XYHxx Drag Chain for V-41x Positioners

Cable Management for XY Assemblies Consisting of V-412 and V-417 Linear Stages
NOUVEAU

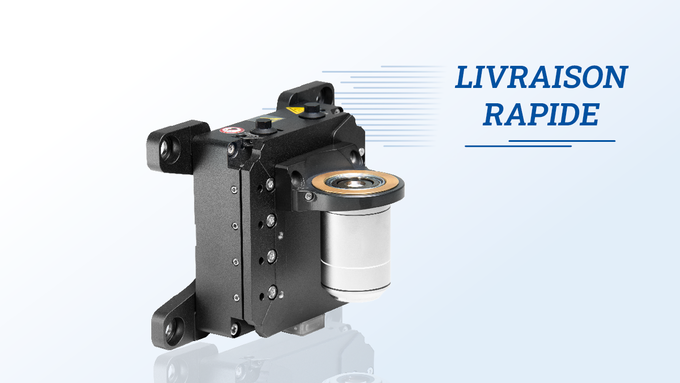

V-308 Voice Coil PIFOC Focus Drive for Objectives

High-dynamics positioner for microscope objectives
NOUVEAU

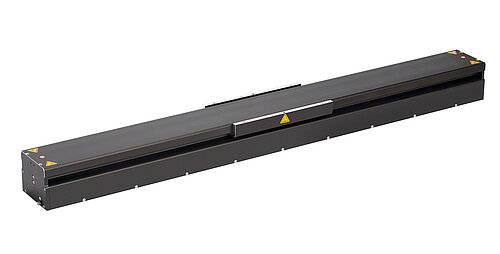

V-857 High-Speed Linear Stage

High Load Capacity • Cost Effective • Linear Motor
NOUVEAU

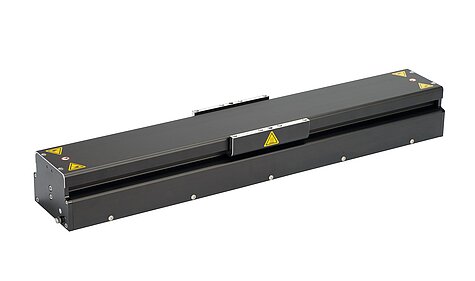

V-855 High-Speed Linear Stage

High Load Capacity • Cost Effective • Linear Motor
NOUVEAU

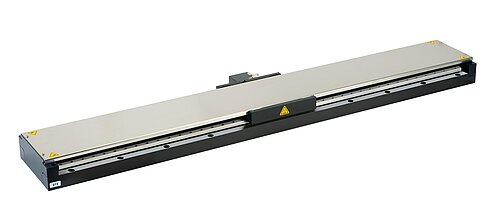

V-817 High-Load Linear Stage

High Performance • Linear Motor • Cost Effective • Fast Delivery

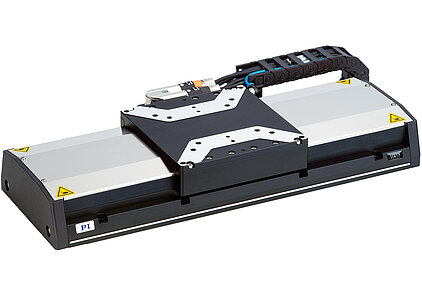

V-417 High-Load Linear Stage

High Performance, Linear Motor

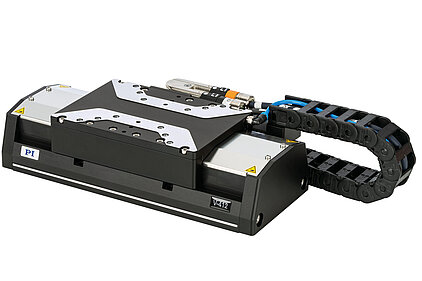

V-412 High-Load Linear Stage

High Performance, Linear Motor

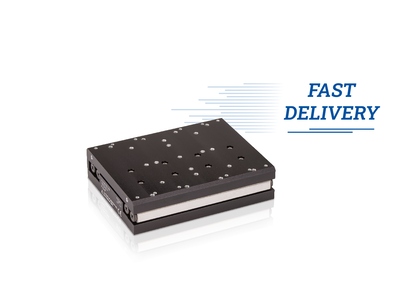

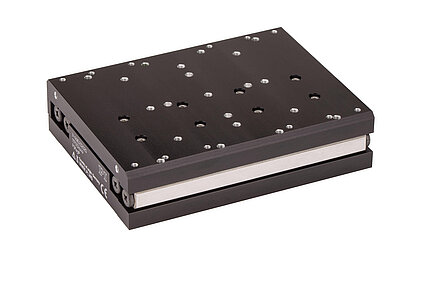

V-408 PIMag® Linear Stage

Inexpensive, with Linear Motor

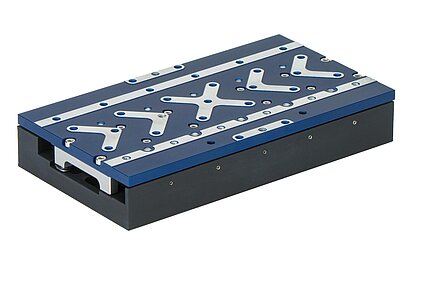

V-508 High-Precision, Low-Profile Linear Motor Translation Stage

Nanopositioning Performance and High Speed in a Compact, Affordable Stage Design

V-522 • V-524 • V-528 PIMag® High Dynamics Linear Stage

Voice Coil Direct Drive with Direct Position Measuring

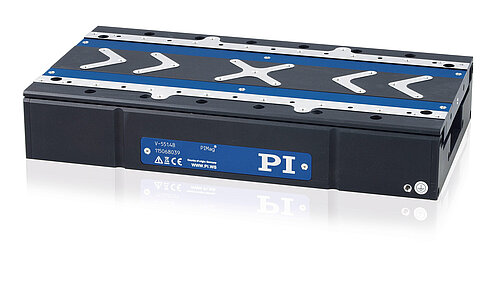

V-551 Precision Linear Stage

High Velocity and Precision due to Magnetic Direct Drive

LMS-270 Precision Linear Stage

High Dynamics due to the Magnetic Direct Drive, High Stability

LMS-180 Precision Linear Stage

High Dynamics due to Magnetic Direct Drive, Excellent Travel Accuracy

PIMag®

PI has many standard and customer-specific positioning solutions on offer that are equipped with magnetic direct drives; the company has also many years of experience in the design, construction, and manufacture of the necessary system components such as guides, sensors, control technology, and software. PI can also develop proprietary magnetic motors if positioning systems need to achieve specific performance characteristics that cannot be reached by using drive components currently available on the market, for example, to achieve a high force density or a compact design. These >> proprietary motors, developed in-house, are identified by the PIMag® brand name.


With Air Bearing

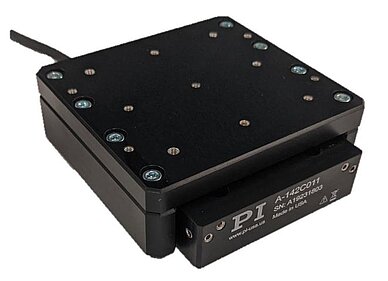

A-142 Miniature Air Bearing Linear Stage
NOUVEAU

A-142 PIglide Voice Coil Linear Stage with Air Bearings

High Performance • Cleanroom-Compatible • Option for Vertical Mounting
  • High performance
  • Possible vertical mounting
  • Motion platform 75mm × 80mm
  • Travel ranges up to 10mm
  • Acceleration up to 20 m/s

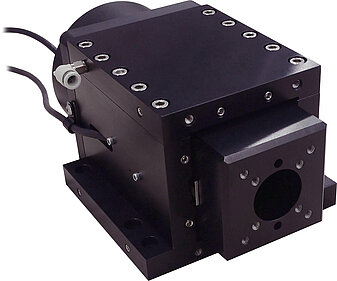

A-131 PIglide VC Voice Coil Linear Stage with Air Bearings

High-Performance Miniature Nanopositioning System
  • Miniature nanopositioning system
  • Clean room compatible
  • Travel ranges up to 25mm
  • Load capacity up to 30N
  • Acceleration up to 40m/s

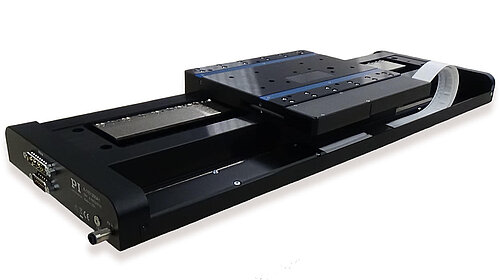

A-110 PIglide LC Linear Stage with Air Bearings

Inexpensive High Performance Nanopositioning Stage
  • High precision positioning
  • Inexpensive &amp
  • clean room compatible
  • Motion platform 160mm × 200mm
  • Travel ranges up to 400mm
  • Load capacity up to 100N

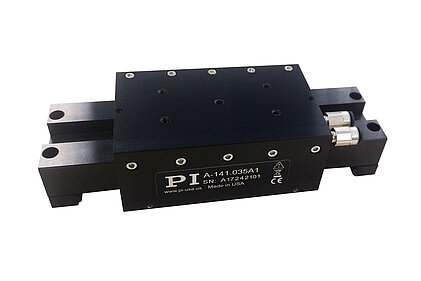

A-141 PIglide MB Miniature Linear Stage with Air Bearings

High Performance, Cleanroom Compatible, Customizable
  • High performance
  • Clean room compatible
  • Motion platform 57mm × 93mm
  • Travel ranges up to 35mm
  • Acceleration up to 3,5m/s

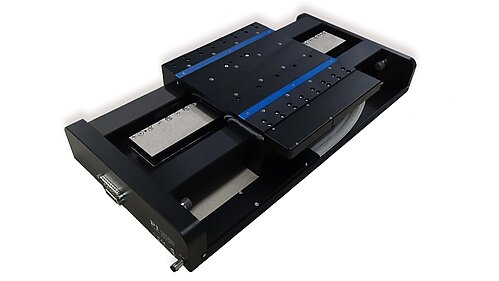

A-123 PIglide AT3 Linear Stage with Air Bearings

High Performance Nanopositioning Stage
  • High performance nanopositioning stage
  • Clean room compatible
  • Motion platform 210mm × 210mm
  • Travel ranges 50mm to 750mm
  • Resolution up to 1 nm

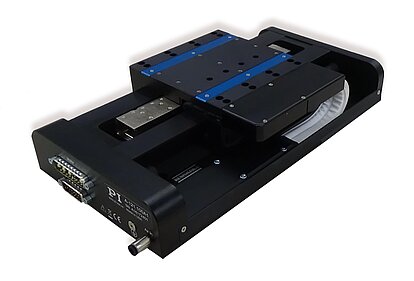

A-121 PIglide AT1 Linear Stage with Air Bearings

High Performance Small Footprint Nanopositioning Stage
  • High performance nanopositioning stage
  • small design
  • Motion platform 115mm × 115mm
  • Travel ranges up to 350mm
  • Resolution up to 1nm
