M-545.2MO
XY stage, 25 mm × 25 mm, micrometer screw, high stability, compatible with PI piezo stages, for Olympus microscopes (IX2, IX3)
M-545 Microscope XY Stage
Compact, Stable, Long Travel Range
- Stable platform for P-545 PInano® piezo nanopositioning systems
- Low profile for easy integration: 30 mm
- Travel range 25 mm × 25 mm
- Manual operation with micrometer screws, optional motorization
- For inverted microscopes from Nikon, Zeiss, Leica, and Olympus

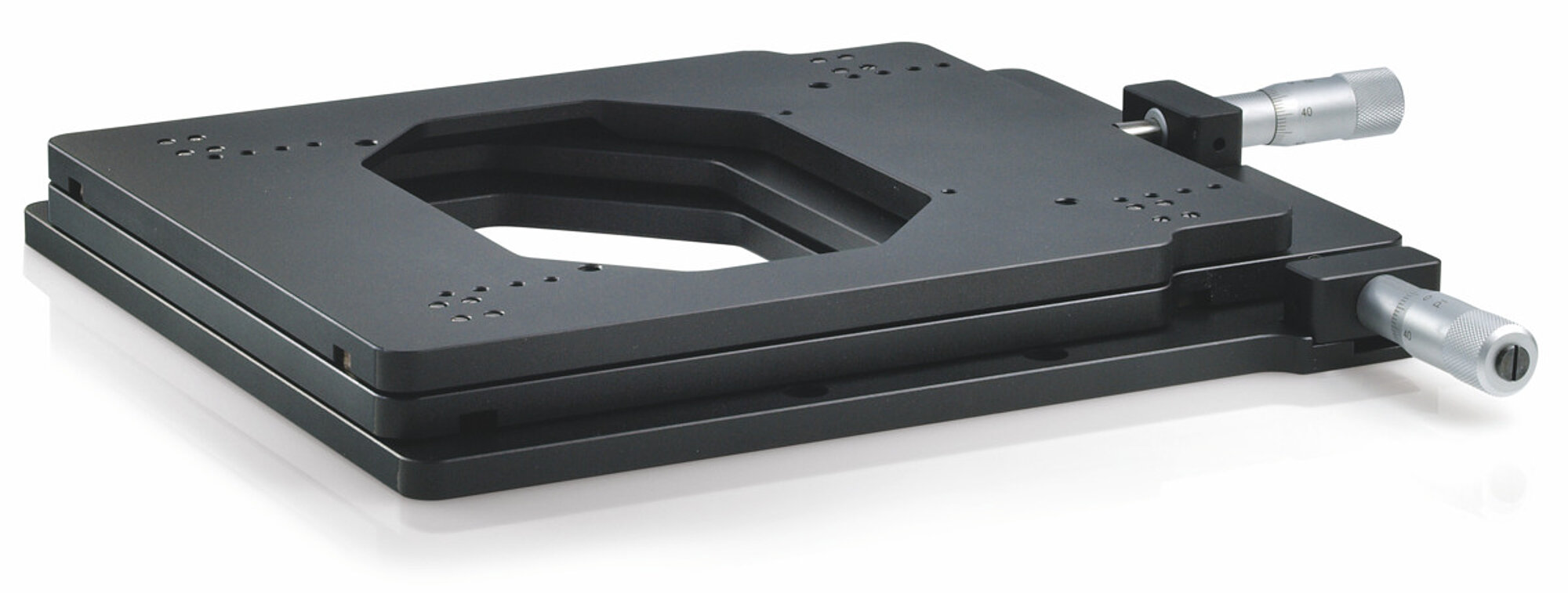

M-545 microscope XY stage

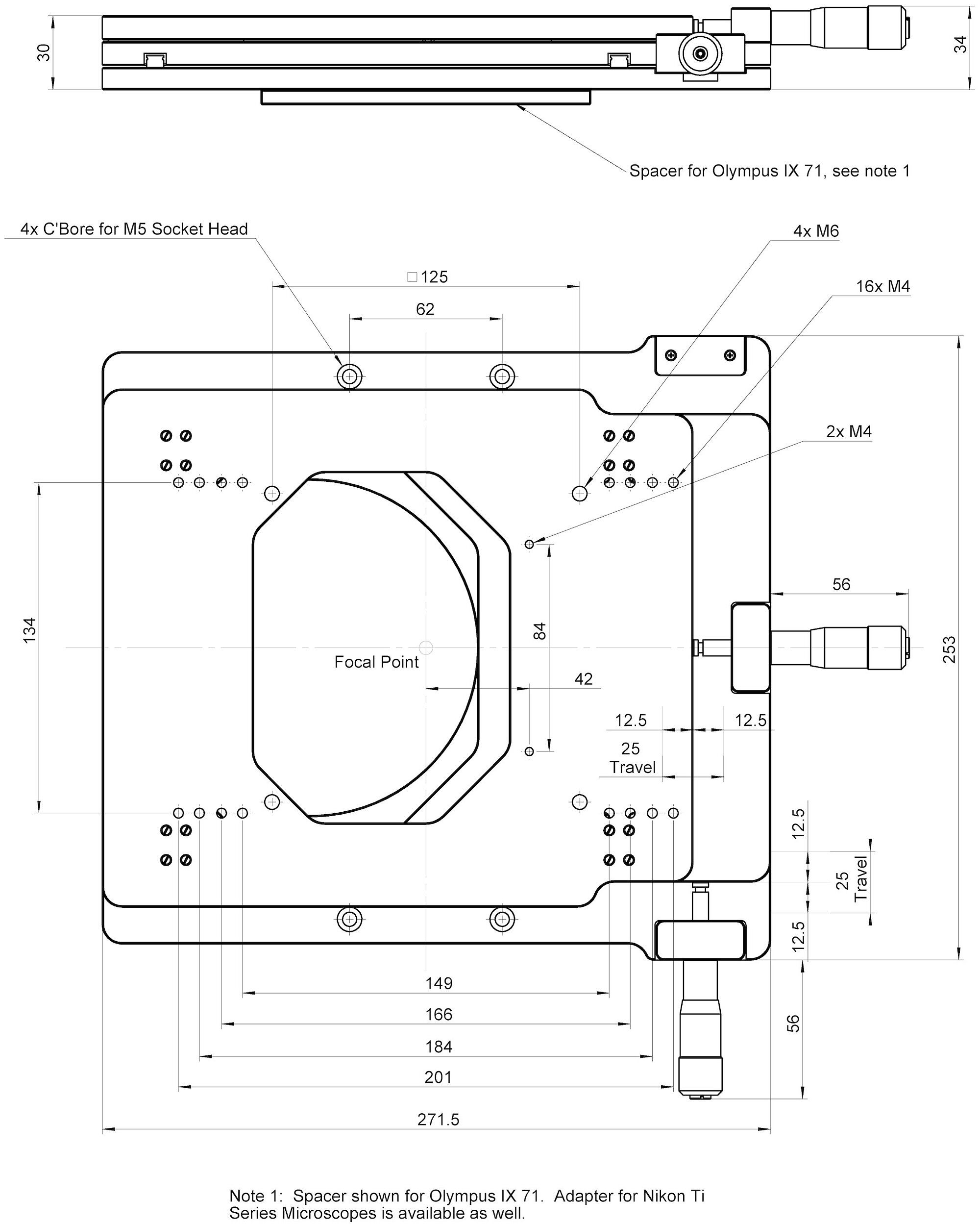

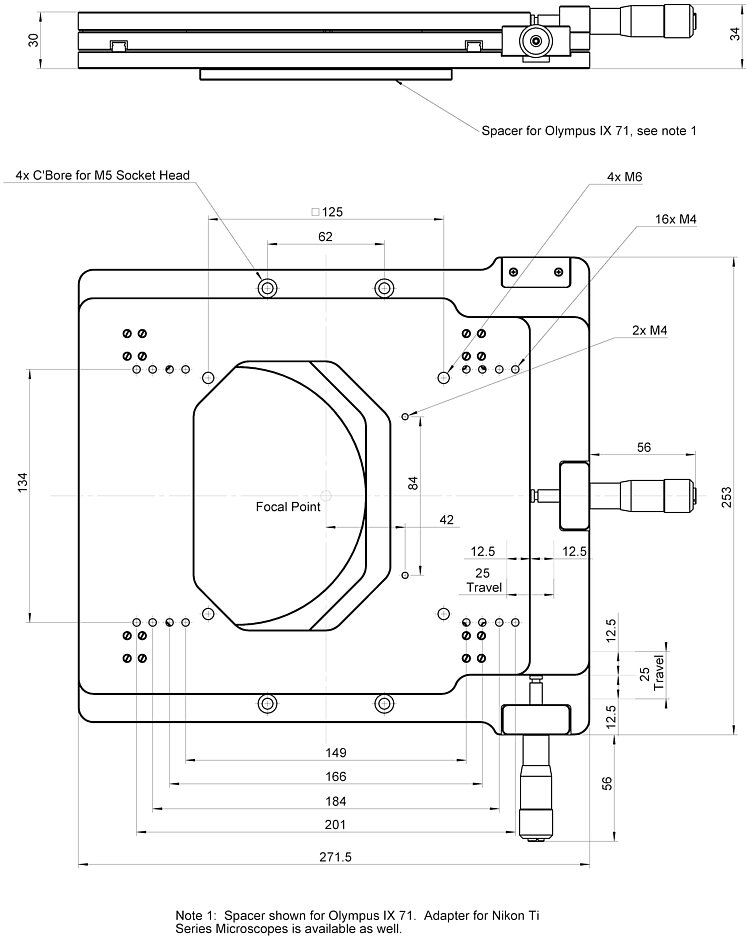

M-545.2MO and M-545.2MN: dimensions in mm. Delivery includes holders for Olympus respectively Nikon microscopes.

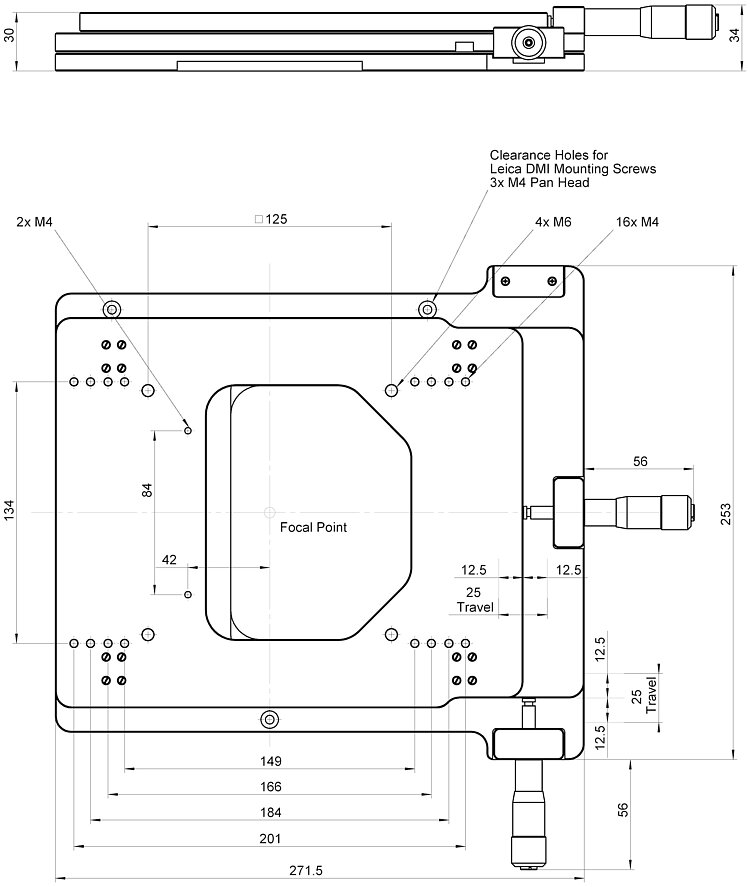

M-545.2ML: dimensions in mm

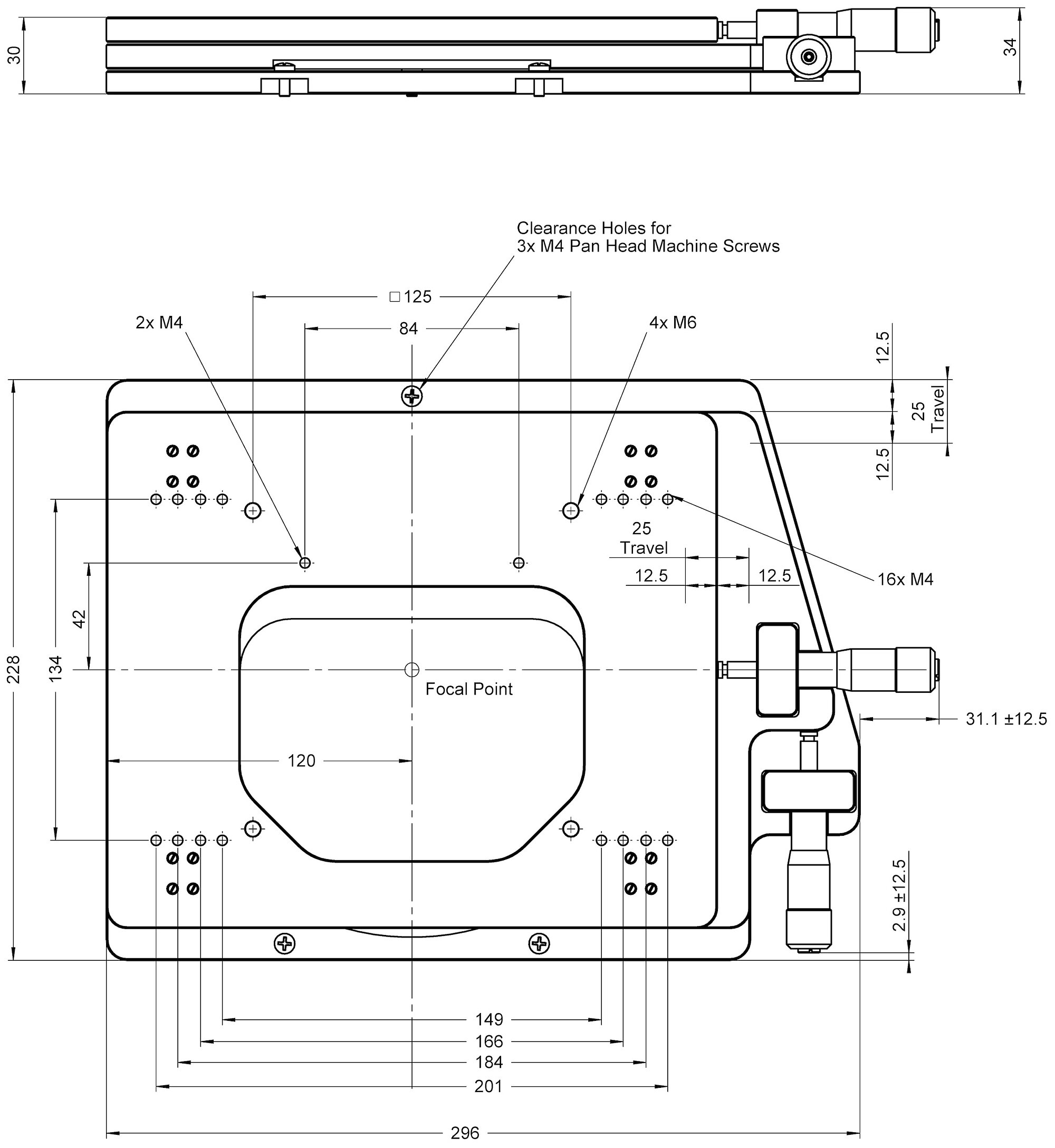

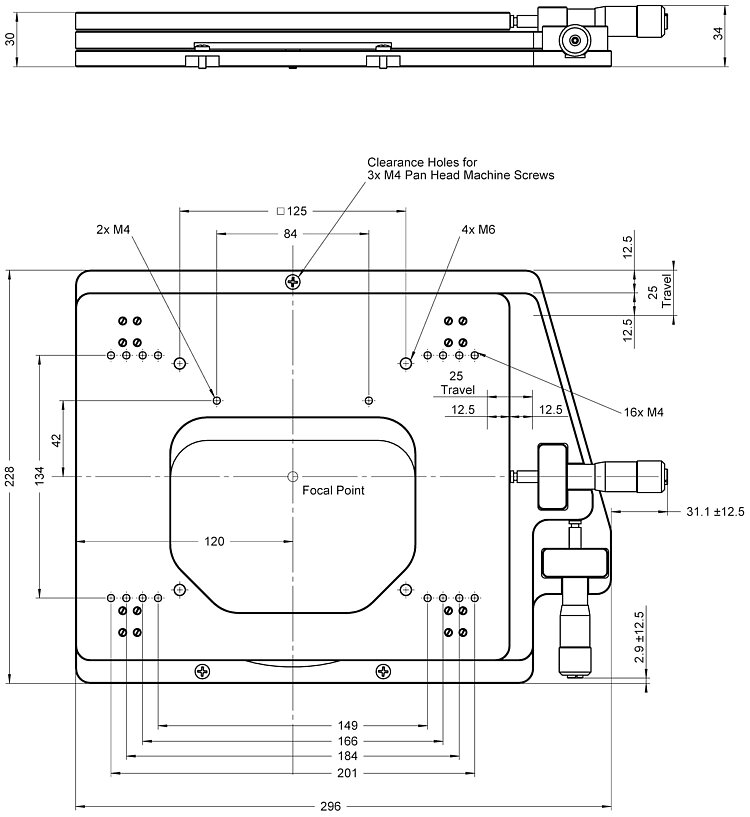

M-545.2MZ: dimensions in mm

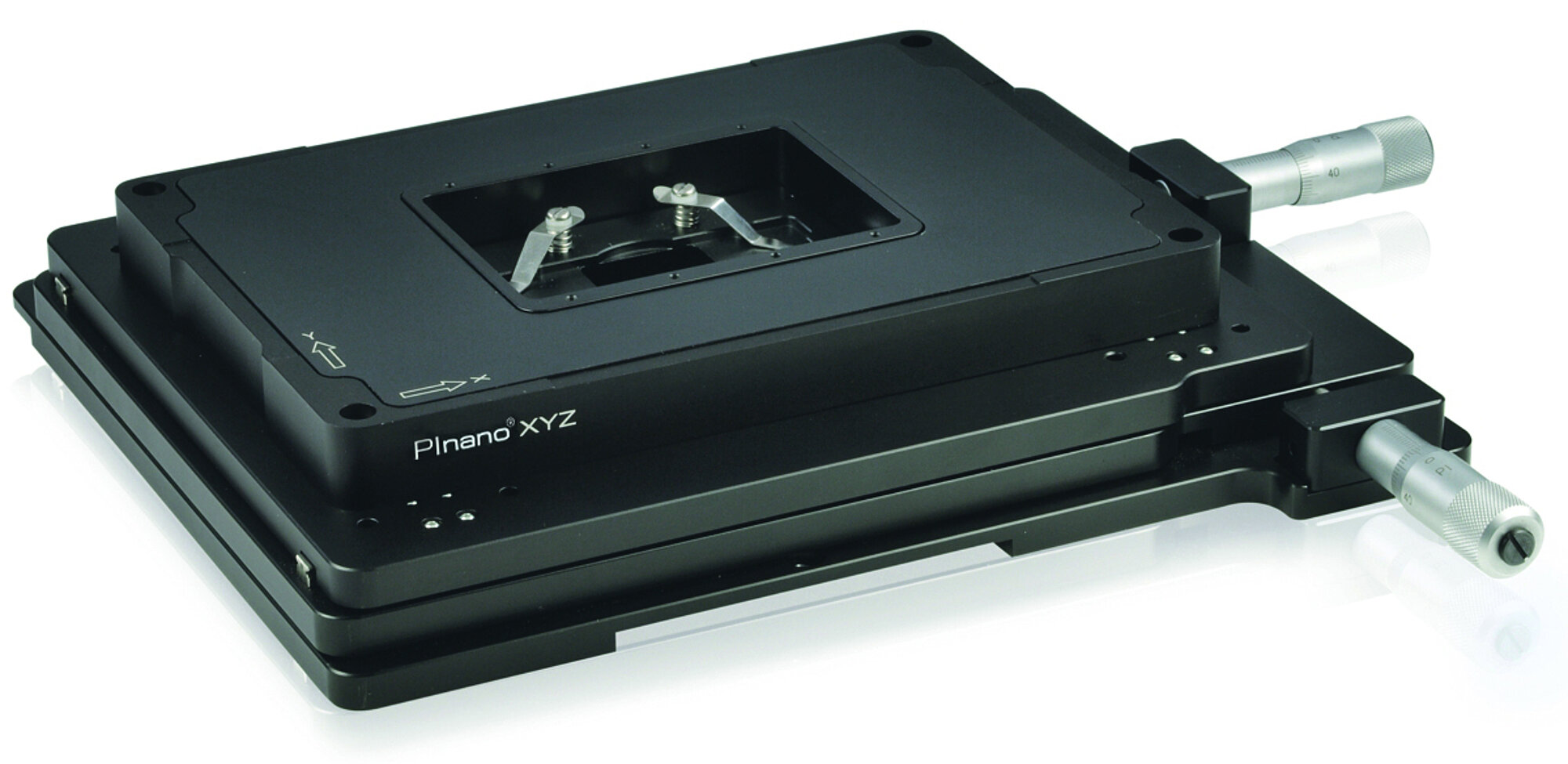

P-545 PInano® piezo positioner on M-545 XY stage
M-545 Microscope XY Stage
Description du produit
Spécifications
Téléchargements
Devis / Commande
Standard-class, manual microscope XY stage
Rough adjusting for piezo nanopositioners from PI as well as manual positioning of specimen holders. Supports optimum scanning and settling behavior.
Micrometer screw or stepper motor drive
The M-545 XY stage can also be equipped with drives from the M-229 series (all models except M-545.2MZ). Complete packages with two stepper motor drives, matching controller, and joystick, are available under the product numbers M-545.USG respectively M-545.USC.
Suitable for microscopes from a large number of manufacturers
For inverted microscopes from Nikon (TI), Zeiss (Axio Observer), Leica (DMI), and Olympus (IX2, IX3). Versions for other microscopes on request.
Can be combined with numerous PI nanopositioners
It is possible to mount piezo nanopositioners from the P-545 PInano® and P-541 / P-542 series onto the platform of the M-545. Adapter plates from PI are available for combining with other piezo nanopositioners.
Specifications
Datasheet
Datasheet M-545
Version / Date
2019-02-12
pdf - 1 MB
Version / Date
2019-02-12
pdf - 1 MB
Version / Date
2019-09-12
pdf - 1,016 KB
Specifications
| M-545.2M | Unit | Tolerance |
|---|---|---|---|
Active axes | X, Y | ||
Motion and positioning | |||
Travel range | 25 mm × 25 mm | ||
Minimum incremental motion | 1 | µm | typ. |
Minimum incremental motion with M-229 linear actuators* | 1 | µm | typ. |
Velocity with M-229 linear actuators* | 1.5 | mm/s | max. |
Mechanical properties | |||
Load capacity | 50 | N | max. |
Preload | 10 | N | |
Miscellaneous | |||
Material | Aluminum, stainless steel | ||
Mass | 4 | kg | ±5 % |
* Optional (for all models except M-545.2MZ)
Ask about customized versions.
Downloads
Datasheet
Datasheet
Datasheet M-545
Version / Date
2019-02-12
pdf - 1 MB
Version / Date
2019-02-12
pdf - 1 MB
Version / Date
2019-09-12
pdf - 1,016 KB
Documentation
Documentation
Installation Instructions M545T0001
M-545.USG / M-545.USC Drive Set for M-545 XY Stage
Version / Date
2020-02-10
pdf - 642 KB
Anglais
Documentation
Short Instructions MP119EK
Positioners with Electric Motors: M-06x, M-11x, M-12x, M-4xx, M-5xx
Version / Date
3.2.0 01/2021
pdf - 1 MB
Version / Date
3.2.0 01/2021
pdf - 1 MB
Documentation
User Manual PZA02
M-545 Series Microscope Stages
Version / Date
3.2.0 2020-03-04
pdf - 3 MB
Anglais
3-D Models
3-D Models
M-545 3-D model
Version / Date
2020-01-15
zip - 2 MB
Brochure
Brochure
Microscope Stage Configurator
Sample Stages and Holders for Inverted Microscopes
Version / Date
BRO70E R3D
pdf - 4 MB
Anglais
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
M-545.2MN
XY stage, 25 mm × 25 mm, micrometer screw, high stability, compatible with PI piezo stages, for Nikon microscopes (TI series)
M-545.2ML
XY stage, 25 mm × 25 mm, micrometer screw, high stability, compatible with PI piezo stages, for Leica microscopes (DMI series)
M-545.2MZ
XY stage, 25 mm × 25 mm, micrometer screw, high stability, compatible with PI piezo stages, for Zeiss microscopes (Axio Observer)
Accessories
Specimen holders
P-545.SH3
Microscope slide holder for PInano® piezo stages
P-545.PD3
Petri dish holder, 35 mm, for PInano® piezo stages
P-545.PP3
Universal holding plate for accessory for PInano® piezo stages
Adapter plates
M-545.SHP
Adapter plate for microscope sample holder for M-545 XY stage
P-733.AP1
Adapter plate for mounting P-733 piezo stages onto M-545 XY stages
P-736.AP1
Adapter plate for mounting P-736.ZRx PInano® Z piezo scanners onto M-545 XY stages
Stepper motor drive sets (optional; for all models except M-545.2MZ)
M-545.USC
Drive set for M-545 XY stage: Includes stepper motor linear actuators, controller and joystick
M-545.USG
Drive set for M-545 XY stage: Includes stepper motor linear actuators
