P-007.00

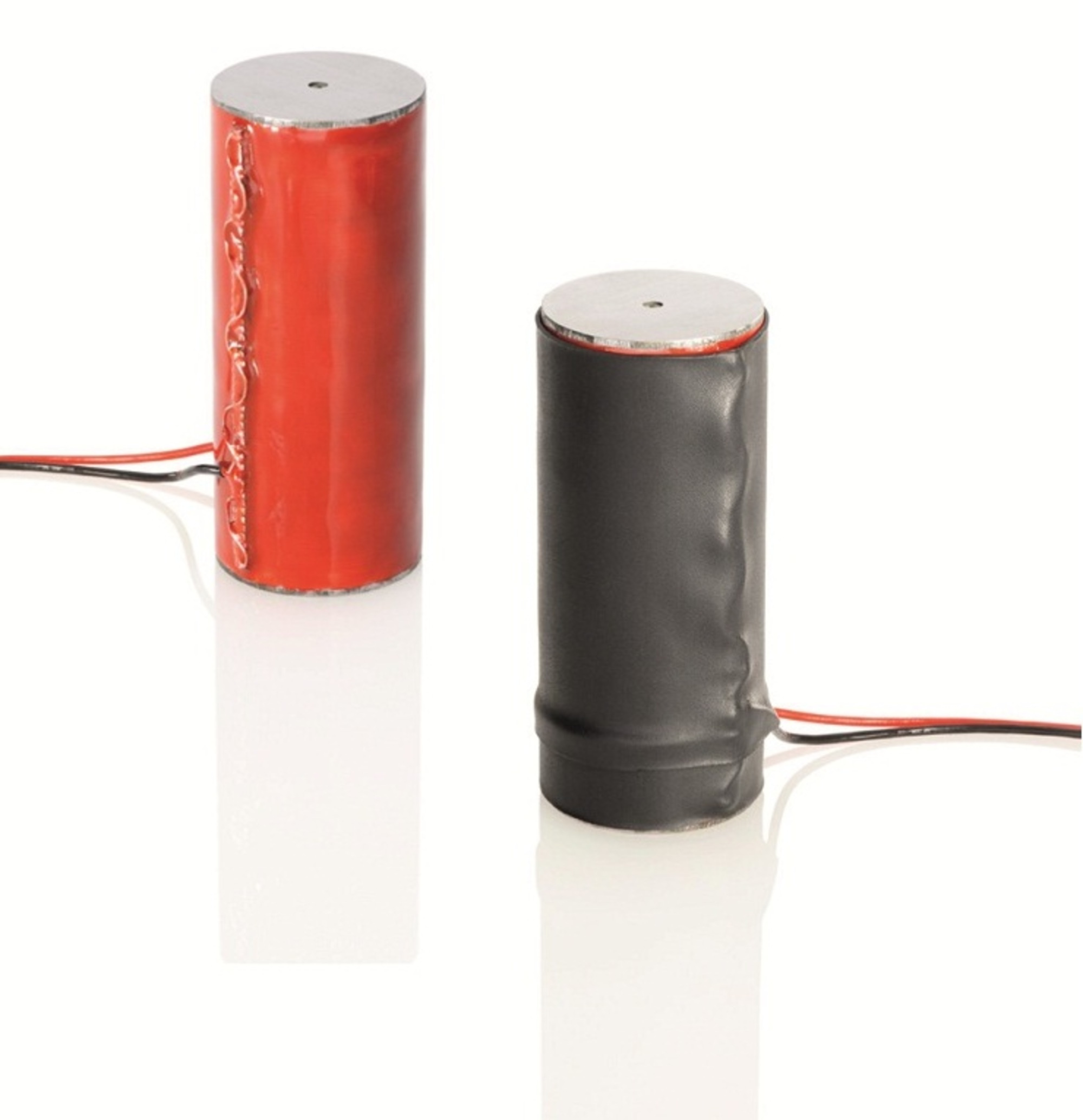

PICA Stack piezo actuator, 5 µm travel range, OD 7 mm × L 8 mm
PICA Stack Piezo Actuators
High Forces, High Displacement, Flexible Production
- Travel ranges to 300 µm
- High load capacity
- Force generation up to 80 kN
- Extreme reliability: >109 cycles

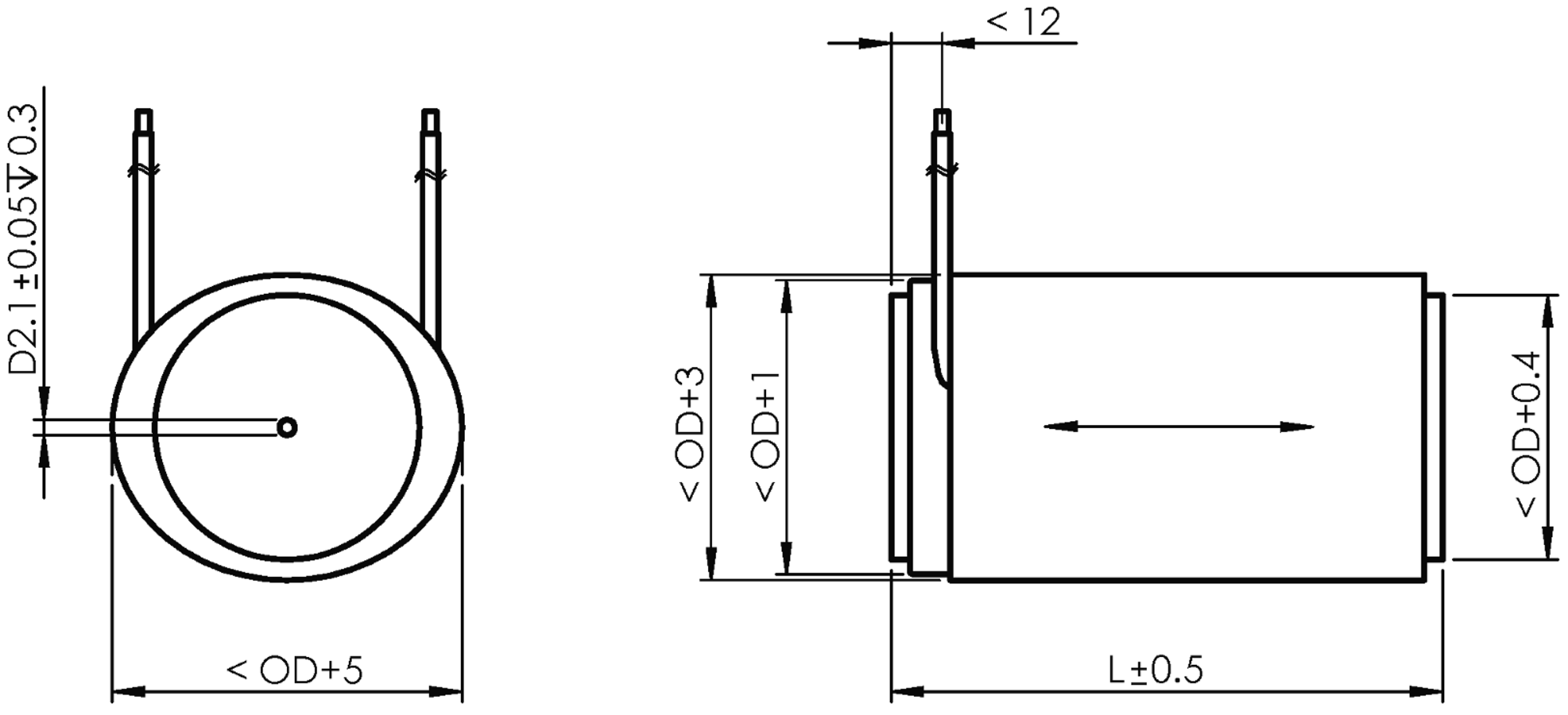

PICA Stack, dimensions in mm. L, OD see data table.

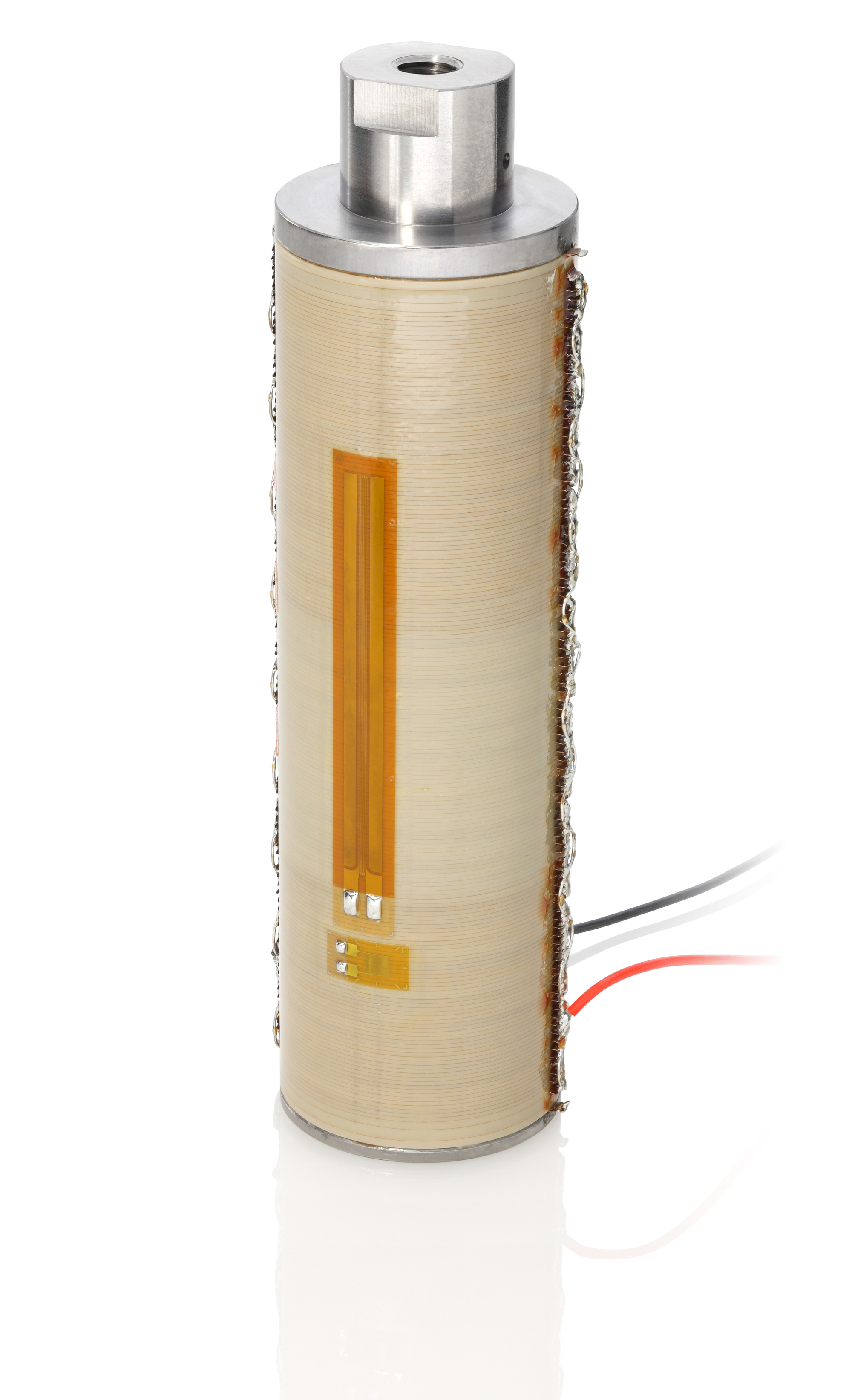

Special actuator with customized tip and affixed strain gauge sensors. The protective polymer layer can vary in color. Standard versions are delivered with connecting wires and are covered in black.
PICA Stack Piezo Actuators
Description du produit
Spécifications
Téléchargements
Devis / Commande
Stacked piezo linear actuator
Operating voltage 0 to 1000 V. Long lifetime without loss of performance. High specific displacement. High forces. Subnanometer resolution, microsecond response time. Operating temperature range: -20 to 85 °C
Possible modifications
Strain gauge sensors for positional stability
Piezoceramic material
Operating voltage range, displacement, layer thickness
Load capacity, force generation
Geometric shapes: round, rectangular
Endpieces: flat, spherical, metal, ceramic, glass, sapphire, etc.
Integrated piezoelectric force detector layers
Extended temperature range, temperature sensor
Vacuum-compatible and nonmagnetic versions
Reduced length tolerances
Application fields
Industry and research. For high-load precision positioning, precision mechanics and manufacturing, switching applications
Specifications
Datasheet
Datasheet PICA Stack
Version / Date
2026-05-08
pdf - 9 MB
Version / Date
2026-05-08
pdf - 9 MB
Version / Date
2026-05-08
pdf - 9 MB
Specifications
| Travel range | Diameter OD | Length L | Blocking force | Stiffness | Electrical capacitance | Resonant frequency | |
|---|---|---|---|---|---|---|---|
| µm | mm | mm | N | N/µm | nF | kHz | |
| P-007.00 | 5 | 7 | 8 | 650 | 130 | 11 | 126 |
| P-007.10 | 15 | 7 | 17 | 850 | 59 | 33 | 59 |
| P-007.20 | 30 | 7 | 29 | 1000 | 35 | 64 | 36 |
| P-007.40 | 60 | 7 | 54 | 1150 | 19 | 130 | 20 |
| P-010.00 | 5 | 10 | 8 | 1400 | 270 | 21 | 126 |
| P-010.10 | 15 | 10 | 17 | 1800 | 120 | 64 | 59 |
| P-010.20 | 30 | 10 | 30 | 2100 | 71 | 130 | 35 |
| P-010.40 | 60 | 10 | 56 | 2200 | 38 | 260 | 20 |
| P-010.80 | 120 | 10 | 107 | 2400 | 20 | 510 | 10 |
| P-016.10 | 15 | 16 | 17 | 4600 | 320 | 180 | 59 |
| P-016.20 | 30 | 16 | 29 | 5500 | 190 | 340 | 36 |
| P-016.40 | 60 | 16 | 54 | 6000 | 100 | 680 | 20 |
| P-016.80 | 120 | 16 | 101 | 6500 | 54 | 1300 | 11 |
| P-016.90 | 180 | 16 | 150 | 6500 | 36 | 2000 | 7 |
| P-025.10 | 15 | 25 | 18 | 11000 | 740 | 400 | 56 |
| P-025.20 | 30 | 25 | 30 | 13000 | 440 | 820 | 35 |
| P-025.40 | 60 | 25 | 53 | 15000 | 250 | 1700 | 21 |
| P-025.80 | 120 | 25 | 101 | 16000 | 130 | 3400 | 11 |
| P-025.90 | 180 | 25 | 149 | 16000 | 89 | 5100 | 7 |
| P-025.150 | 250 | 25 | 204 | 16000 | 65 | 7100 | 5 |
| P-025.200 | 300 | 25 | 244 | 16000 | 54 | 8500 | 5 |
| P-035.10 | 15 | 35 | 20 | 20000 | 1300 | 700 | 51 |
| P-035.20 | 30 | 35 | 32 | 24000 | 810 | 1600 | 33 |
| P-035.40 | 60 | 35 | 57 | 28000 | 460 | 3300 | 19 |
| P-035.80 | 120 | 35 | 104 | 30000 | 250 | 6700 | 11 |
| P-035.90 | 180 | 35 | 153 | 31000 | 170 | 10000 | 7 |
| P-045.20 | 30 | 45 | 33 | 39000 | 1300 | 2800 | 32 |
| P-045.40 | 60 | 45 | 58 | 44000 | 740 | 5700 | 19 |
| P-045.80 | 120 | 45 | 105 | 49000 | 410 | 11000 | 10 |
| P-045.90 | 180 | 45 | 154 | 50000 | 280 | 17000 | 7 |
| P-050.20 | 30 | 50 | 33 | 48000 | 1600 | 3400 | 32 |
| P-050.40 | 60 | 50 | 58 | 55000 | 910 | 7000 | 19 |
| P-050.80 | 120 | 50 | 105 | 60000 | 500 | 14000 | 10 |
| P-050.90 | 180 | 50 | 154 | 61000 | 340 | 22000 | 7 |
| P-056.20 | 30 | 56 | 33 | 60000 | 2000 | 4300 | 32 |
| P-056.40 | 60 | 56 | 58 | 66000 | 1100 | 8900 | 19 |
| P-056.80 | 120 | 56 | 105 | 76000 | 630 | 18000 | 10 |
| P-056.90 | 180 | 56 | 154 | 78000 | 430 | 27000 | 7 |
Travel range: at 0 to 1000 V, tolerance -10/20 %
Length L: tolerance ±0.5 mm
Blocking force: at 0 to 1000 V
Electrical capacitance: measured at 1 V, 1 kHz, RT, tolerance ±20 %
Resonant frequency: measured at 1 V, unloaded, unclamped. The value is halved for unilateral clamping.
Piezoceramics: PIC151
Standard connections: FEP-insulated connecting wires, 100 mm, AWG 24, Ø 1.15 mm Operating voltage range: 0 to 1000 V
Operating temperature range: -20 to 85 °C
Standard tips: steel plates, 0.5 to 2 mm thick (depends on model) Lateral surface: polyolefin shrink tube, black
Recommended preload for dynamic operation: 15 MPa Maximum preload for constant force: 30 MPa
Custom versions or different specifications are available on request.
Downloads
Datasheet
Datasheet
Datasheet PICA Stack
Version / Date
2026-05-08
pdf - 9 MB
Version / Date
2026-05-08
pdf - 9 MB
Version / Date
2026-05-08
pdf - 9 MB
Documentation
Documentation
User Manual PZ138
PICA Piezo Actuators: P-007, P-010, P-016, P-025, P-035, P-045, P-050, P-056 PICA Stack/Power/Thru Customized Products
Version / Date
2014-12-10
pdf - 922 KB
Version / Date
2014-12-10
pdf - 923 KB
Documentation
Short Instructions PZ257EK
PICA Piezo Actuators up to 1000 V: PICA Stack, PICA Power, PICA Thru, PICA Shear, Picoactuator®
Version / Date
3.0.0 03/2026
pdf - 176 KB
Version / Date
3.0.0 03/2026
pdf - 180 KB
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
Ordering information
P-007.10
PICA Stack piezo actuator, 15 µm travel range, OD 7 mm × L 17 mm
P-007.20
PICA Stack piezo actuator, 30 µm travel range, OD 7 mm × L 29 mm
P-007.40
PICA Stack piezo actuator, 60 µm travel range, OD 7 mm × L 54 mm
P-010.00
PICA Stack piezo actuator, 5 µm travel range, OD 10 mm × L 8 mm
P-010.10
PICA Stack piezo actuator, 15 µm travel range, OD 10 mm × L 17 mm
P-010.20
PICA Stack piezo actuator, 30 µm travel range, OD 10 mm × L 30 mm
P-010.40
PICA Stack piezo actuator, 60 µm travel range, OD 10 mm × L 56 mm
P-010.80
PICA Stack piezo actuator, 120 µm travel range, OD 10 mm × L 107 mm
P-016.10
PICA Stack piezo actuator, 15 µm travel range, OD 16 mm × L 17 mm
P-016.20
PICA Stack piezo actuator, 30 µm travel range, OD 16 mm × L 29 mm
P-016.40
PICA Stack piezo actuator, 60 µm travel range, OD 16 mm × L 54 mm
P-016.80
PICA Stack piezo actuator, 120 µm travel range, OD 16 mm × L 101 mm
P-016.90
PICA Stack piezo actuator, 180 µm travel range, OD 16 mm × L 150 mm
P-025.10
PICA Stack piezo actuator, 15 µm travel range, OD 25 mm × L 18 mm
P-025.20
PICA Stack piezo actuator, 30 µm travel range, OD 25 mm × L 30 mm
P-025.40
PICA Stack piezo actuator, 60 µm travel range, OD 25 mm × L 53 mm
P-025.80
PICA Stack piezo actuator, 120 µm travel range, OD 25 mm × L 101 mm
P-025.90
PICA Stack piezo actuator, 180 µm travel range, OD 25 mm × L 149 mm
P-025.150
PICA Stack piezo actuator, 250 µm travel range, OD 25 mm × L 204 mm
P-025.200
PICA Stack piezo actuator, 300 µm travel range, OD 25 mm × L 244 mm
P-035.10
PICA Stack piezo actuator, 15 µm travel range, OD 35 mm × L 20 mm
P-035.20
PICA Stack piezo actuator, 30 µm travel range, OD 35 mm × L 32 mm
P-035.40
PICA Stack piezo actuator, 60 µm travel range, OD 35 mm × L 57 mm
P-035.80
PICA Stack piezo actuator, 120 µm travel range, OD 35 mm × L 104 mm
P-035.90
PICA Stack piezo actuator, 180 µm travel range, OD 35 mm × L 153 mm
P-045.20
PICA Stack piezo actuator, 30 µm travel range, OD 45 mm × L 33 mm
P-045.40
PICA Stack piezo actuator, 60 µm travel range, OD 45 mm × L 58 mm
P-045.80
PICA Stack piezo actuator, 120 µm travel range, OD 45 mm × L 105 mm
P-045.90
PICA Stack piezo actuator, 180 µm travel range, OD 45 mm × L 154 mm
P-050.20
PICA Stack piezo actuator, 30 µm travel range, OD 50 mm × L 33 mm
P-050.40
PICA Stack piezo actuator, 60 µm travel range, OD 50 mm × L 58 mm
P-050.80
PICA Stack piezo actuator, 120 µm travel range, OD 50 mm × L 105 mm
P-050.90
PICA Stack piezo actuator, 180 µm travel range, OD 50 mm × L 154 mm
P-056.20
PICA Stack piezo actuator, 30 µm travel range, OD 56 mm × L 33 mm
P-056.40
PICA Stack piezo actuator, 60 µm travel range, OD 56 mm × L 58 mm
P-056.80
PICA Stack piezo actuator, 120 µm travel range, OD 56 mm × L 105 mm
P-056.90
PICA Stack piezo actuator, 180 µm travel range, OD 56 mm × L 154 mm
