P-111.01

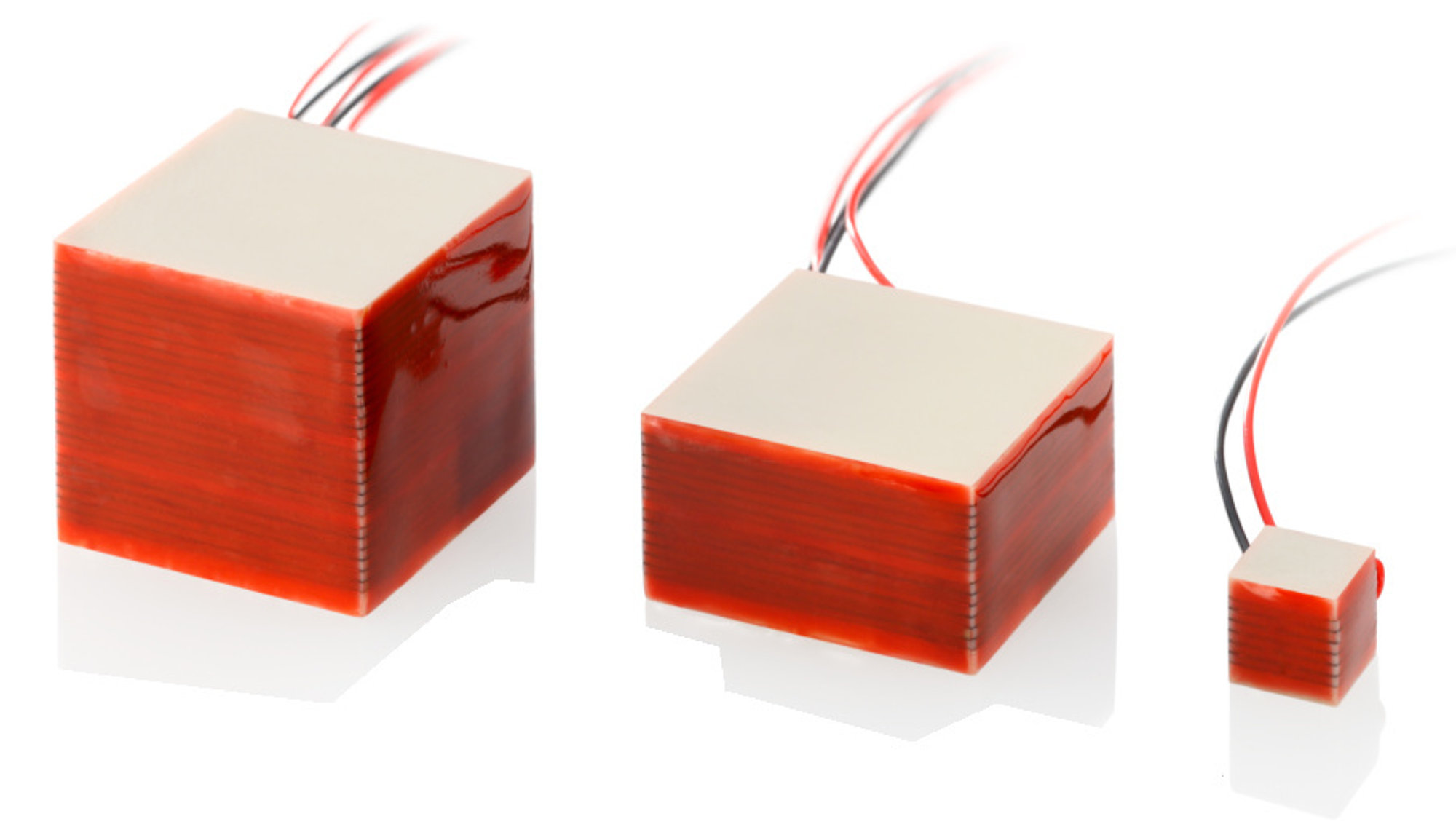

PICA Shear X piezo actuator, 1 µm travel range, 3 mm × 3 mm cross section
PICA Shear Multi-Axis Shear Actuators
Compact Multi-Axis Actuators
- Single and multi-axis versions
- Travel ranges to 10 × 10 × 10 µm
- Extreme reliability: >109 cycles
- Picometer resolution

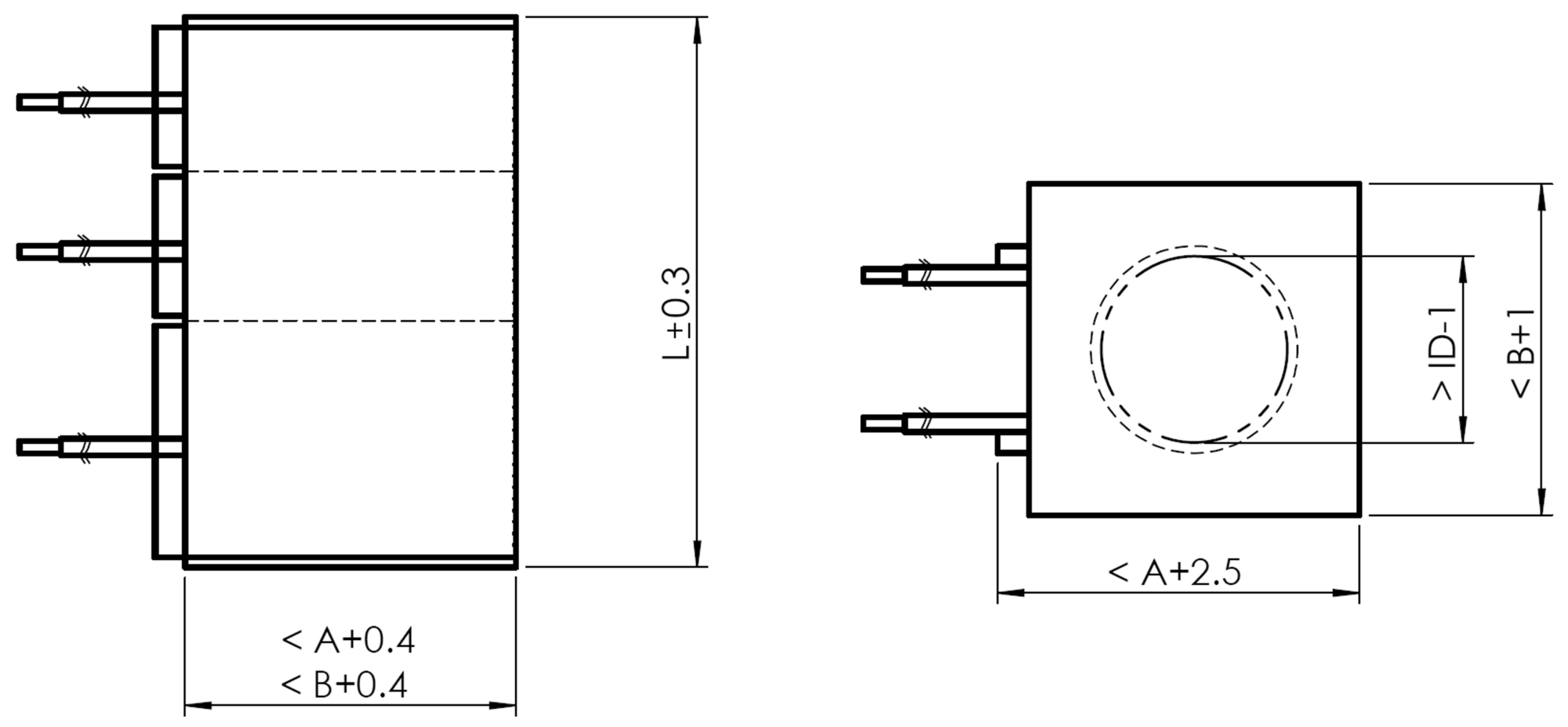

P-1xx.xx and P-1xx.xxH (with inner hole) PICA Shear actuators. A, B, L, see data table. Dimensions in mm. Note that a comma is used in the drawings instead of a decimal point. The number of axes and wires depends on the type.

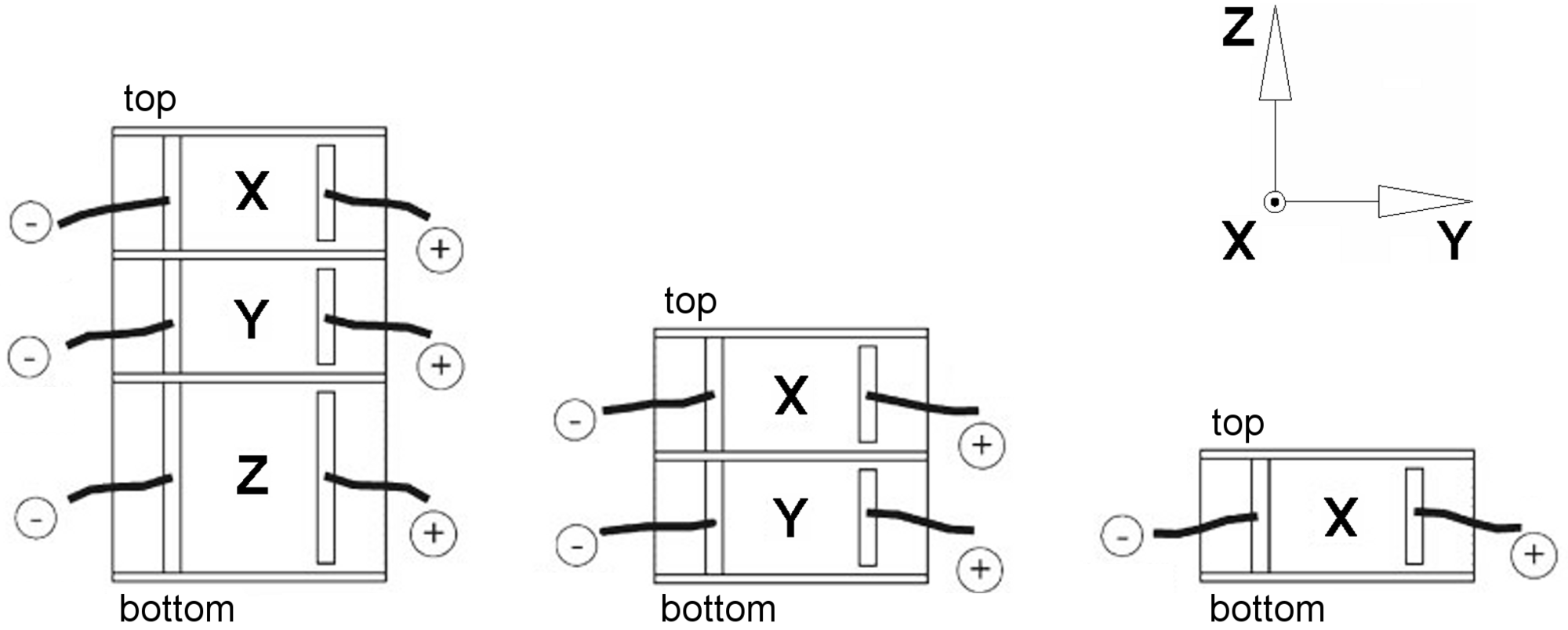

Axis and cable assignment for PICA shear actuators. GND: 0 V, +: ±250 V

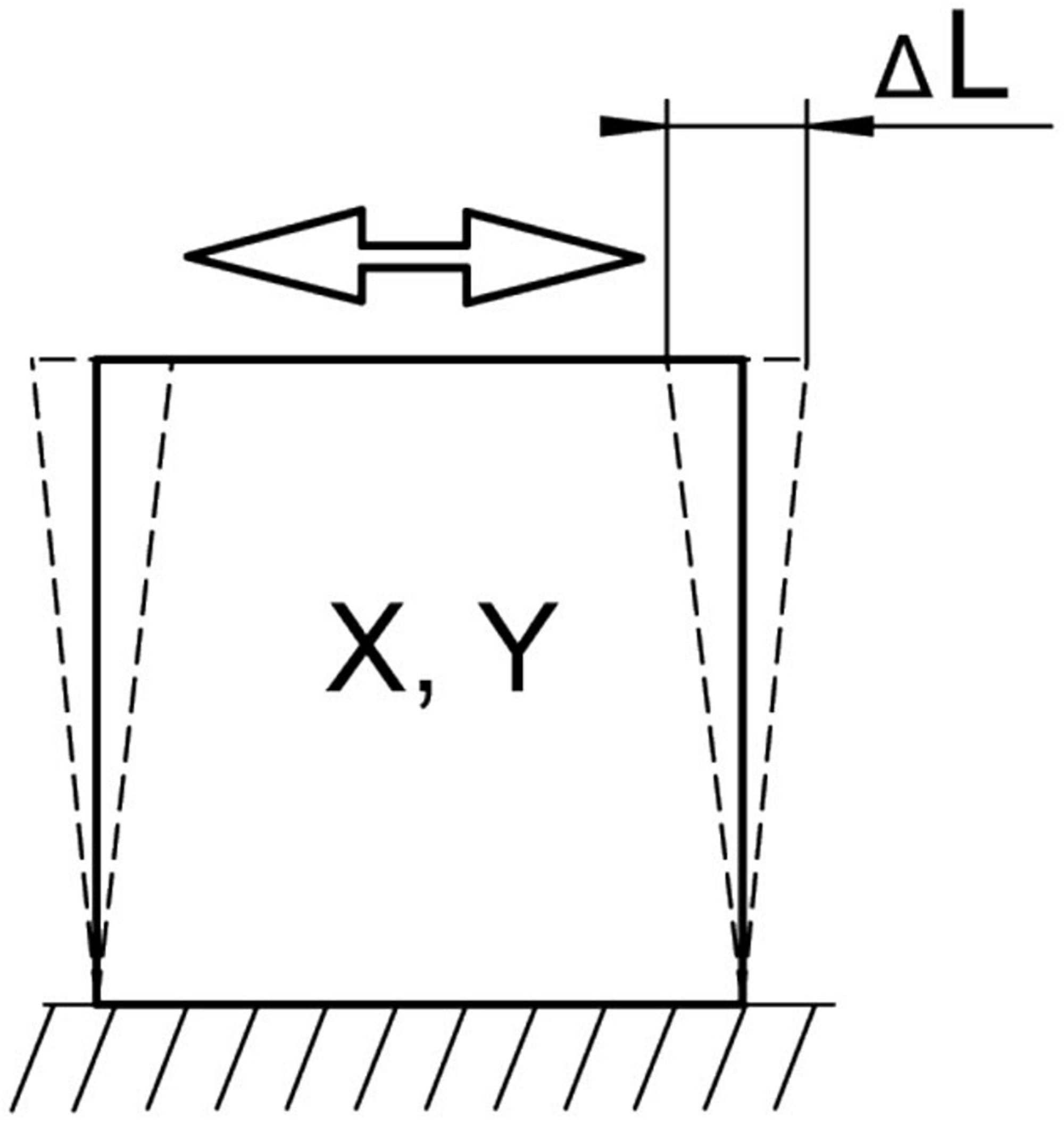

Shearing motion principle. ∆L describes the travel range.
PICA Shear Multi-Axis Shear Actuators
Description du produit
Spécifications
Téléchargements
Devis / Commande
Piezo shear actuators
Operating voltage -250 to 250 V. Lateral displacement is based on the piezoelectric shear effect. Excellent dynamics with minimum electric power requirement.
Variants with inner hole or for use in cryogenic and UHV environments to 10-9 hPa.
Possible modifications
Piezoceramic material
Nonmagnetic versions
Operating voltage range, displacement, layer thickness, cross-sectional dimension
Load capacity, force generation
Endpieces: flat, spherical, metal, ceramic, glass, sapphire, etc.
Reduced length tolerances
Application fields
Industry and research
Scanning applications
Microscopy
Precision mechanics
Switching applications
Specifications
Datasheet
Datasheet PICA Shear Multi-Axis Shear Actuators
Version / Date
2026-03-10
pdf - 553 KB
Version / Date
2026-03-10
pdf - 558 KB
Version / Date
2018-04-25
pdf - 777 KB
Specifications
| Travel range | Surface A × B | Length L | Max. shear load | Axial stiffness | Electrical capacitance | Axial resonant frequency | |
|---|---|---|---|---|---|---|---|
| µm | mm | mm | N | N/µm | nF | kHz | |
| Active axis X | |||||||
| P-111.01 | 1* | 3 × 3 | 3.5 | 20 | 70 | 0.5 | 330 |
| P-111.03 | 3* | 3 × 3 | 5.5 | 20 | 45 | 1.5 | 210 |
| P-111.05 | 5 | 3 × 3 | 7.5 | 20 | 30 | 2.5 | 155 |
| P-121.01 | 1* | 5 × 5 | 3.5 | 50 | 190 | 1.4 | 330 |
| P-121.03 | 3* | 5 × 5 | 5.5 | 50 | 120 | 4.2 | 210 |
| P-121.05 | 5 | 5 × 5 | 7.5 | 40 | 90 | 7 | 155 |
| P-141.03 | 3* | 10 × 10 | 5.5 | 200 | 490 | 17 | 210 |
| P-141.05 | 5 | 10 × 10 | 7.5 | 200 | 360 | 28 | 155 |
| P-141.10 | 10 | 10 × 10 | 12 | 200 | 230 | 50 | 100 |
| P-151.03 | 3* | 16 × 16 | 5.5 | 300 | 1300 | 43 | 210 |
| P-151.05 | 5 | 16 × 16 | 7.5 | 300 | 920 | 71 | 155 |
| P-151.10 | 10 | 16 × 16 | 12 | 300 | 580 | 130 | 100 |
| Active axes XY | |||||||
| P-112.01 | 1 × 1* | 3 × 3 | 5 | 20 | 50 | 0.5 / 0.5 | 230 |
| P-112.03 | 3 × 3* | 3 × 3 | 9.5 | 10 | 25 | 1.5 / 1.5 | 120 |
| P-122.01 | 1 × 1* | 5 × 5 | 5 | 50 | 140 | 1.4 / 1.4 | 230 |
| P-122.03 | 3 × 3* | 5 × 5 | 9.5 | 40 | 70 | 4.2 / 4.2 | 120 |
| P-122.05 | 5 × 5 | 5 × 5 | 14 | 30 | 50 | 7 / 7 | 85 |
| P-142.03 | 3 × 3* | 10 × 10 | 9.5 | 200 | 280 | 17 / 17 | 120 |
| P-142.05 | 5 × 5 | 10 × 10 | 14 | 100 | 190 | 28 / 28 | 85 |
| P-142.10 | 10 × 10 | 10 × 10 | 23 | 50 | 120 | 50 / 50 | 50 |
| P-152.03 | 3 × 3* | 16 × 16 | 9.5 | 300 | 730 | 43 / 43 | 120 |
| P-152.05 | 5 × 5 | 16 × 16 | 14 | 300 | 490 | 71 / 71 | 85 |
| P-152.10 | 10 × 10 | 16 × 16 | 23 | 100 | 300 | 130 / 130 | 50 |
| Active axes XYZ | |||||||
| P-123.01 | 1 × 1 × 1* | 5 × 5 | 7.5 | 40 | 90 | 1.4 / 1.4 / 2.9 | 155 |
| P-123.03 | 3 × 3 × 3* | 5 × 5 | 15.5 | 10 | 45 | 4.2 / 4.2 / 7.3 | 75 |
| P-143.01 | 1 × 1 × 1* | 10 × 10 | 7.5 | 200 | 360 | 5.6 / 5.6 / 11 | 155 |
| P-143.03 | 3 × 3 × 3* | 10 × 10 | 15.5 | 100 | 170 | 17 / 17 / 29 | 75 |
| P-143.05 | 5 × 5 × 5 | 10 × 10 | 23 | 50 | 120 | 28 / 28 / 47 | 50 |
| P-153.03 | 3 × 3 × 3* | 16 × 16 | 15.5 | 300 | 450 | 43 / 43 / 73 | 75 |
| P-153.05 | 5 × 5 × 5 | 16 × 16 | 23 | 100 | 300 | 71 / 71 / 120 | 50 |
| P-153.10 | 10 × 10 × 10 | 16 × 16 | 40 | 60 | 170 | 130 / 130 / 230 | 30 |
Travel range: at -250 to 250 V, tolerance -10/+20 %; *±30 %
Length L: tolerance ±0.3 mm
Electrical capacitance: measured at 1 V, 1 kHz, RT, tolerance ±20 %.
Axial resonant frequency: measured at 1 V, unloaded, unclamped. The value is halved for unilateral clamping.
Piezoceramics: PIC255
Standard connections: PTFE-insulated connecting wires, 100 mm, AWG 32, Ø 0.49 mm
Operating voltage range: -250 to 250 V
Operating temperature range: -20 to 85 °C
Standard endpieces: ceramic (passive PZT)
Lateral surface: epoxy resin
Recommended electronics: E-413, E-508 Other specifications are available on request.
Custom versions are available on request.
