P-007 – P-056 PICA Stack Piezo Actuators

High Forces, High Displacement, Flexible Production

  • Travel ranges to 300 µm
  • High load capacity
  • Force generation up to 80 kN
  • Extreme reliability: >109 cycles
P-007 – P-056 PICA Stack Piezo Actuators
Description du produit Spécifications Téléchargements Devis / Commande

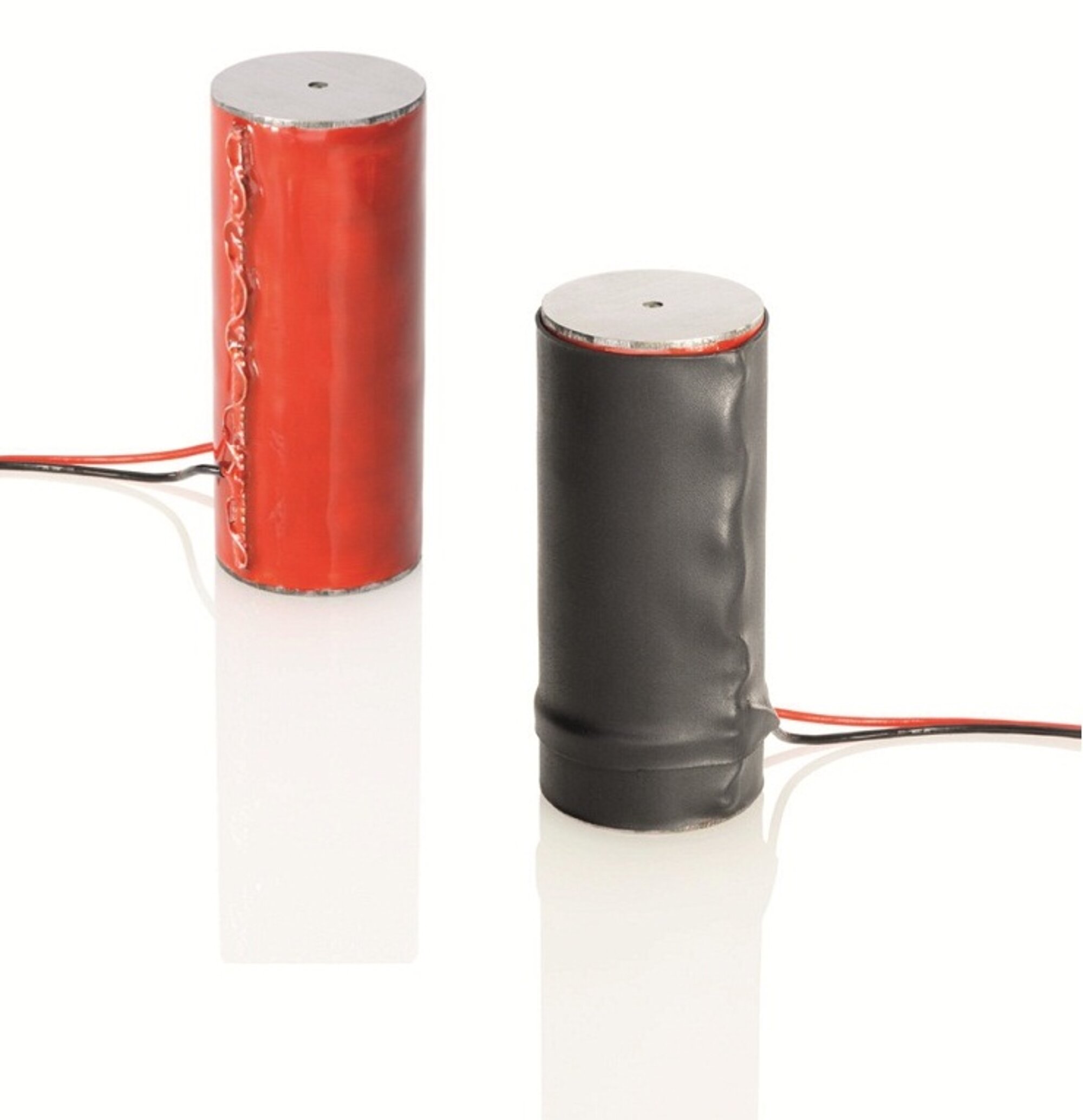

Stacked piezo linear actuator

Operating voltage 0 to 1000 V. Long lifetime without derating. High specific displacement. High forces. Sub-nanometer resolution, µs response. Operating temperature range -20 to 85 °C



Available options

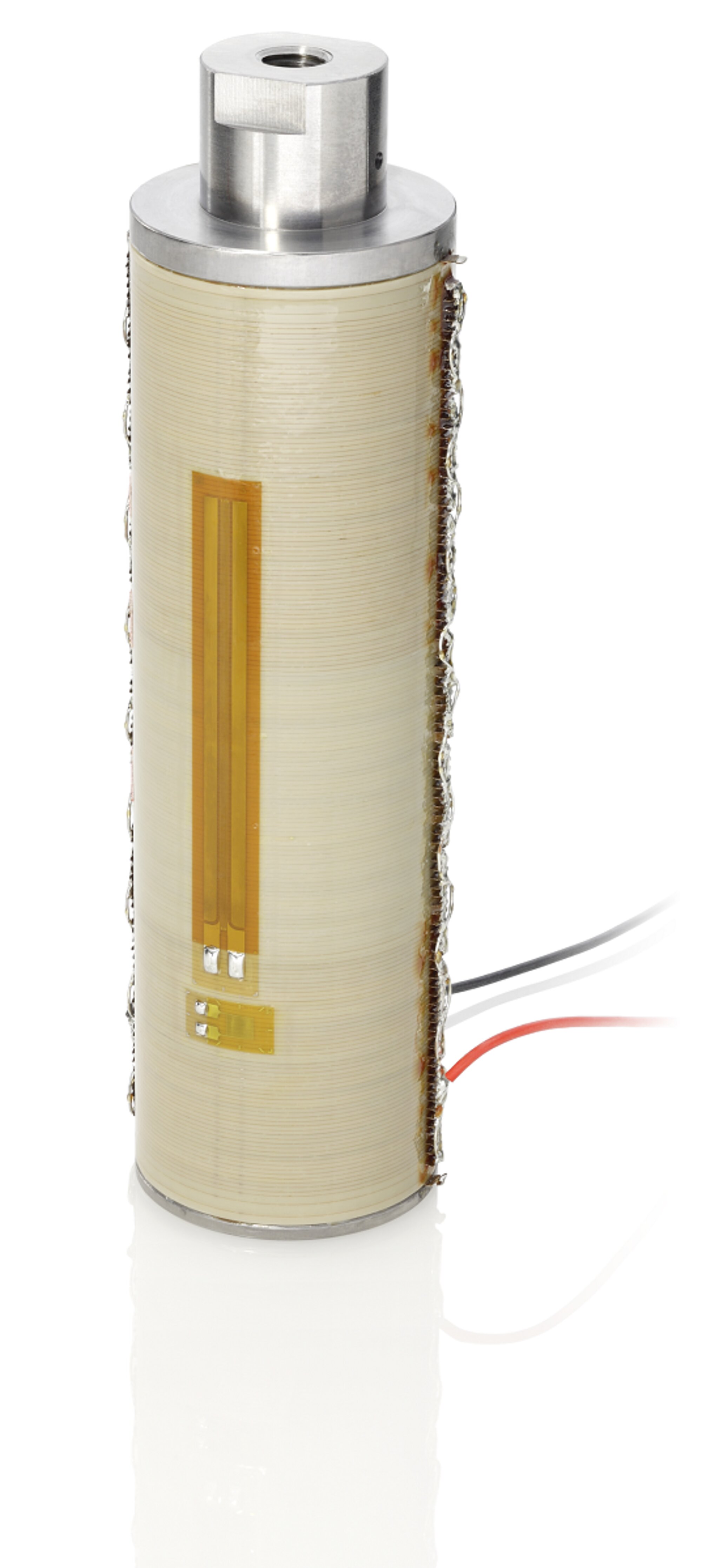

  • SGS sensors for positional stability
  • PZT ceramic material
  • Operating voltage range, displacement, layer thickness
  • Load capacity, force generation
  • Geometric shapes: round, rectangular
  • Mechanical interfaces: flat, spherical, metal, ceramic, glass, sapphire, etc.
  • Integrated piezoelectric detector layers
  • Special high / low temperature versions, temperature sensor
  • Vacuum-compatible and non-magnetic versions
  • Extra-tight length tolerances



Fields of application

Industry and research. For high-load positioning, precision mechanics / -machining, switches

Specifications

Datasheet

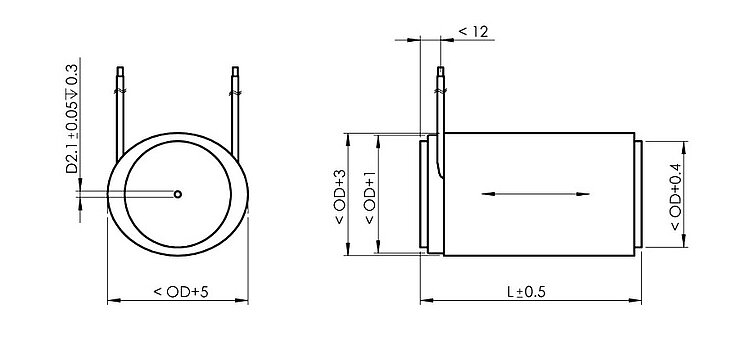

Datasheet P-007 - P-056
