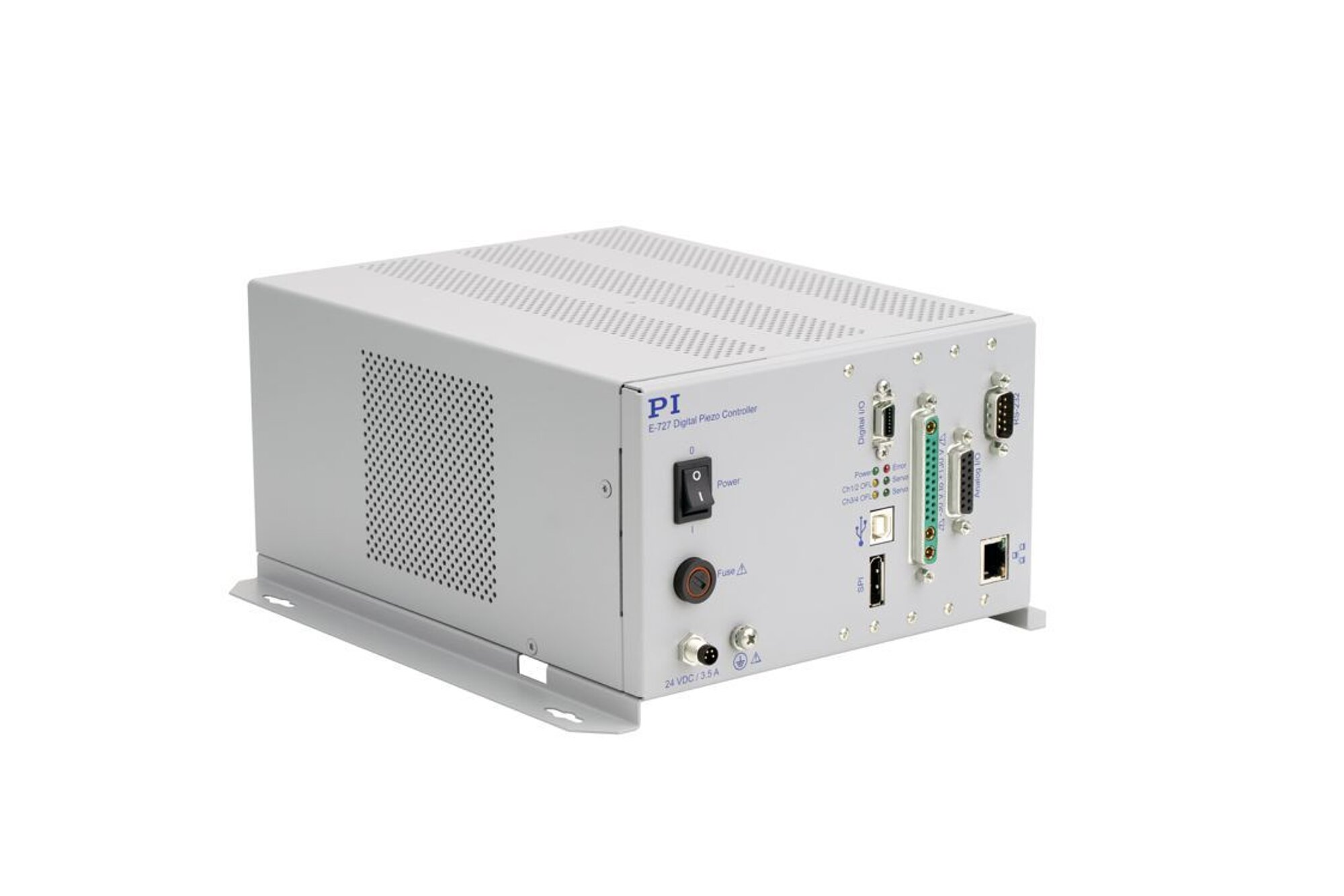

E-727.x • E-727.xAP Digital Multichannel Piezo Controller

For Nanopositioning Systems with Capacitive, Piezoresistive or Strain Gauge Sensors

20 kHz sampling rate control
Option for increased output current
Interfaces: TCP/IP, USB, and RS-232
Optional analog inputs and outputs
ID chip support for automatic adjustment of the controller to the piezo positioner
4th-order polynomial linearization

Aller au devis / à la commande

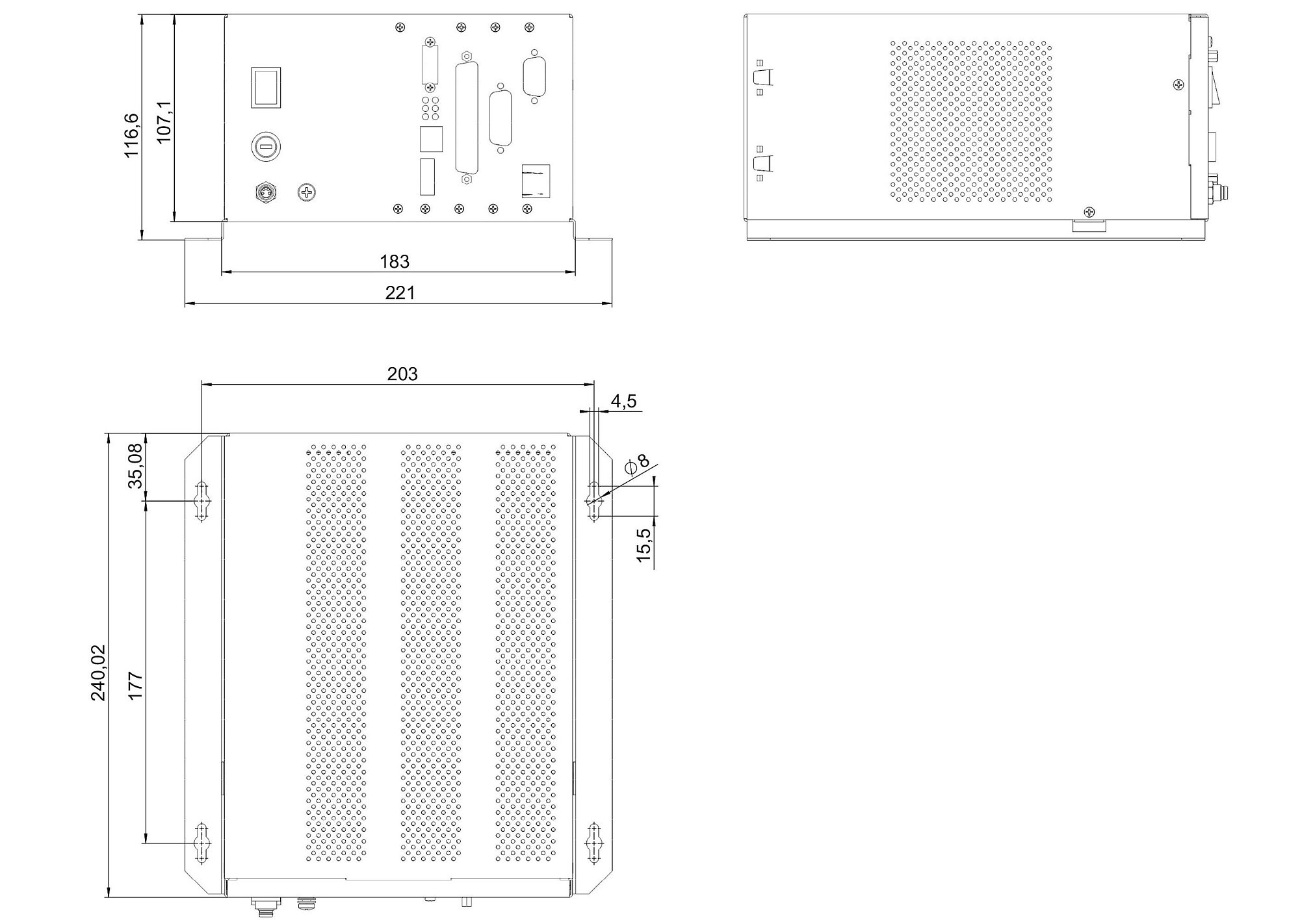

E-727.xxx, E-727.xxxA: dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

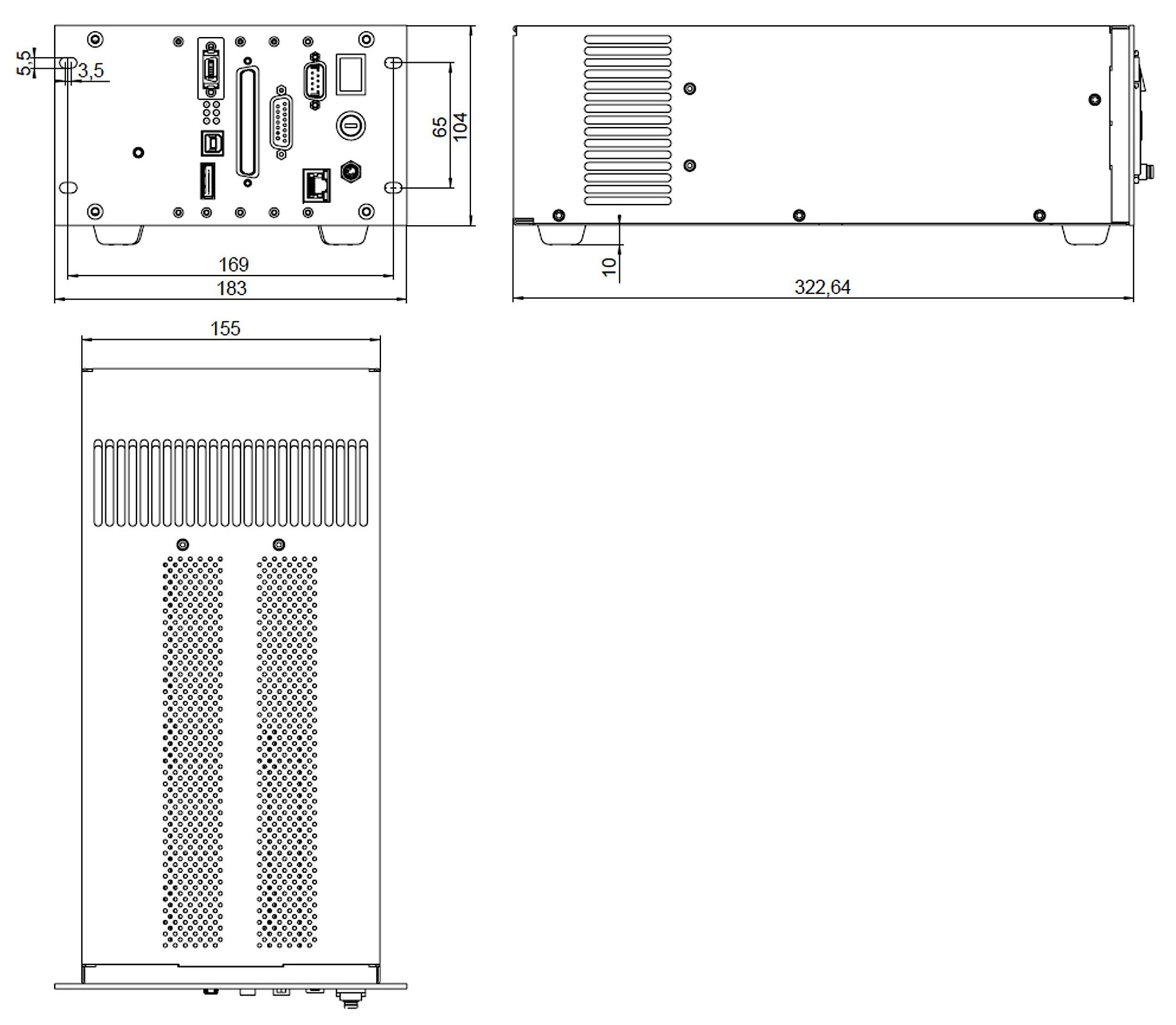

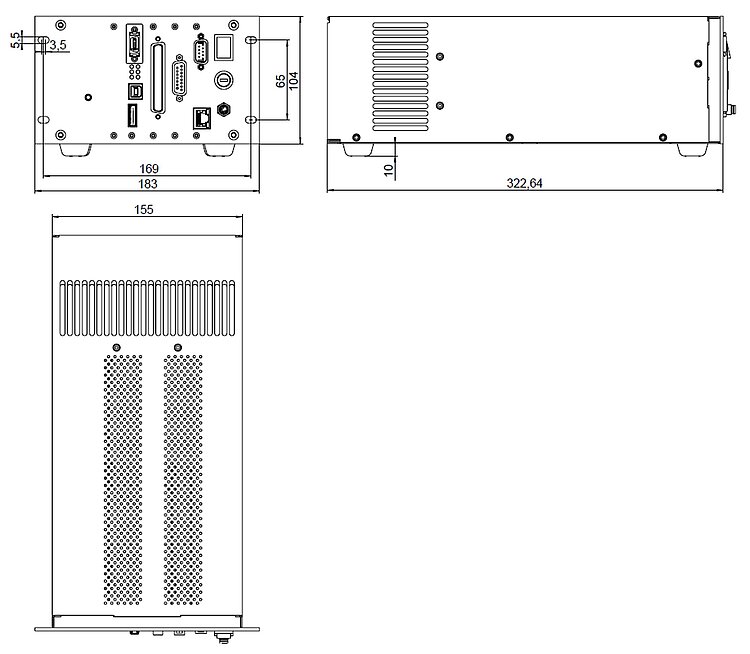

E-727.xxxP, E-727.xxxAP: dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

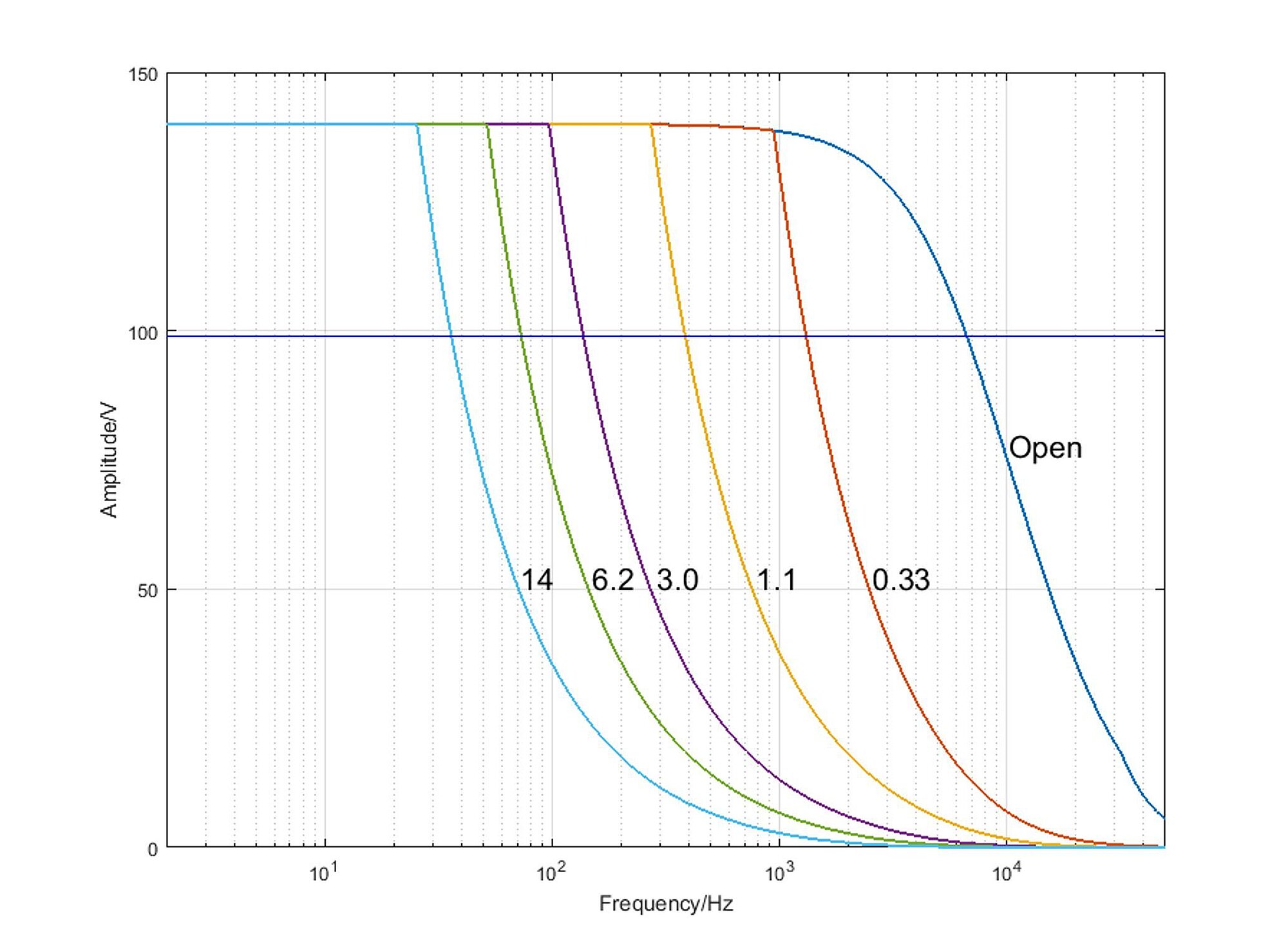

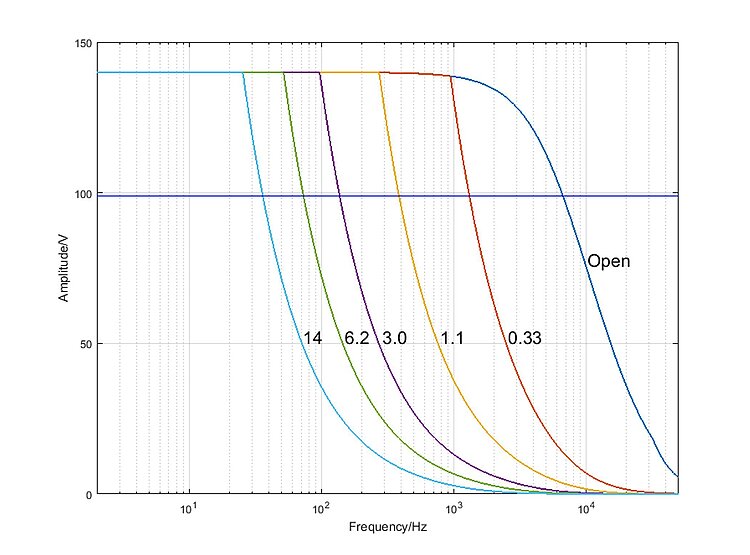

E-727.xxx, E-727.xxxA: Operating limits (open loop) with various piezo loads, capacitance values in µF

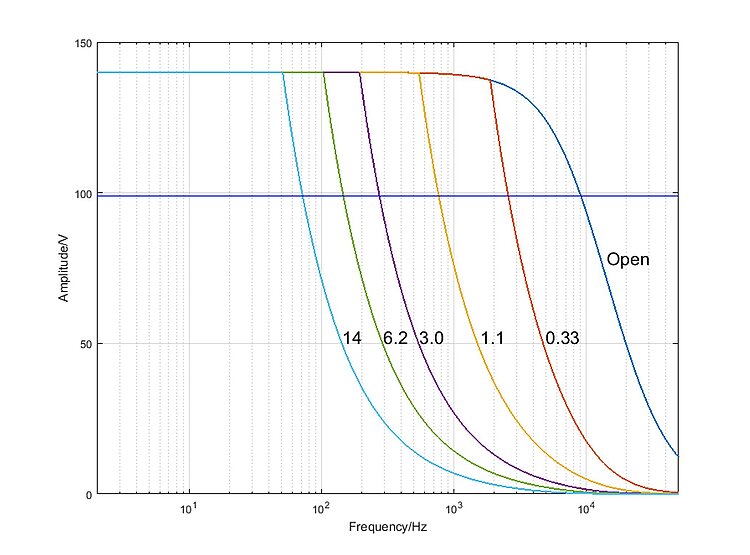

E-727.xxxP, E-727.xxxAP: Operating limits (open loop) with various piezo loads, capacitance values in µF

Digital controller for piezo-based nanopositioning systems

Integrated low-noise power amplifiers for PICMA® piezo actuators. Output voltage -30 V to +130 V. Supports nanopositioning systems with strain gauge sensors, capacitive sensors or piezoresistive sensors. P-I controller with 2 notch filters. Linearization based on 4th-order polynomials. Optional Dynamic Digital Linearization (DDL). Delivery includes wide input range power supply, USB and RS-232 cable.

High dynamics

Increased output current (optional) for dynamic applications that require a high peak current.

Extensive functionality

ID chip for fast startup and quick exchange of system components. Data recorder, wave generator, macros. Extensive software support, e.g., for use with C, C++, C#, NI LabVIEW, or MATLAB.

Interfaces

TCP/IP, USB, RS-232, SPI. 4 analog inputs and outputs each (optional) for external sensors, target values or external amplifiers. 4 digital inputs and outputs respectively.

Télécharger la fiche technique Aller aux spécifications Aller au devis / à la commande

Datasheet

Version / Date

2026-09-23

pdf - 1 MB

Version / Date

2026-09-23

pdf - 1 MB

Version / Date

2022-12-08

pdf - 1 MB

Télécharger

Basics	E-727.3CD	E-727.3CDA	E-727.3CDAP	E-727.3CDP	E-727.3RD	E-727.3RDA	E-727.3RDAP	E-727.3RDP	E-727.3SD	E-727.3SDA	E-727.3SDAP	E-727.3SDP	E-727.4RD	E-727.4SD	E-727.4SDP
Housing type	Benchtop device	Benchtop device	Benchtop device	Benchtop device	Benchtop device	Benchtop device	Benchtop device	Benchtop device	Benchtop device	Benchtop device	Benchtop device	Benchtop device	Benchtop device	Benchtop device	Benchtop device
Drive type	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®
Axes	3	3	3	3	3	3	3	3	3	3	3	3	4	4	4
Processor	DSP 32/64-bit, floating point, 375 MHz	DSP 32/64-bit, floating point, 375 MHz	DSP 32/64-bit, floating point, 375 MHz	DSP 32/64-bit, floating point, 375 MHz	DSP 32/64-bit, floating point, 375 MHz	DSP 32/64-bit, floating point, 375 MHz	DSP 32/64-bit, floating point, 375 MHz	DSP 32/64-bit, floating point, 375 MHz	DSP 32/64-bit, floating point, 375 MHz	DSP 32/64-bit, floating point, 375 MHz	DSP 32/64-bit, floating point, 375 MHz	DSP 32/64-bit, floating point, 375 MHz	DSP 32/64-bit, floating point, 375 MHz	DSP 32/64-bit, floating point, 375 MHz	DSP 32/64-bit, floating point, 375 MHz
Application-related functions	Makro ǀ Startup macro ǀ Data recorder	Makro ǀ Startup macro ǀ Data recorder	Makro ǀ Startup macro ǀ Data recorder	Makro ǀ Startup macro ǀ Data recorder	Makro ǀ Startup macro ǀ Data recorder	Makro ǀ Startup macro ǀ Data recorder	Makro ǀ Startup macro ǀ Data recorder	Makro ǀ Startup macro ǀ Data recorder	Makro ǀ Startup macro ǀ Data recorder	Makro ǀ Startup macro ǀ Data recorder	Makro ǀ Startup macro ǀ Data recorder	Makro ǀ Startup macro ǀ Data recorder	Makro ǀ Startup macro ǀ Data recorder	Makro ǀ Startup macro ǀ Data recorder	Makro ǀ Startup macro ǀ Data recorder
Drive functions	AutoZero	AutoZero	AutoZero	AutoZero	AutoZero	AutoZero	AutoZero	AutoZero	AutoZero	AutoZero	AutoZero	AutoZero	AutoZero	AutoZero	AutoZero
Protective functions	Deactivation of the voltage output in case of internal overheating	Deactivation of the voltage output in case of internal overheating	Deactivation of the voltage output in case of internal overheating	Deactivation of the voltage output in case of internal overheating	Deactivation of the voltage output in case of internal overheating	Deactivation of the voltage output in case of internal overheating	Deactivation of the voltage output in case of internal overheating	Deactivation of the voltage output in case of internal overheating	Deactivation of the voltage output in case of internal overheating	Deactivation of the voltage output in case of internal overheating	Deactivation of the voltage output in case of internal overheating	Deactivation of the voltage output in case of internal overheating	Deactivation of the voltage output in case of internal overheating	Deactivation of the voltage output in case of internal overheating	Deactivation of the voltage output in case of internal overheating
Configuration management	Import of parameter files ǀ Reading the ID chip ǀ Manual parameter input	Import of parameter files ǀ Reading the ID chip ǀ Manual parameter input	Import of parameter files ǀ Reading the ID chip ǀ Manual parameter input	Import of parameter files ǀ Reading the ID chip ǀ Manual parameter input	Import of parameter files ǀ Reading the ID chip ǀ Manual parameter input	Import of parameter files ǀ Reading the ID chip ǀ Manual parameter input	Import of parameter files ǀ Reading the ID chip ǀ Manual parameter input	Import of parameter files ǀ Reading the ID chip ǀ Manual parameter input	Import of parameter files ǀ Reading the ID chip ǀ Manual parameter input	Import of parameter files ǀ Reading the ID chip ǀ Manual parameter input	Import of parameter files ǀ Reading the ID chip ǀ Manual parameter input	Import of parameter files ǀ Reading the ID chip ǀ Manual parameter input	Import of parameter files ǀ Reading the ID chip ǀ Manual parameter input	Import of parameter files ǀ Reading the ID chip ǀ Manual parameter input	Import of parameter files ǀ Reading the ID chip ǀ Manual parameter input
Supported ID chip	ID chip 2.0	ID chip 2.0	ID chip 2.0	ID chip 2.0	ID chip 2.0	ID chip 2.0	ID chip 2.0	ID chip 2.0	ID chip 2.0	ID chip 2.0	ID chip 2.0	ID chip 2.0	ID chip 2.0	ID chip 2.0	ID chip 2.0
Motion and control	E-727.3CD	E-727.3CDA	E-727.3CDAP	E-727.3CDP	E-727.3RD	E-727.3RDA	E-727.3RDAP	E-727.3RDP	E-727.3SD	E-727.3SDA	E-727.3SDAP	E-727.3SDP	E-727.4RD	E-727.4SD	E-727.4SDP
Supported sensor signal	analog (cap.)	analog (cap.)	analog (cap.)	analog (cap.)	analog (piezores.)	analog (piezores.)	analog (piezores.)	analog (piezores.)	analog (SGS)	analog (SGS)	analog (SGS)	analog (SGS)	analog (piezores.)	analog (SGS)	analog (SGS)
Control variables	Position	Position	Position	Position	Position	Position	Position	Position	Position	Position	Position	Position	Position	Position	Position
Maximum control frequency (servo cycle)	20000 Hz	20000 Hz	20000 Hz	20000 Hz	20000 Hz	20000 Hz	20000 Hz	20000 Hz	20000 Hz	2000 Hz	20000 Hz	20000 Hz	20000 Hz	20000 Hz	20000 Hz
Motion types	Point-to-point motion ǀ Wave generator	Point-to-point motion ǀ Wave generator	Point-to-point motion ǀ Wave generator	Point-to-point motion ǀ Wave generator	Point-to-point motion ǀ Wave generator	Point-to-point motion ǀ Wave generator	Point-to-point motion ǀ Wave generator	Point-to-point motion ǀ Wave generator	Point-to-point motion ǀ Wave generator	Point-to-point motion ǀ Wave generator	Point-to-point motion ǀ Wave generator	Point-to-point motion ǀ Wave generator	Point-to-point motion ǀ Wave generator	Point-to-point motion ǀ Wave generator	Point-to-point motion ǀ Wave generator
Interfaces and operation	E-727.3CD	E-727.3CDA	E-727.3CDAP	E-727.3CDP	E-727.3RD	E-727.3RDA	E-727.3RDAP	E-727.3RDP	E-727.3SD	E-727.3SDA	E-727.3SDAP	E-727.3SDP	E-727.4RD	E-727.4SD	E-727.4SDP
Communication interfaces	RS-232 ǀ SPI master ǀ TCP/IP ǀ USB 2.0	RS-232 ǀ SPI master ǀ TCP/IP ǀ USB 2.0	RS-232 ǀ SPI master ǀ TCP/IP ǀ USB 2.0	RS-232 ǀ SPI master ǀ TCP/IP ǀ USB 2.0	RS-232 ǀ SPI master ǀ TCP/IP ǀ USB 2.0	RS-232 ǀ SPI master ǀ TCP/IP ǀ USB 2.0	RS-232 ǀ SPI master ǀ TCP/IP ǀ USB 2.0	RS-232 ǀ SPI master ǀ TCP/IP ǀ USB 2.0	RS-232 ǀ SPI master ǀ TCP/IP ǀ USB 2.0	RS-232 ǀ SPI master ǀ TCP/IP ǀ USB 2.0	RS-232 ǀ SPI master ǀ TCP/IP ǀ USB 2.0	RS-232 ǀ SPI master ǀ TCP/IP ǀ USB 2.0	RS-232 ǀ SPI master ǀ TCP/IP ǀ USB 2.0	RS-232 ǀ SPI master ǀ TCP/IP ǀ USB 2.0	RS-232 ǀ SPI master ǀ TCP/IP ǀ USB 2.0
Motion-dependent inputs and outputs	Digital trigger input ǀ Digital trigger output ǀ Digital output servo cycle ǀ Analog control input ǀ Analog sensor input ǀ Analog control output ǀ Analog output for monitor of axis position	Digital trigger input ǀ Digital trigger output ǀ Digital output servo cycle ǀ Analog control input ǀ Analog sensor input ǀ Analog control output ǀ Analog output for monitor of axis position	Digital trigger input ǀ Digital trigger output ǀ Digital output servo cycle ǀ Analog control input ǀ Analog sensor input ǀ Analog control output ǀ Analog output for monitor of axis position	Digital trigger input ǀ Digital trigger output ǀ Digital output servo cycle ǀ Analog control input ǀ Analog sensor input ǀ Analog control output ǀ Analog output for monitor of axis position	Digital trigger input ǀ Digital trigger output ǀ Digital output servo cycle ǀ Analog control input ǀ Analog sensor input ǀ Analog control output ǀ Analog output for monitor of axis position	Digital trigger input ǀ Digital trigger output ǀ Digital output servo cycle ǀ Analog control input ǀ Analog sensor input ǀ Analog control output ǀ Analog output for monitor of axis position	Digital trigger input ǀ Digital trigger output ǀ Digital output servo cycle ǀ Analog control input ǀ Analog sensor input ǀ Analog control output ǀ Analog output for monitor of axis position	Digital trigger input ǀ Digital trigger output ǀ Digital output servo cycle ǀ Analog control input ǀ Analog sensor input ǀ Analog control output ǀ Analog output for monitor of axis position	Digital trigger input ǀ Digital trigger output ǀ Digital output servo cycle ǀ Analog control input ǀ Analog sensor input ǀ Analog control output ǀ Analog output for monitor of axis position	Digital trigger input ǀ Digital trigger output ǀ Digital output servo cycle ǀ Analog control input ǀ Analog sensor input ǀ Analog control output ǀ Analog output for monitor of axis position	Digital trigger input ǀ Digital trigger output ǀ Digital output servo cycle ǀ Analog control input ǀ Analog sensor input ǀ Analog control output ǀ Analog output for monitor of axis position	Digital trigger input ǀ Digital trigger output ǀ Digital output servo cycle ǀ Analog control input ǀ Analog sensor input ǀ Analog control output ǀ Analog output for monitor of axis position	Digital trigger input ǀ Digital trigger output ǀ Digital output servo cycle ǀ Analog control input ǀ Analog sensor input ǀ Analog control output ǀ Analog output for monitor of axis position	Digital trigger input ǀ Digital trigger output ǀ Digital output servo cycle ǀ Analog control input ǀ Analog sensor input ǀ Analog control output ǀ Analog output for monitor of axis position	Digital trigger input ǀ Digital trigger output ǀ Digital output servo cycle ǀ Analog control input ǀ Analog sensor input ǀ Analog control output ǀ Analog output for monitor of axis position
On/off switch	Hardware switch on/off	Hardware switch on/off	Hardware switch on/off	Hardware switch on/off	Hardware switch on/off	Hardware switch on/off	Hardware switch on/off	Hardware switch on/off	Hardware switch on/off	Hardware switch on/off	Hardware switch on/off	Hardware switch on/off	Hardware switch on/off	Hardware switch on/off	Hardware switch on/off
Display and indicators	Servo ǀ Error LED ǀ Power LED ǀ Overflow LED	Servo ǀ Error LED ǀ Power LED ǀ Overflow LED	Servo ǀ Error LED ǀ Power LED ǀ Overflow LED	Servo ǀ Error LED ǀ Power LED ǀ Overflow LED	Servo ǀ Error LED ǀ Power LED ǀ Overflow LED	Servo ǀ Error LED ǀ Power LED ǀ Overflow LED	Servo ǀ Error LED ǀ Power LED ǀ Overflow LED	Servo ǀ Error LED ǀ Power LED ǀ Overflow LED	Servo ǀ Error LED ǀ Power LED ǀ Overflow LED	Servo ǀ Error LED ǀ Power LED ǀ Overflow LED	Servo ǀ Error LED ǀ Power LED ǀ Overflow LED	Servo ǀ Error LED ǀ Power LED ǀ Overflow LED	Servo ǀ Error LED ǀ Power LED ǀ Overflow LED	Servo ǀ Error LED ǀ Power LED ǀ Overflow LED	Servo ǀ Error LED ǀ Power LED ǀ Overflow LED
Command set	GCS 2.0	GCS 2.0	GCS 2.0	GCS 2.0	GCS 2.0	GCS 2.0	GCS 2.0	GCS 2.0	GCS 2.0	GCS 2.0	GCS 2.0	GCS 2.0	GCS 2.0	GCS 2.0	GCS 2.0
User software	PIMikroMove	PIMikroMove	PIMikroMove	PIMikroMove	PIMikroMove	PIMikroMove	PIMikroMove	PIMikroMove	PIMikroMove	PIMikroMove	PIMikroMove	PIMikroMove	PIMikroMove	PIMikroMove	PIMikroMove
Application programming interfaces	C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python	C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python	C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python	C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python	C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python	C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python	C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python	C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python	C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python	C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python	C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python	C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python	C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python	C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python	C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python
Linearization	DDL option (Dynamic Digital Linearization) ǀ 4th order polynomials	DDL option (Dynamic Digital Linearization) ǀ 4th order polynomials	DDL option (Dynamic Digital Linearization) ǀ 4th order polynomials	DDL option (Dynamic Digital Linearization) ǀ 4th order polynomials	DDL option (Dynamic Digital Linearization) ǀ 4th order polynomials	DDL option (Dynamic Digital Linearization) ǀ 4th order polynomials	DDL option (Dynamic Digital Linearization) ǀ 4th order polynomials	DDL option (Dynamic Digital Linearization) ǀ 4th order polynomials	DDL option (Dynamic Digital Linearization) ǀ 4th order polynomials	DDL option (Dynamic Digital Linearization) ǀ 4th order polynomials	DDL option (Dynamic Digital Linearization) ǀ 4th order polynomials	DDL option (Dynamic Digital Linearization) ǀ 4th order polynomials	DDL option (Dynamic Digital Linearization) ǀ 4th order polynomials	DDL option (Dynamic Digital Linearization) ǀ 4th order polynomials	DDL option (Dynamic Digital Linearization) ǀ 4th order polynomials
Digital inputs	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Digital input signal	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Digital outputs	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Digital output signal	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Analog inputs	—	4	4	—	—	4	4	—	—	4	4	—	—	—	—
Analog input signal	—	-10 V to +10 V or -5 V to +5 V	-10 V to +10 V or -5 V to +5 V	—	—	-10 V to +10 V or -5 to +5 V	-10 V to +10 V or -5 V to +5 V	—	—	-10 V to +10 V or -5 V to +5 V	-10 V to +10 V or -5 V to +5 V	—	—	—	—
Digital resolution of the analog input	—	18 bit	18 bit	—	—	18 bit	18 bit	—	—	18 bit	18 bit	—	—	—	—
Analog outputs	—	1	1	—	—	1	1	—	—	1	1	—	—	—	—
Analog output signal	—	-10 V to +10 V	-10 V to +10 V	—	—	-10 V to +10 V	-10 V to +10 V	—	—	-10 V to +10 V	-10 V to +10 V	—	—	—	—
Digital resolution of the analog output	—	20 bit	20 bit	—	—	20 bit	20 bit	—	—	20 bit	20 bit	—	—	—	—
Supported temperature sensor mechanical unit	—	—	—	—	PT1000 on piezo actuator	PT1000 on piezo actuator	PT1000 on piezo actuator	PT1000 on piezo actuator	PT1000 on piezo actuator	PT1000 on piezo actuator	PT1000 on piezo actuator	PT1000 on piezo actuator	PT1000 on piezo actuator	PT1000 on piezo actuator	PT1000 on piezo actuator
Amplifier	E-727.3CD	E-727.3CDA	E-727.3CDAP	E-727.3CDP	E-727.3RD	E-727.3RDA	E-727.3RDAP	E-727.3RDP	E-727.3SD	E-727.3SDA	E-727.3SDAP	E-727.3SDP	E-727.4RD	E-727.4SD	E-727.4SDP
Resolution DAC/voltage resolution	20 bit	20 bit	20 bit	20 bit	20 bit	20 bit	20 bit	20 bit	20 bit	20 bit	20 bit	20 bit	20 bit	20 bit	20 bit
Amplifier bandwidth	6.5 kHz	6.5 kHz	6.5 kHz	6.5 kHz	6.5 kHz	6.5 kHz	6.5 kHz	6.5 kHz	6.5 kHz	6.5 kHz	6.5 kHz	6.5 kHz	6.5 kHz	6.5 kHz	6.5 kHz
Number of amplifier channels	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Sensor	E-727.3CD	E-727.3CDA	E-727.3CDAP	E-727.3CDP	E-727.3RD	E-727.3RDA	E-727.3RDAP	E-727.3RDP	E-727.3SD	E-727.3SDA	E-727.3SDAP	E-727.3SDP	E-727.4RD	E-727.4SD	E-727.4SDP
Sensor channels	3	3	3	3	4	4	4	4	4	4	4	4	4	4	4
Digital resolution for the sensor input	20 bit	20 bit	20 bit	20 bit	20 bit	20 bit	20 bit	20 bit	20 bit	20 bit	20 bit	20 bit	20 bit	20 bit	20 bit
Sensor bandwidth	10 kHz	10 kHz	10 kHz	10 kHz	10 kHz	10 kHz	10 kHz	10 kHz	10 kHz	10 kHz	10 kHz	10 kHz	10 kHz	10 kHz	10 kHz
Sensor scanning frequency	100000 Hz	100000 Hz	100000 Hz	100000 Hz	100000 Hz	100000 Hz	100000 Hz	100000 Hz	100000 Hz	100000 Hz	100000 Hz	100000 Hz	100000 Hz	100000 Hz	100000 Hz
Electrical properties	E-727.3CD	E-727.3CDA	E-727.3CDAP	E-727.3CDP	E-727.3RD	E-727.3RDA	E-727.3RDAP	E-727.3RDP	E-727.3SD	E-727.3SDA	E-727.3SDAP	E-727.3SDP	E-727.4RD	E-727.4SD	E-727.4SDP
Output voltage	-30 to +130 (±3) V	-30 to +130 (±3) V	-30 to +130 (±3) V	-30 to +130 (±3) V	-30 to +130 (±3) V	-30 to +130 (±3) V	-30 to +130 (±3) V	-30 to +130 (±3) V	-30 to +130 (±3) V	-30 to +130 (±3) V	-30 to +130 (±3) V	-30 to +130 (±3) V	-30 to +130 (±3) V	-30 to +130 (±3) V	-30 to +130 (±3) V
Short-circuit proof	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Average output power per channel	14 W	14 W	30 W	30 W	14 W	14 W	30 W	30 W	14 W	14 W	30 W	30 W	14 W	14 W	30 W
Peak output power per channel	28 W	28 W	270 W	270 W	28 W	28 W	270 W	270 W	28 W	28 W	270 W	270 W	28 W	28 W	270 W
Peak output power per channel, time limit	30 ms	30 ms	10 ms	10 ms	30 ms	30 ms	10 ms	10 ms	30 ms	30 ms	10 ms	10 ms	30 ms	30 ms	10 ms
Average output current per channel	75 mA	75 mA	200 mA	200 mA	75 mA	75 mA	200 mA	200 mA	75 mA	75 mA	200 mA	200 mA	75 mA	75 mA	200 mA
Peak output current per channel	180 mA	180 mA	1500 mA	1500 mA	180 mA	180 mA	1500 mA	1500 mA	180 mA	180 mA	1500 mA	1500 mA	180 mA	180 mA	1500 mA
Peak output current per channel, time limit	30 ms	30 ms	10 ms	10 ms	30 ms	30 ms	10 ms	10 ms	30 ms	30 ms	10 ms	10 ms	30 ms	30 ms	10 ms
Miscellaneous	E-727.3CD	E-727.3CDA	E-727.3CDAP	E-727.3CDP	E-727.3RD	E-727.3RDA	E-727.3RDAP	E-727.3RDP	E-727.3SD	E-727.3SDA	E-727.3SDAP	E-727.3SDP	E-727.4RD	E-727.4SD	E-727.4SDP
Motor/actuator connector	D-sub 25W3	D-sub 25W3	D-sub 25W3	D-sub 25W3	D-sub 37 (f)	D-sub 37 (f)	D-sub 37 (f)	D-sub 37 (f)	D-sub 37 (f)	D-sub 37 (f)	D-sub 37 (f)	D-sub 37 (f)	D-sub 37 (f)	D-sub 37 (f)	D-sub 37 (f)
Sensor connector	D-sub 25W3	D-sub 25W3	D-sub 25W3	D-sub 25W3	D-sub 37 (f)	D-sub 37 (f)	D-sub 37 (f)	D-sub 37 (f)	D-sub 37 (f)	D-sub 37 (f)	D-sub 37 (f)	D-sub 37 (f)	D-sub 37 (f)	D-sub 37 (f)	D-sub 37 (f)
Connector digital input	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)
Connector digital output	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)	MDR 14-pole (f)
Connector TCP/IP	RJ45 socket, 8P8C	RJ45 socket, 8P8C	RJ45 socket, 8P8C	RJ45 socket, 8P8C	RJ45 socket, 8P8C	RJ45 socket, 8P8C	RJ45 socket, 8P8C	RJ45 socket, 8P8C	RJ45 socket, 8P8C	RJ45 socket, 8P8C	RJ45 socket, 8P8C	RJ45 socket, 8P8C	RJ45 socket, 8P8C	RJ45 socket, 8P8C	RJ45 socket, 8P8C
Connector USB	USB socket type B	USB socket type B	USB socket type B	USB socket type B	USB socket type B	USB socket type B	USB socket type B	USB socket type B	USB socket type B	USB socket type B	USB socket type B	USB socket type B	USB socket type B	USB socket type B	USB socket type B
Connector RS-232	D-sub 9 (m)	D-sub 9 (m)	D-sub 9 (m)	D-sub 9 (m)	D-sub 9 (m)	D-sub 9 (m)	D-sub 9 (m)	D-sub 9 (m)	D-sub 9 (m)	D-sub 9 (m)	D-sub 9 (m)	D-sub 9 (m)	D-sub 9 (m)	D-sub 9 (m)	D-sub 9 (m)
Connector SPI	DisplayPort	DisplayPort	DisplayPort	DisplayPort	DisplayPort	DisplayPort	DisplayPort	DisplayPort	DisplayPort	DisplayPort	DisplayPort	DisplayPort	DisplayPort	DisplayPort	DisplayPort
Connector for supply voltage	M8 4-pole (m)	M8 4-pole (m)	M8 4-pole (m)	M8 4-pole (m)	M8 4-pole (m)	M8 4-pole (m)	M8 4-pole (m)	M8 4-pole (m)	M8 4-pole (m)	M8 4-pole (m)	M8 4-pole (m)	M8 4-pole (m)	M8 4-pole (m)	M8 4-pole (m)	M8 4-pole (m)
Operating voltage	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V
Power adapter	Included in the scope of delivery ǀ Power adapter 24 V DC	Included in the scope of delivery ǀ Power adapter 24 V DC	Included in the scope of delivery ǀ Power adapter 24 V DC	Included in the scope of delivery ǀ Power adapter 24 V DC	Included in the scope of delivery ǀ Power adapter 24 V DC	Included in the scope of delivery ǀ Power adapter 24 V DC	Included in the scope of delivery ǀ Power adapter 24 V DC	Included in the scope of delivery ǀ Power adapter 24 V DC	Included in the scope of delivery ǀ Power adapter 24 V DC	Included in the scope of delivery ǀ Power adapter 24 V DC	Included in the scope of delivery ǀ Power adapter 24 V DC	Included in the scope of delivery ǀ Power adapter 24 V DC	Included in the scope of delivery ǀ Power adapter 24 V DC	Included in the scope of delivery ǀ Power adapter 24 V DC	Included in the scope of delivery ǀ Power adapter 24 V DC
Maximum power consumption	80 W	80 W	84 W	84 W	80 W	80 W	84 W	84 W	80 W	80 W	84 W	84 W	80 W	80 W	84 W
Operating temperature range	5 to 40 °C	5 to 40 °C	5 to 40 °C	5 to 40 °C	5 to 40 °C	5 to 40 °C	5 to 40 °C	5 to 40 °C	5 to 40 °C	5 to 40 °C	5 to 40 °C	5 to 40 °C	5 to 40 °C	5 to 40 °C	5 to 40 °C
Overall mass	2400 g	2400 g	3300 g	3300 g	2400 g	2400 g	3300 g	3300 g	2400 g	2400 g	3300 g	3300 g	2400 g	2400 g	3300 g
Connector analog input	—	D-sub 15 (f)	D-sub 15 (f)	—	—	D-sub 15 (f)	D-sub 15 (f)	—	—	D-sub 15 (f)	D-sub 15 (f)	—	—	—	—
Connector analog output	—	D-sub 15 (f)	D-sub 15 (f)	—	—	D-sub 15 (f)	D-sub 15 (f)	—	—	D-sub 15 (f)	D-sub 15 (f)	—	—	—	—
Connector for sensor monitor	—	D-sub 15 (f)	D-sub 15 (f)	—	—	D-sub 15 (f)	D-sub 15 (f)	—	—	D-sub 15 (f)	D-sub 15 (f)	—	—	—	—

Maximum power consumption without load:

- E-727.x, E-727.xA: 24 W

- E-727.xP, E-727.xAP: 40 W

Fuse:

- E-727.x, E-727.xA: 1 x T3.15 AH, 5 x 20 mm

- E-727.xP, E-727.xAP: 1 x T4 AH, 5 x 20 mm
