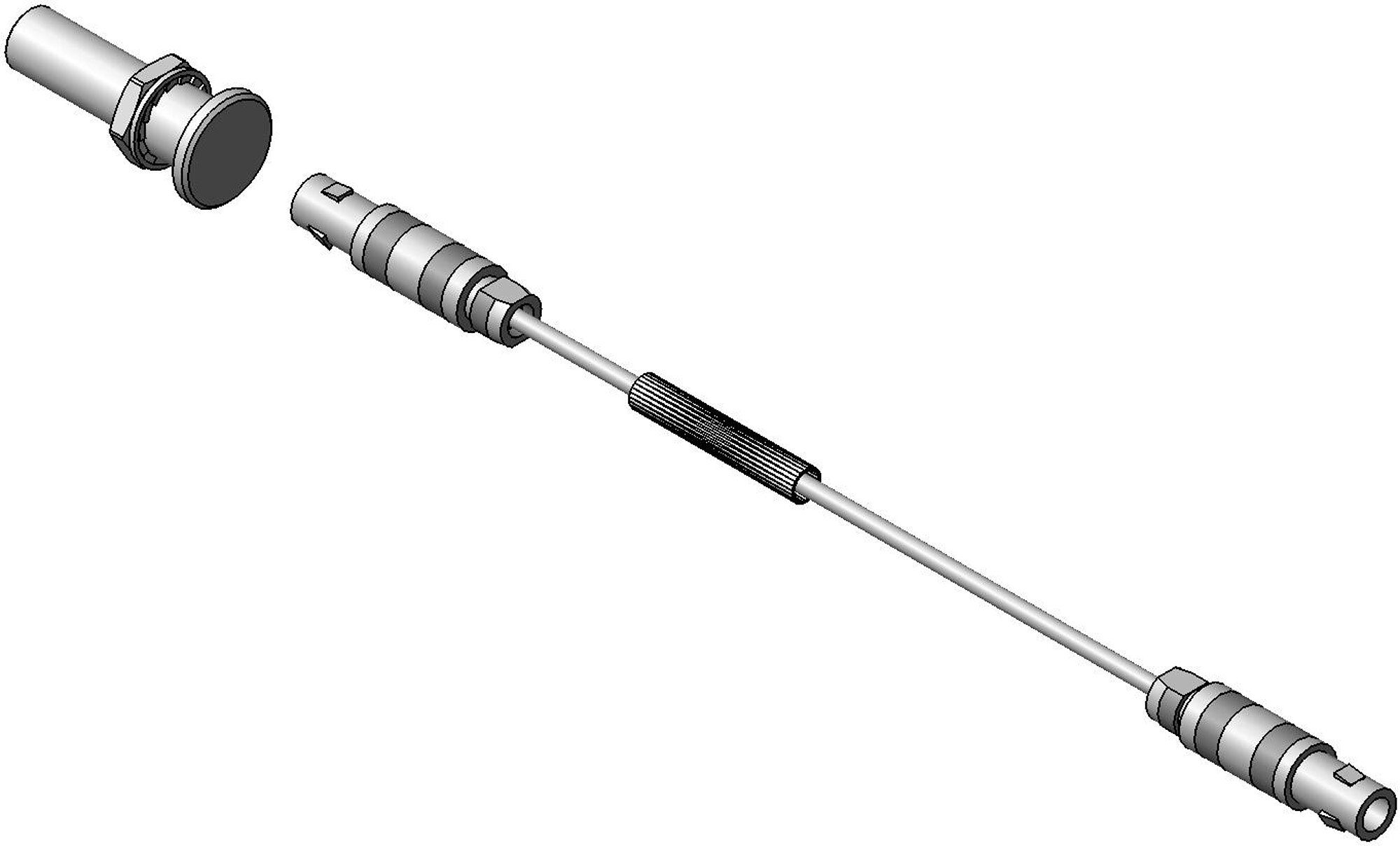

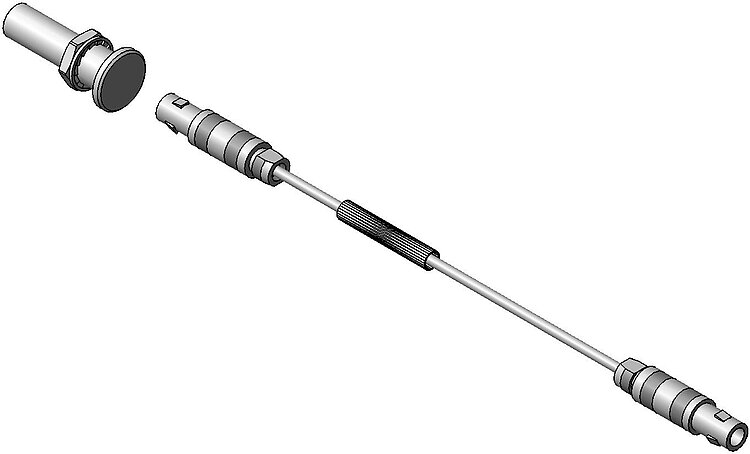

P-891.VA • P-892.VA Vacuum Feedthrough

Accessories for Vacuum-Compatible Piezo Positioners

  • Closure and port for vacuum chambers
  • Vacuum compatible to 10-6 hPa
P-891.VA • P-892.VA Vacuum Feedthrough
Description du produit Spécifications Téléchargements Devis / Commande

Connection of standard controllers to vacuum applications

Vacuum feedthroughs are the interface between the positioner within the vacuum enclosure and the controller on the air side. With their help, vacuum applications can be connected to standard controllers. The P-891.VA and P-892.VA vacuum feedthroughs are available for low-voltage piezo systems.

Specifications

Datasheet

Datasheet P-891.VA • P-892.VA

Version / Date
2022-05-25
pdf - 479 KB
Version / Date
2022-05-25
pdf - 477 KB

Downloads

Datasheet

Datasheet

Datasheet P-891.VA • P-892.VA

Version / Date
2022-05-25
pdf - 479 KB
Version / Date
2022-05-25
pdf - 477 KB

3D Models

3D Models

3-D model P-89X.VA

zip - 262 KB
Anglais

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

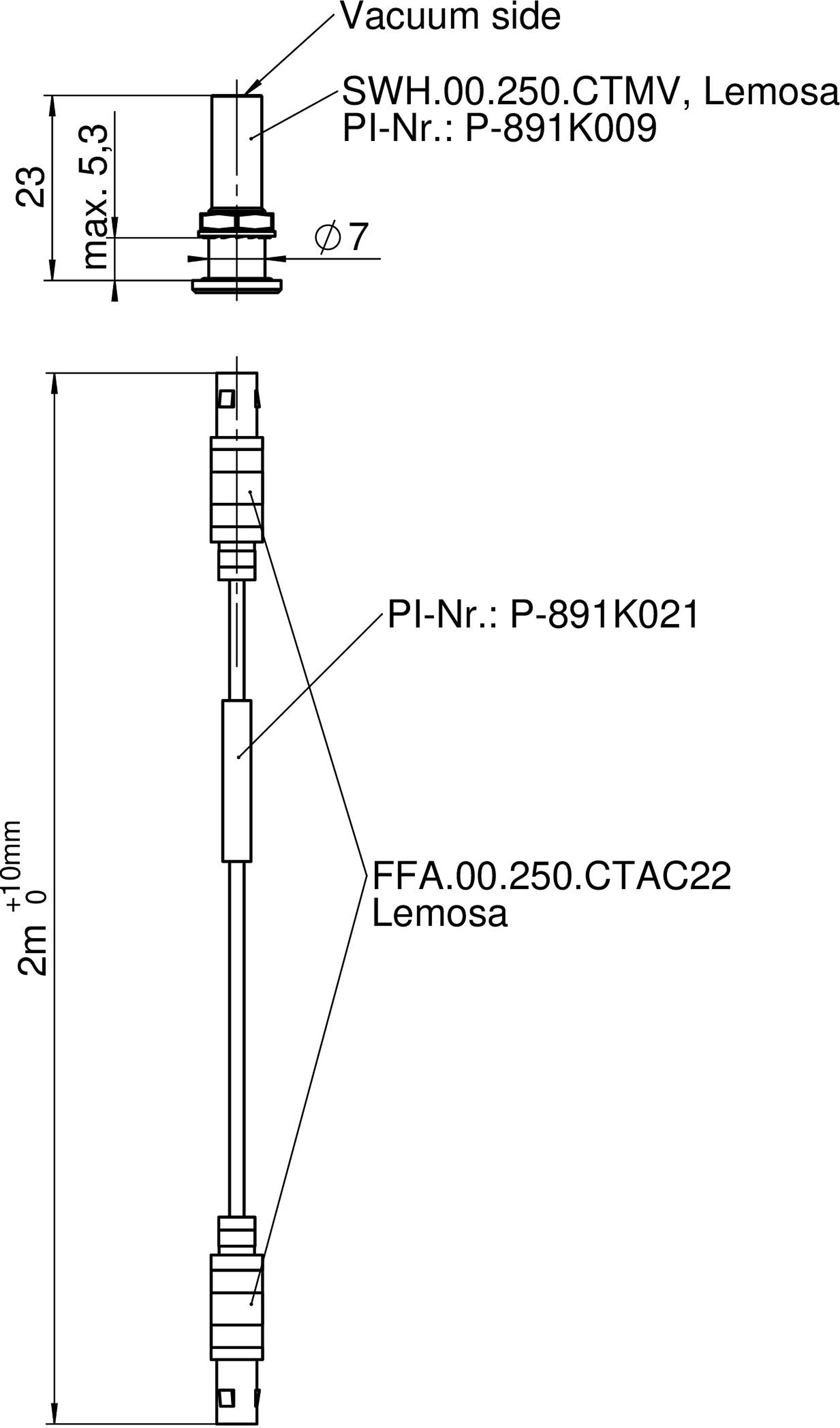

P-891.VA NOUVEAU!

Vacuum feedthrough for piezo voltage, LEMO connector, 100 °C bakeout temperature, suitable for high vacuum (up to 10-6 hPa), including air-side cable, 2 m

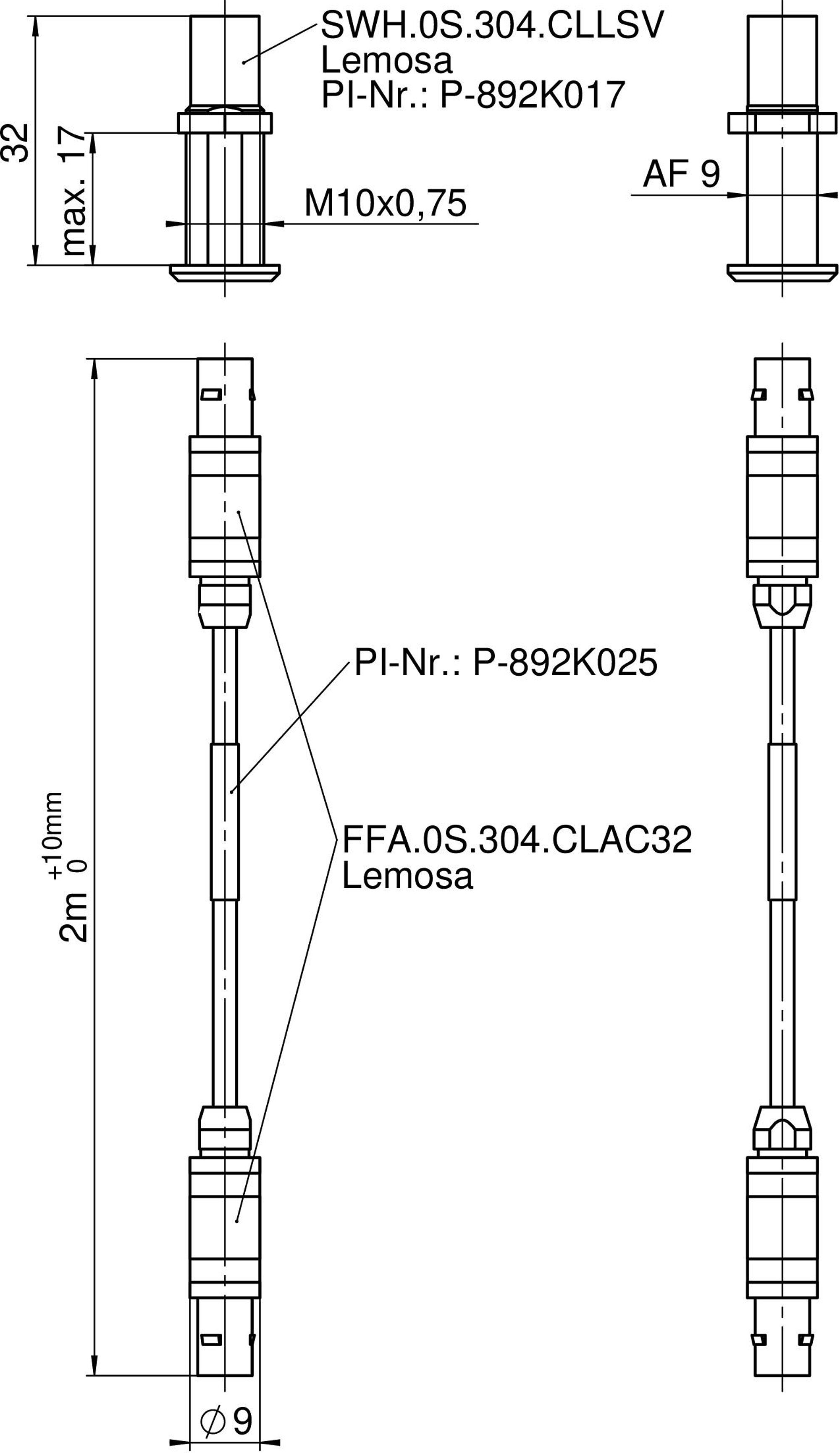

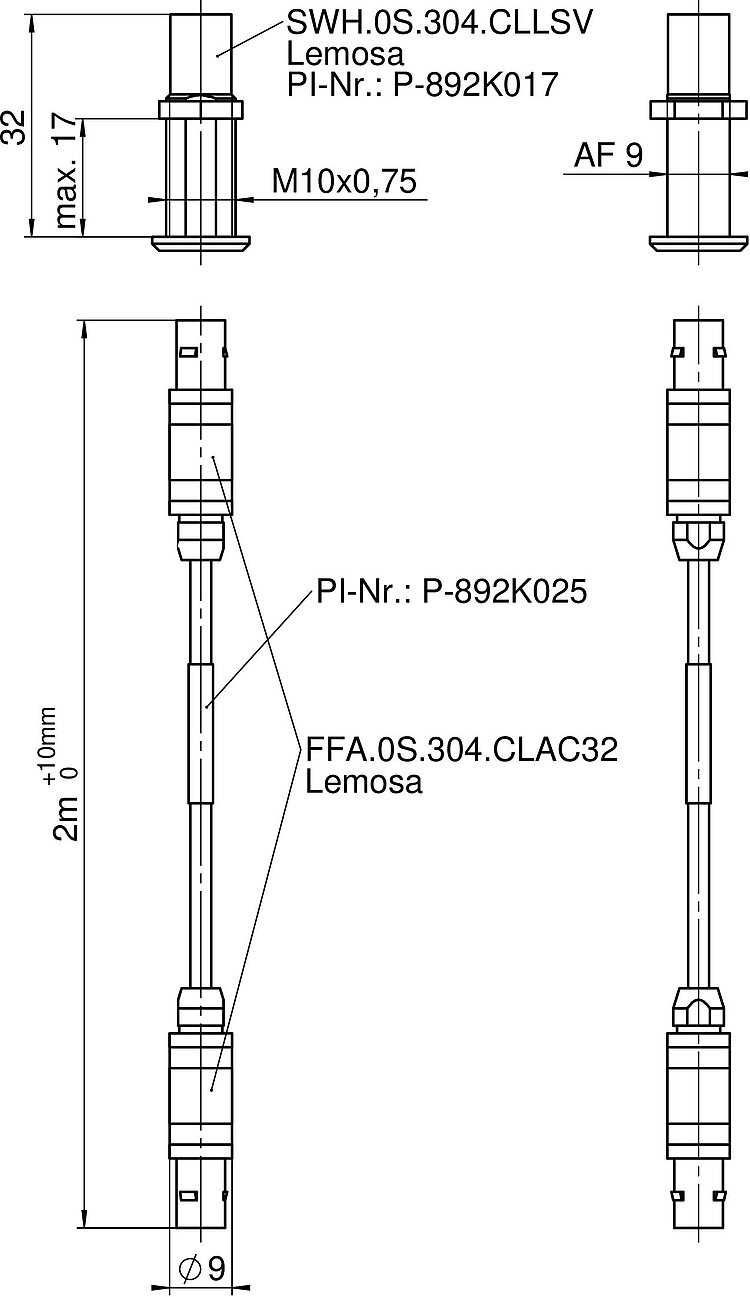

P-892.VA NOUVEAU!

Vacuum feedthrough for DMS sensor signals, LEMO connector, 100 °C bakeout temperature, suitable for high vacuum (up to 10-6 hPa), including air-side cable, 2 m

Contactez un ingénieur!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
