L-886 Low profile Goniometer Motor Stage for FMPA Applications

NOUVEAU

High-Performance and Cost-Efficient

Compact, stackable design with high flexibility: Thanks to its compact design and the ability to combine two goniometers with identical centers of rotation, the L-886 offers maximum flexibility for precise multichannel photonics alignment applications.
Cost-effective complete solution for demanding applications: Unlike comparable solutions, the system offers an attractively priced alternative while meeting requirements such as 24/7 operation, large formats, and industrial operating conditions.
Enhanced system compatibility and modern control integration: The system supports modern communication standards such as EtherCAT (e.g., with ACS controls) and can therefore easily be integrated into existing automated production environments.

Aller au devis / à la commande

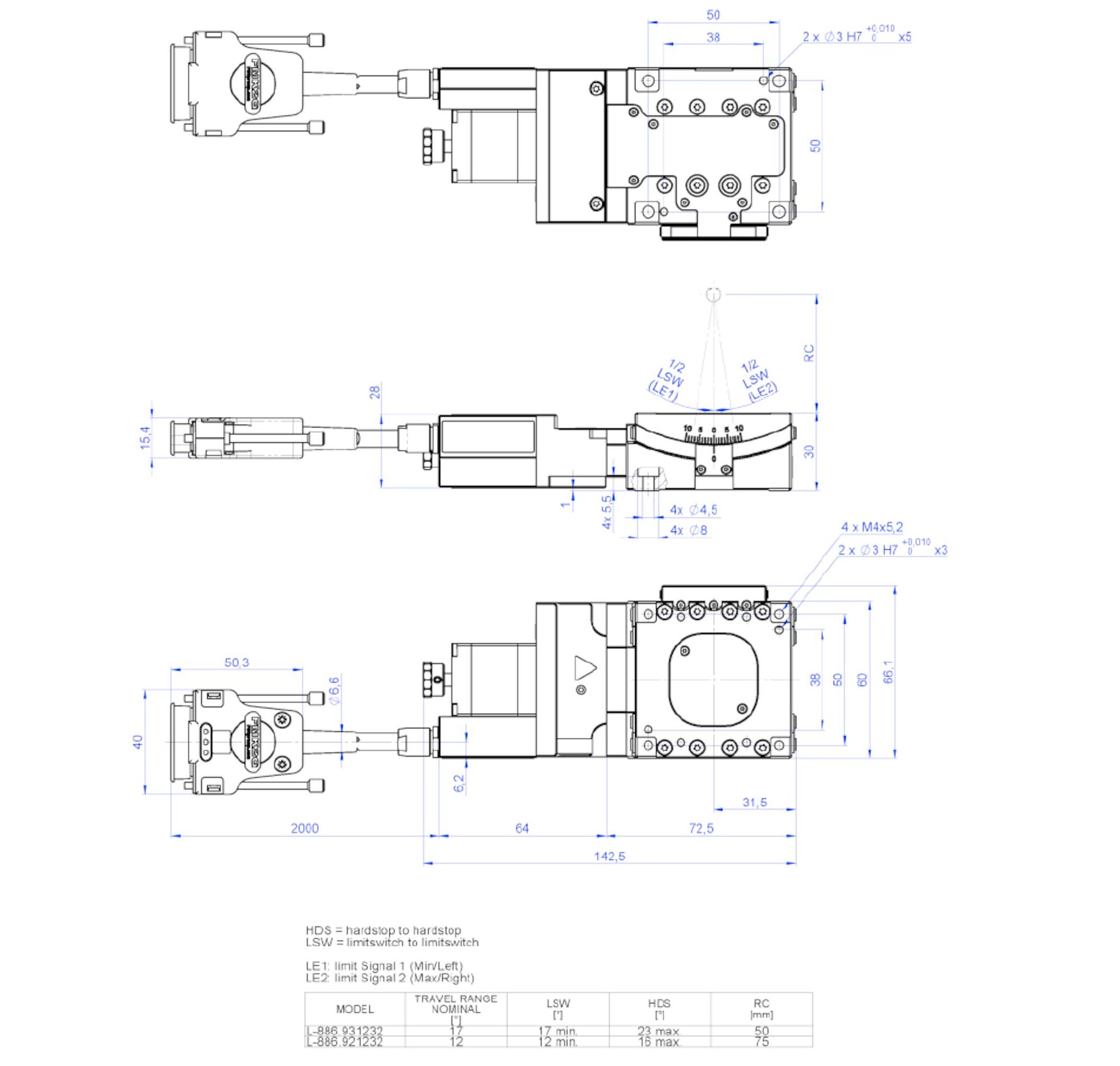

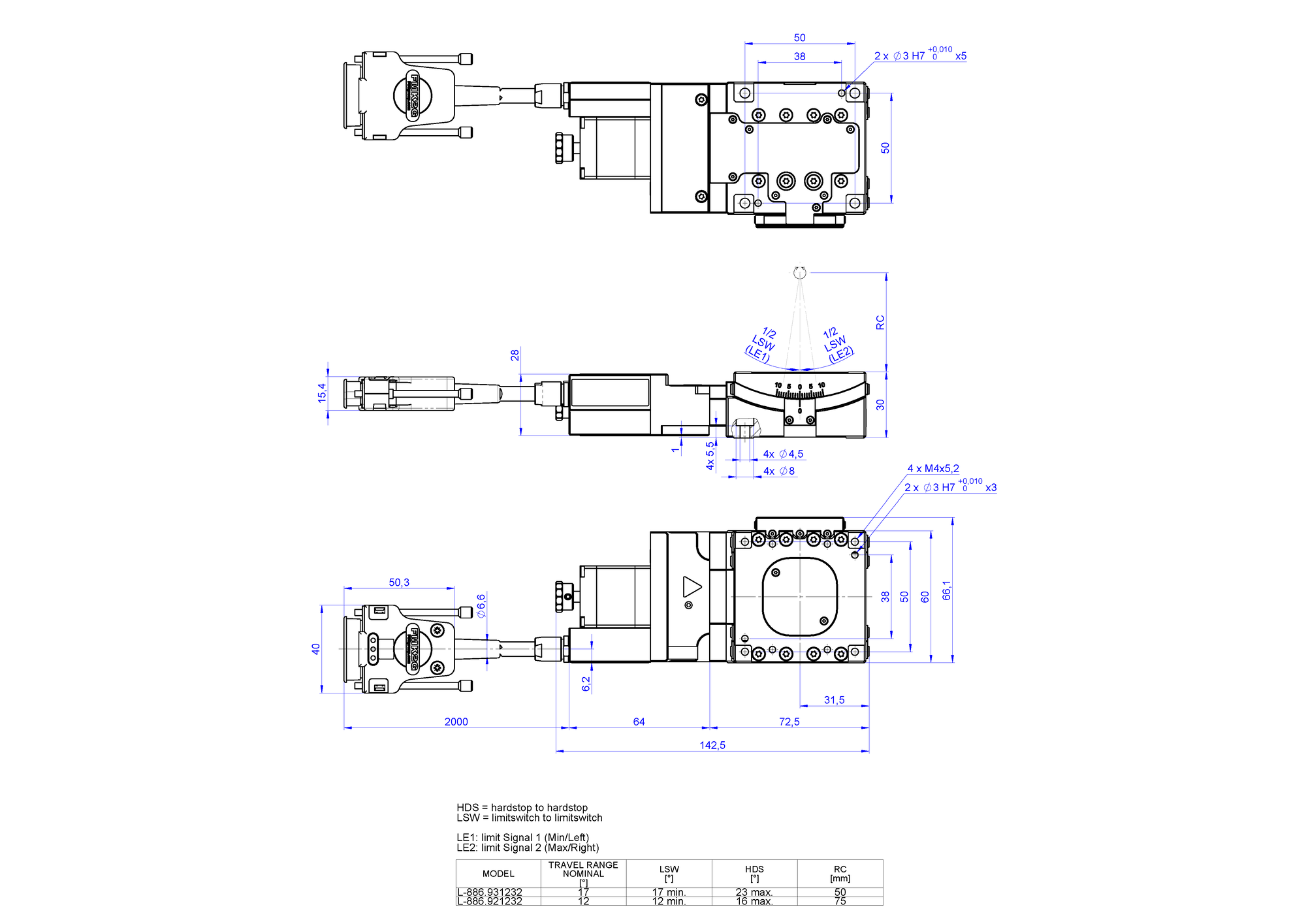

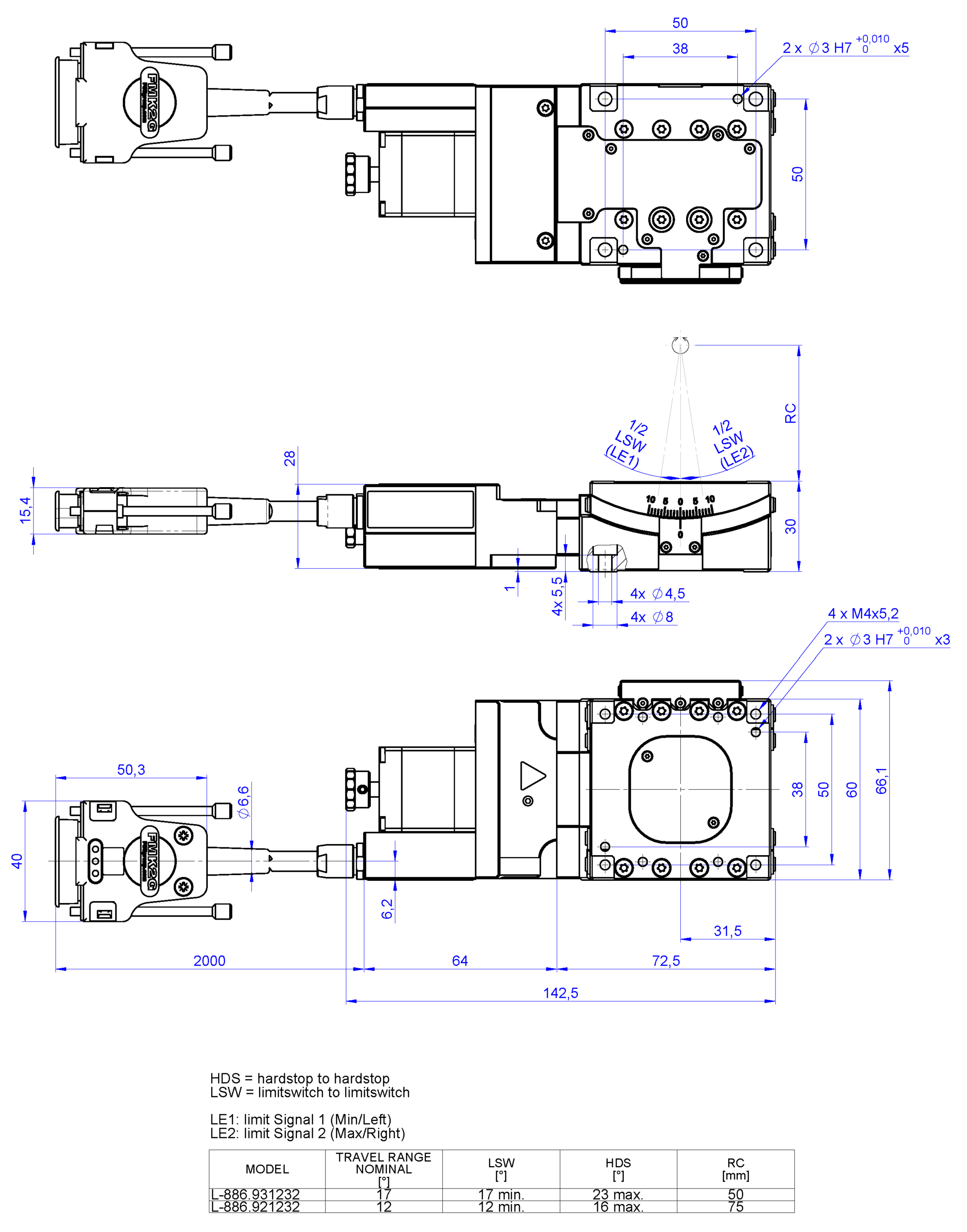

L-886.9x1232, dimensions in mm

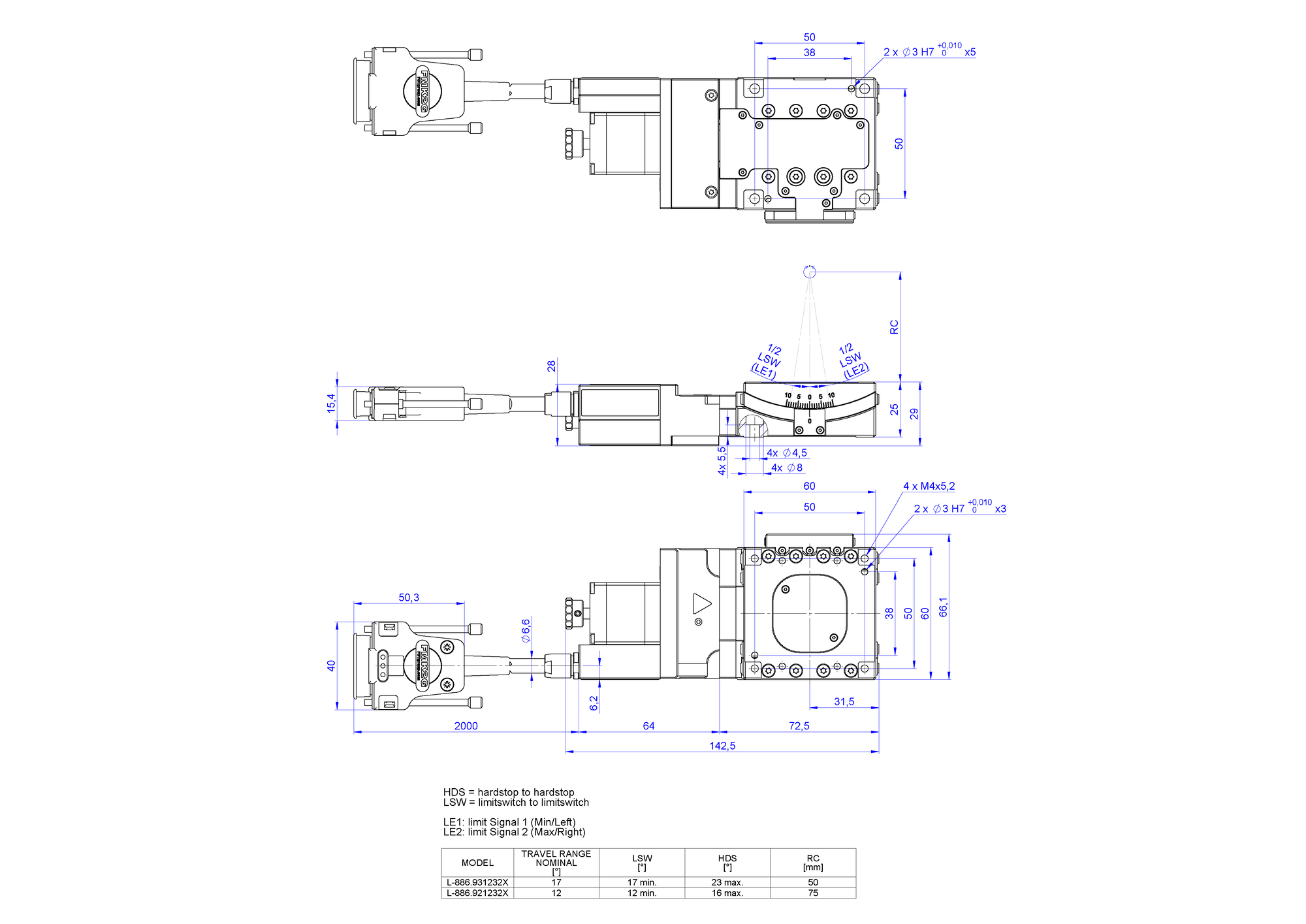

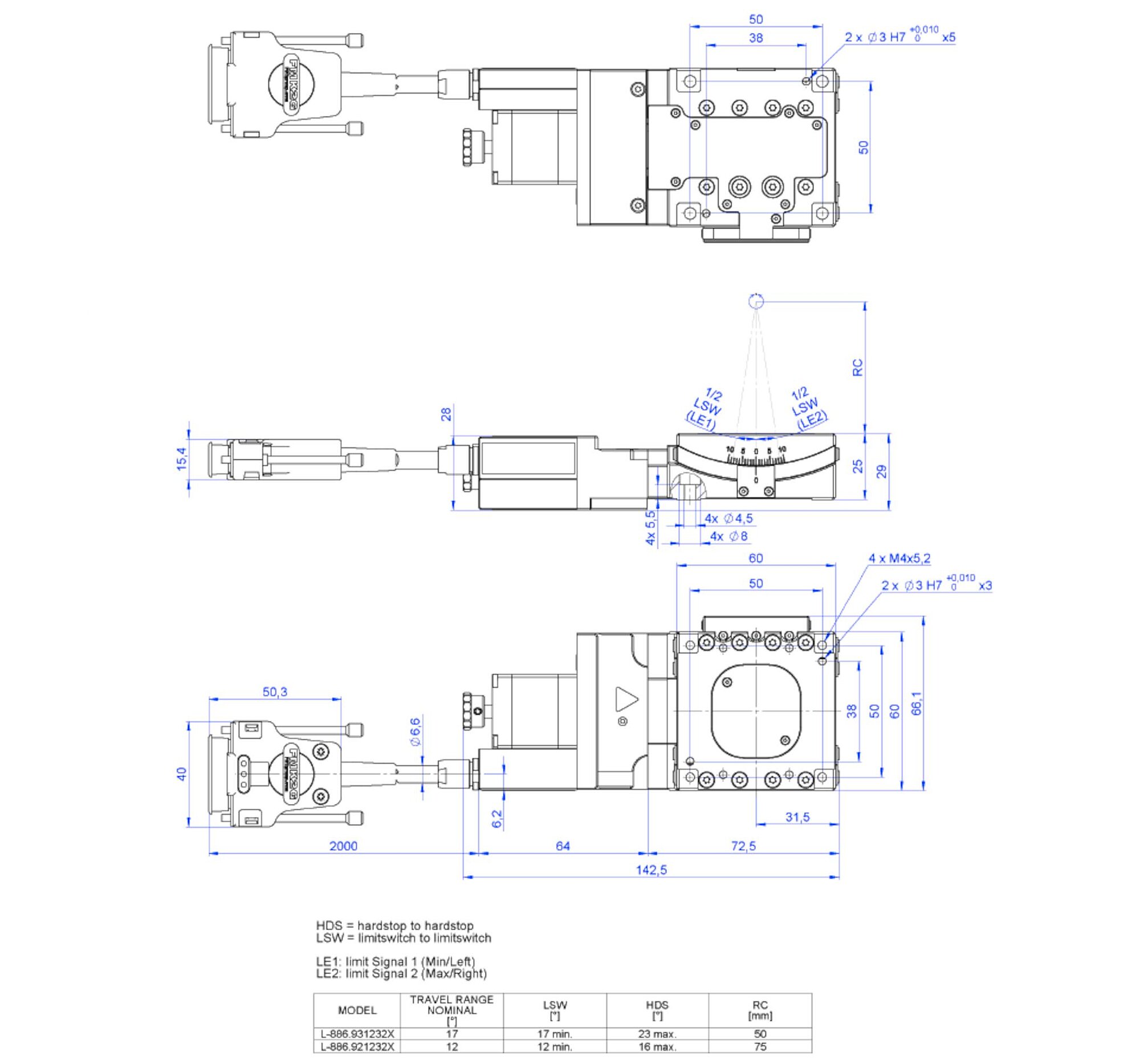

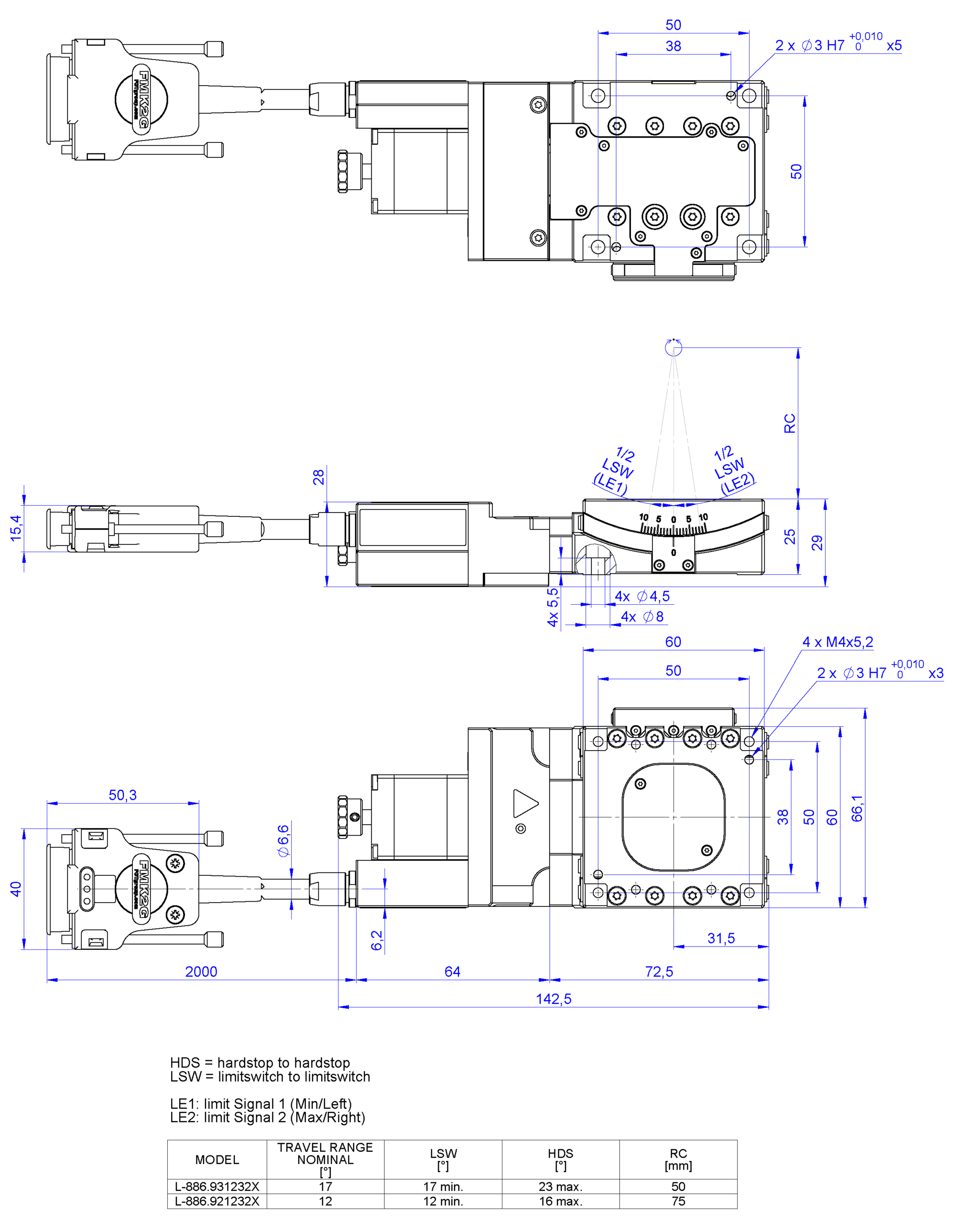

L-886.9x1232X, dimensions in mm

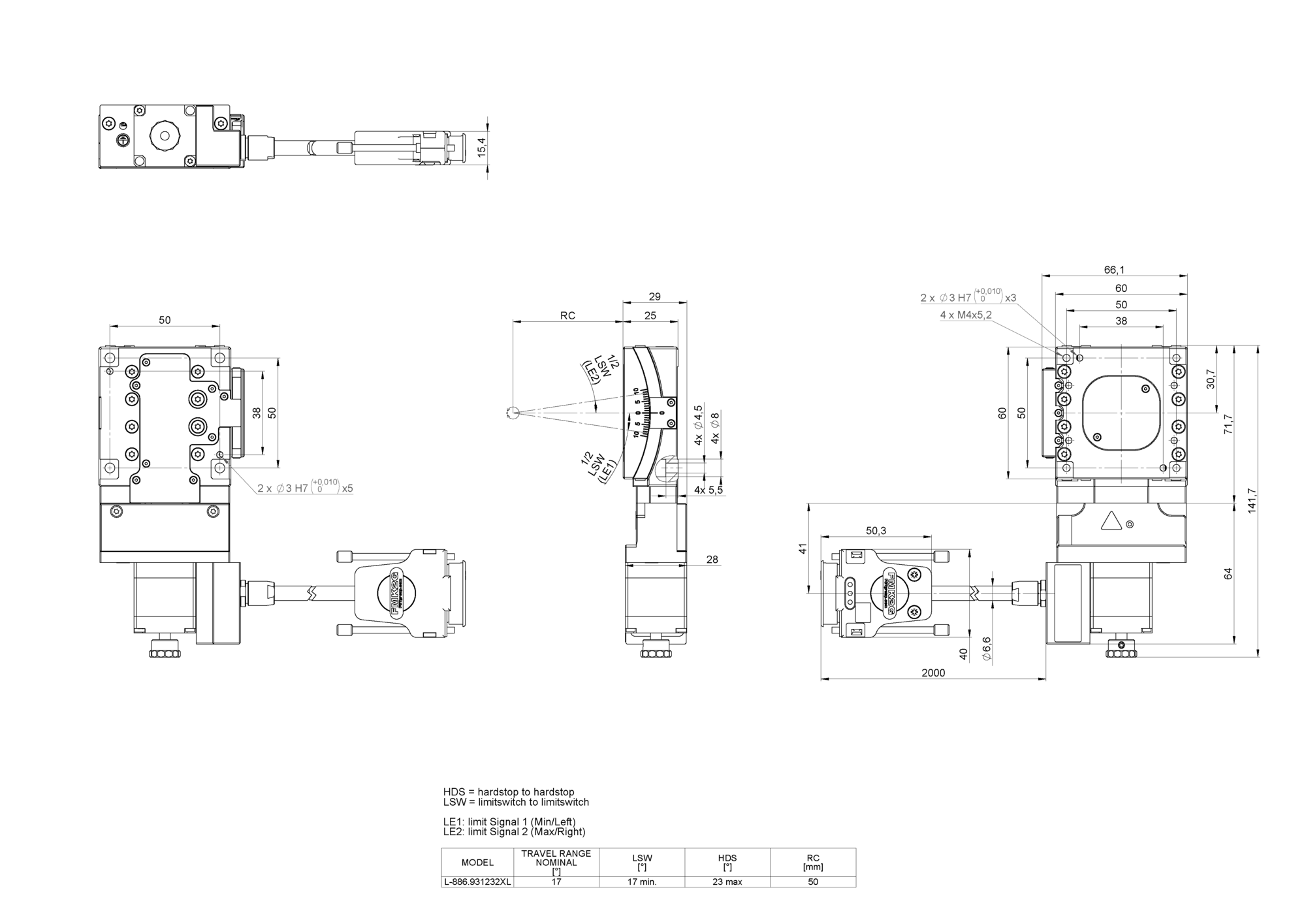

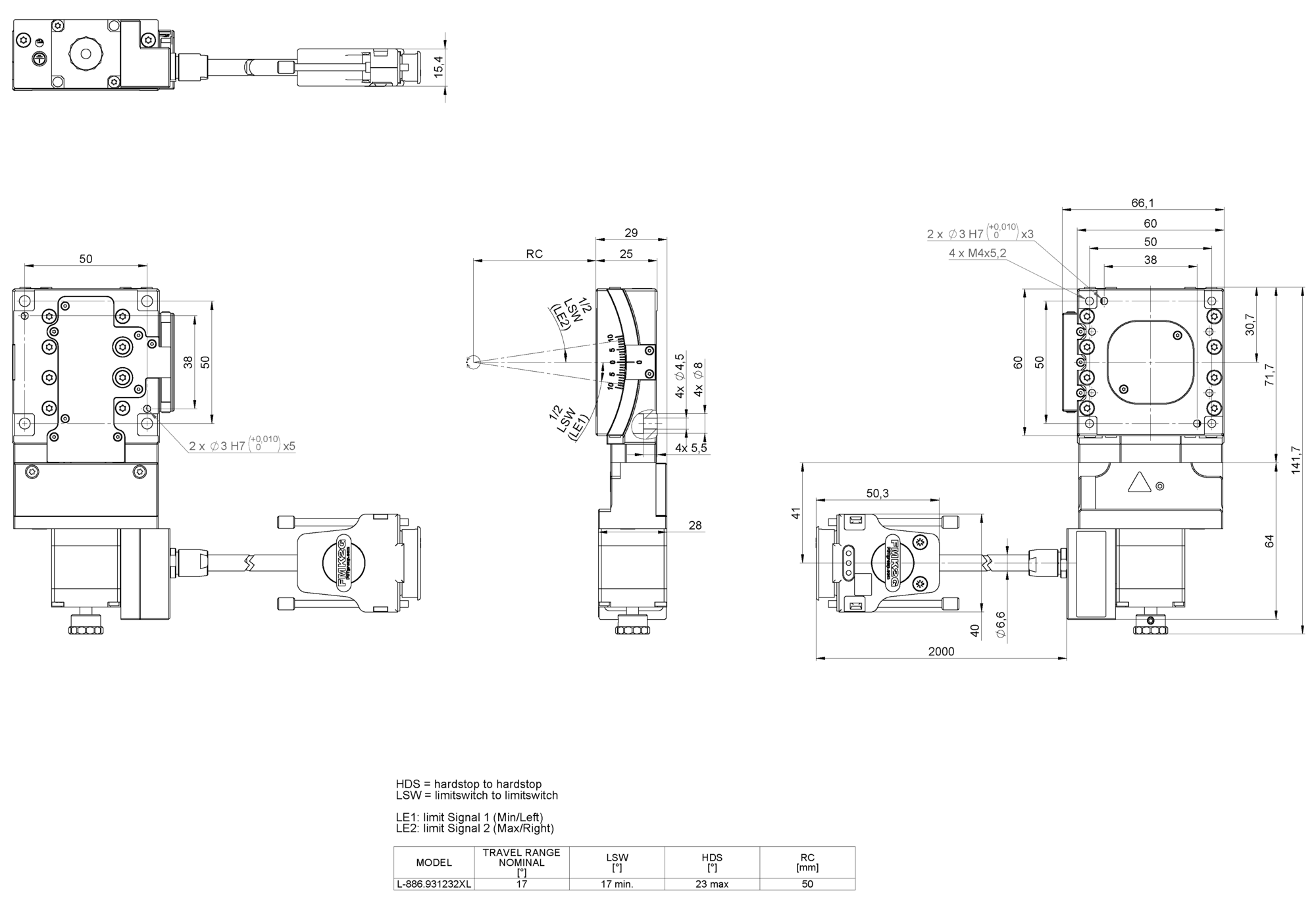

L-886.931232XL, dimensions in mm

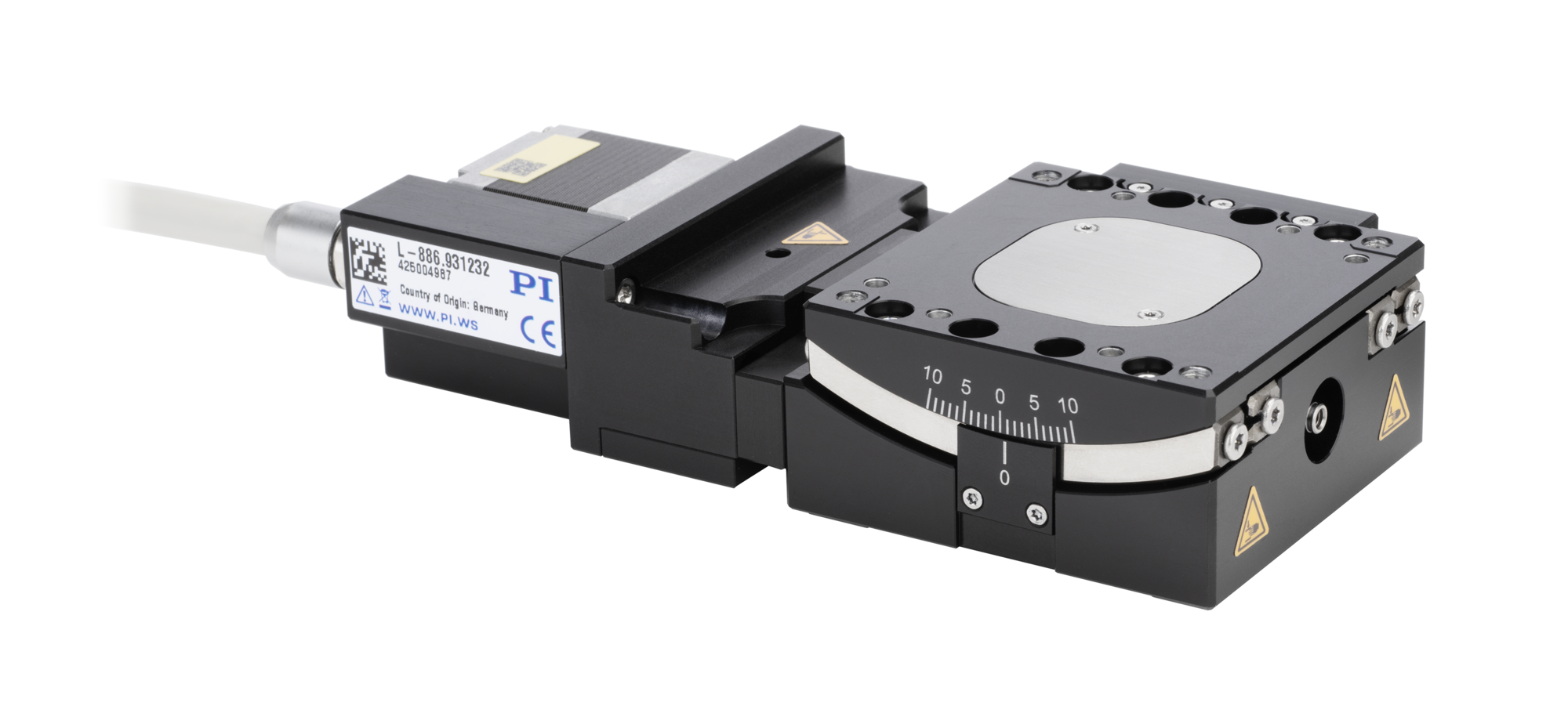

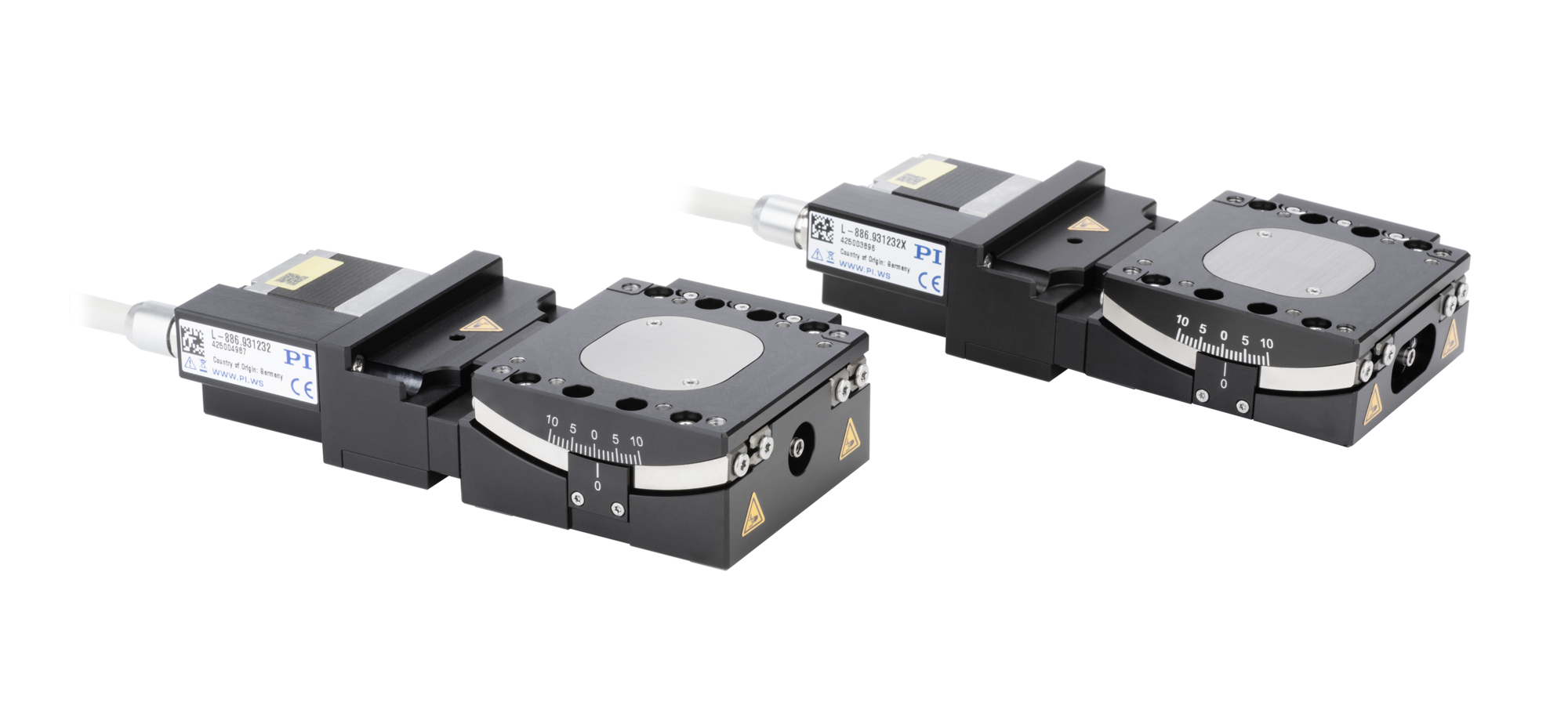

L-886.931232: Goniometer with 17° rotational angle, flat contact surface

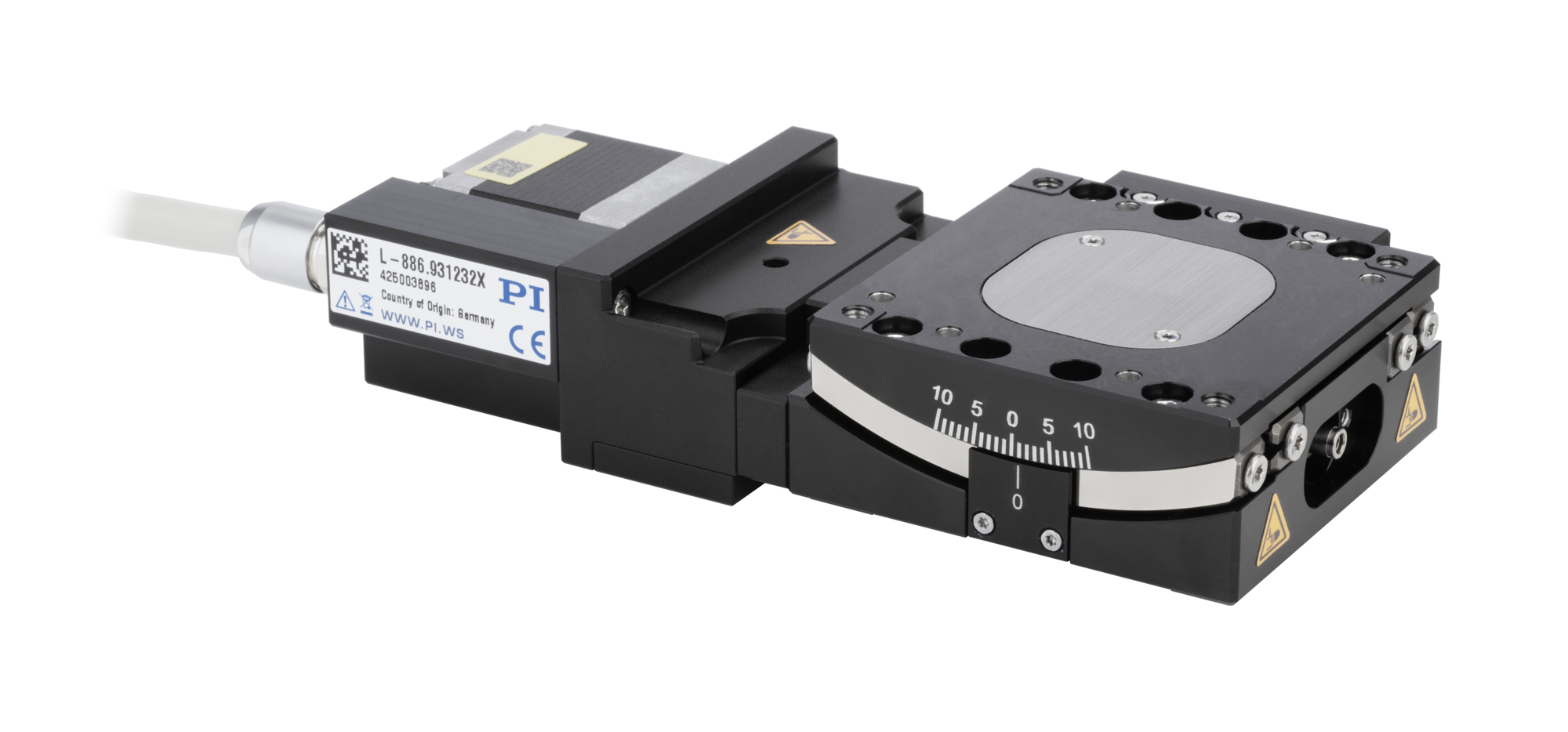

L-886.931232X: Goniometer with 17° rotational angle, for stacked systems

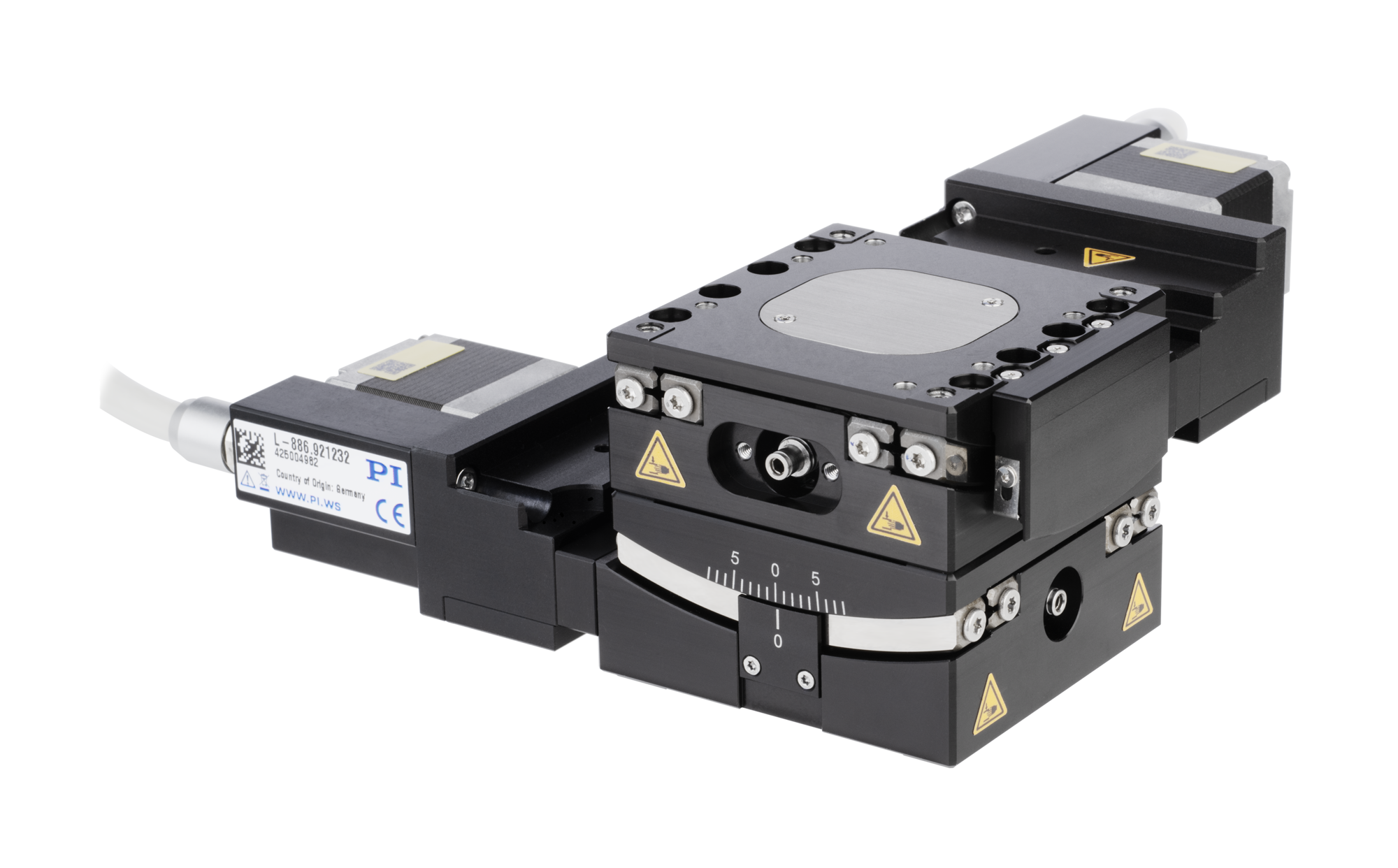

Stacked system consisting of L-886.921232 (bottom) and L-886.931232X (top)

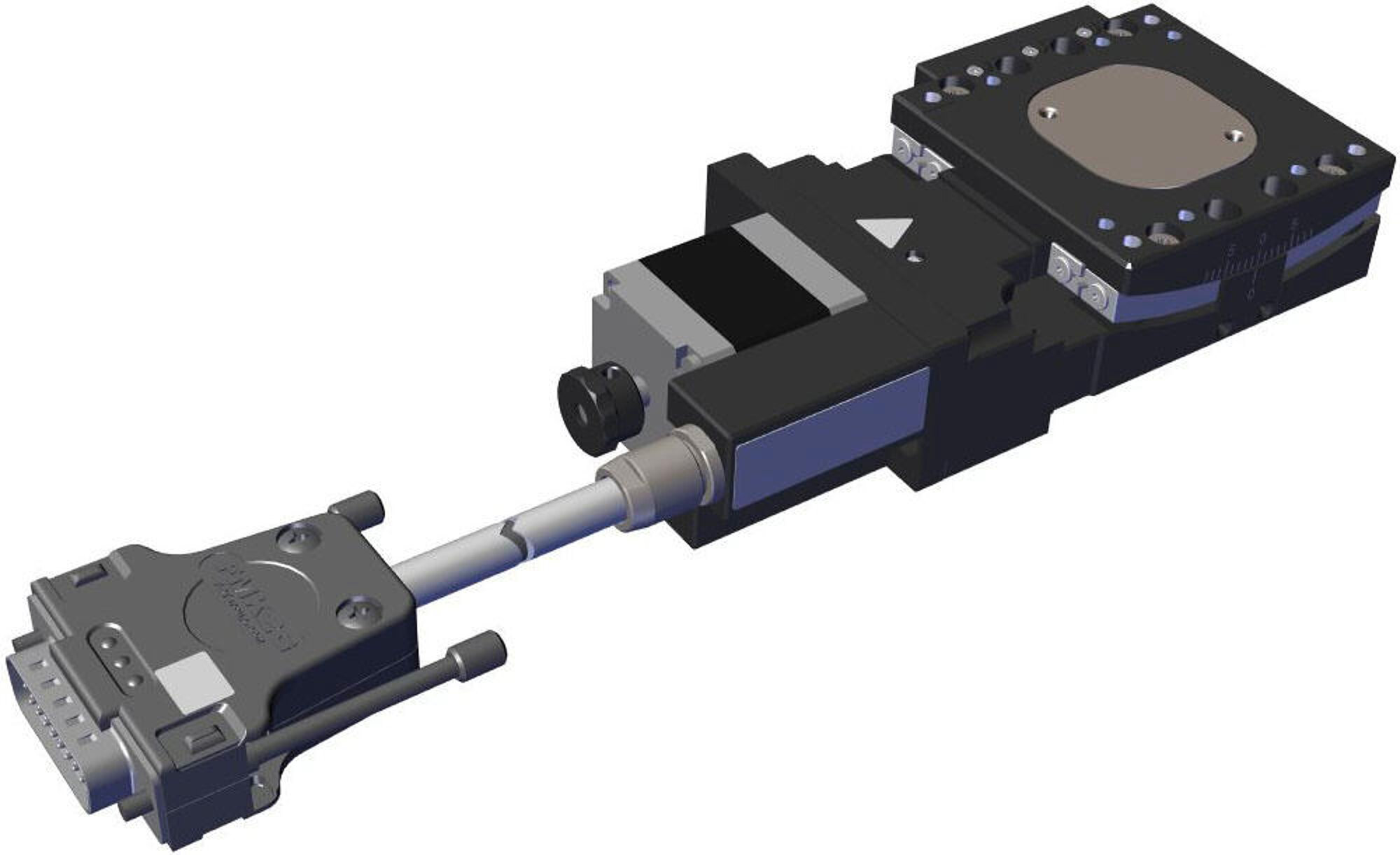

The L-886 is an accurate, cost-effective goniometer stage. It is based on a stepper motor combined with a linear measurement system for high accuracy. The L-886 is designed for cost conscious applications including micro assembly, component alignment, electronics manufacturing, and inspection.

Cost-effective solution, specifically designed for rapid alignment in multichannel photonics
Small, precise, and fast

Applications and use cases

Industrial Automation applications:
- Micro component placement
Alignment applications:
- Optical part alignment

Technology

The L-886 spindle-driven goniometer stages are ideally suited for industrial applications requiring high performance in a compact design. Their high performance is powered by high-resolution stepper motors, high-precision crossed roller guides, and precision linear encoders.

High-resolution 2-phase motors offer performance comparable to that of 5-phase stepper motors, but without the need for expensive drive electronics. Additional linear encoders provide high repeatability during operation.

Installation and usage

The goniometers can be mounted onto L-836 linear stages. The L-886 models are stackable for 2-axis motion. If an L-886.931232X is mounted onto an L-886.921232[X], the models will have a common center of rotation.

Télécharger la fiche technique Aller aux spécifications Aller au devis / à la commande

Datasheet

Version / Date

2026-04-20

pdf - 12 MB

Version / Date

2026-04-20

pdf - 12 MB

Télécharger

Motion	Unit	Tolerance	L-886.921232 /L-886.921232X	L-886.931232 /L-886.931232X[L]
Active axes			θY	θY
Rotation range	°		12	17
Maximum angular velocity, unloaded	°/s		10	10
Deviation from center of rotation	μm	max.	10	10
Positioning	Unit	Tolerance	L-886.921232 /L-886.921232X	L-886.931232 /L-886.931232X[L]
Minimum incremental motion	μrad	typ.	5
Bidirectional repeatability	μrad	typ.	35
Reference switch			Hall effect, N/C contact, 5 V, NPN
Limit switches			Hall effect, N/C contact, 5 V, NPN
Integrated sensor			Incremental linear encoder
Sensor signal			A/B quadrature, RS-422
Sensor resolution, rotational	μrad		0.8305	1.122
Drive properties	Unit	Tolerance	L-886.921232 /L-886.921232X	L-886.931232 /L-886.931232X[L]
Drive type			2-phase stepper motor
Nominal voltage	V		24
Peak current per phase, RMS	A	typ.	1.5
Maximum power consumption	W		8
Motor resolution	Full steps/rev.		200
Phase resistance	Ω	typ.	1.18
Phase inductance	mH		0.96
Mechanical properties	Unit	Tolerance	L-886.921232 /L-886.921232X	L-886.931232 /L-886.931232X[L]
Permissible push force in Z	N	max.	35	35
Drive torque	Nm		2.6	1.7
Holding torque, passive	Nm		0.8	0.55
Distance of center of rotation to platform surface	mm	±1 mm	75	50
Drive screw type			Ball screw
Spindle pitch	mm		1
Guide			Crossed roller guide
Material			Aluminum, black anodized; stainless steel
Overall mass	g		730 / 710	730 / 710
Mass without cables	g		530 / 500	530 / 500
Miscellaneous	Unit	Tolerance	L-886.921232 /L-886.921232X	L-886.931232 /L-886.931232X[L]
Operating temperature range	°C		5 to 40
Connector			HD D-sub 26 (m)
Cable exit			L-886.9x1232[X]: straight, backwardsL-886.931232XL: angled, 90°, to the left
Recommended controllers/drivers			C-663G-901G-910Modular ACS controller

At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.
