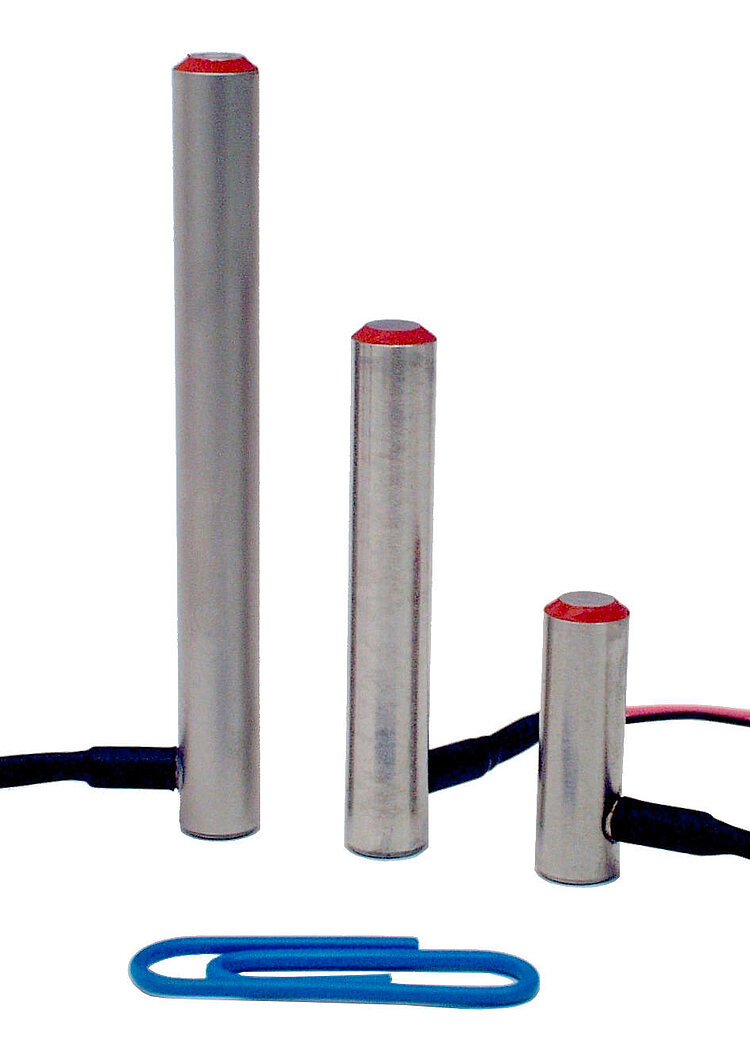

P-810 • P-830 Piezo Actuators

For Medium Loads and Push Forces

  • Outstanding lifetime due to PICMA® piezo actuators
  • Travel range to 60 µm
  • Push force capacity to 1000 N
  • Pull force capacity to 5 N
  • µs response time
  • Subnanometer resolution
P-810 • P-830 Piezo Actuators
Description du produit Spécifications Téléchargements Devis / Commande

Application fields

  • Static and dynamic precision positioning
  • Fiber positioning
  • Laser tuning
  • Patch clamp
  • Nanotechnology

Outstanding lifetime thanks to PICMA® piezo actuators

The PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Specifications

Datasheet

Datasheet P-810 • P-830

Version / Date
2023-12-11
pdf - 558 KB
Version / Date
2023-12-11
pdf - 559 KB
Version / Date
2018-06-14
pdf - 641 KB

Downloads

Datasheet

Datasheet

Datasheet P-810 • P-830

Version / Date
2023-12-11
pdf - 558 KB
Version / Date
2023-12-11
pdf - 559 KB
Version / Date
2018-06-14
pdf - 641 KB

Documentation

Documentation

Short Instructions PZ303

Housed PICMA® Actuators to 100 V

Version / Date
1.2.0 11/2020
pdf - 958 KB
Version / Date
1.2.0 11/2020
pdf - 961 KB
Documentation

User Manual P810T0004

P-810, P-830 Piezo Actuators

Version / Date
2019-10-16
pdf - 640 KB
Anglais

3D Models

3D Models

P-830 3-D model

zip - 44 KB
3D Models

P-810 3-D model

zip - 33 KB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

P-810.10

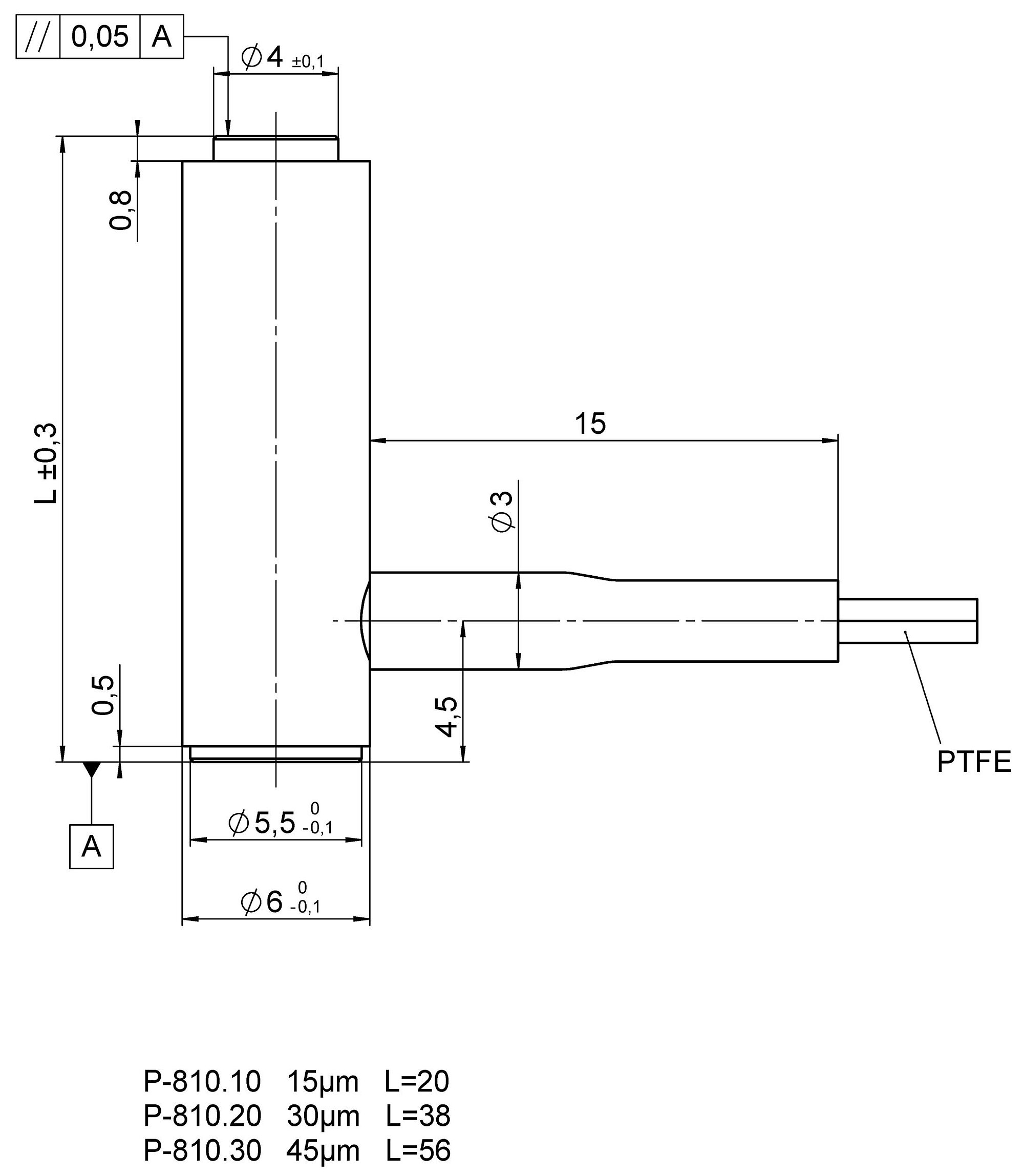

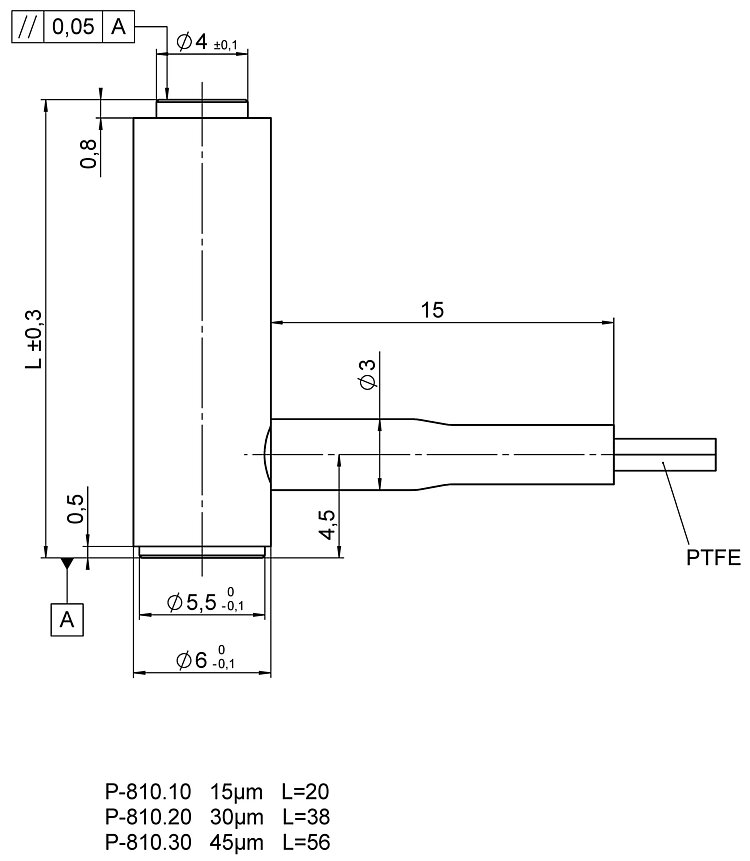

Piezo actuator; PICMA® piezo actuator drive; 15 µm travel range (open loop); 20 mm length; push force capacity 50 N; pull force capacity 1 N; connecting wires; 0.3 m cable length

P-810.20

Piezo actuator; PICMA® piezo actuator drive; 30 µm travel range (open loop); 38 mm length; push force capacity 50 N; pull force capacity 1 N; connecting wires; 0.3 m cable length

P-810.30

Piezo actuator; PICMA® piezo actuator drive; 45 µm travel range (open loop); 56 mm length; push force capacity 50 N; pull force capacity 1 N; connecting wires; 0.3 m cable length

P-830.10

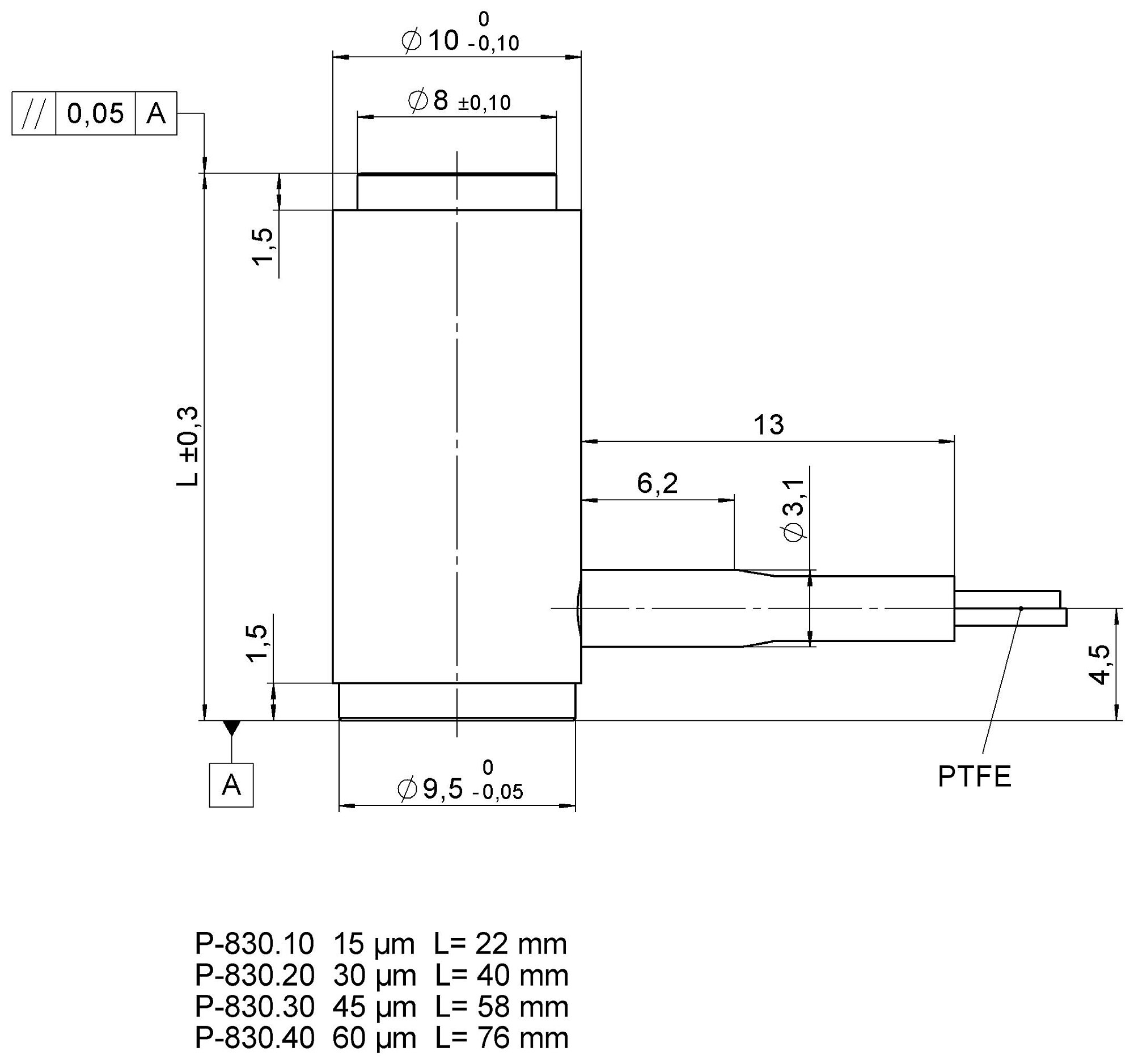

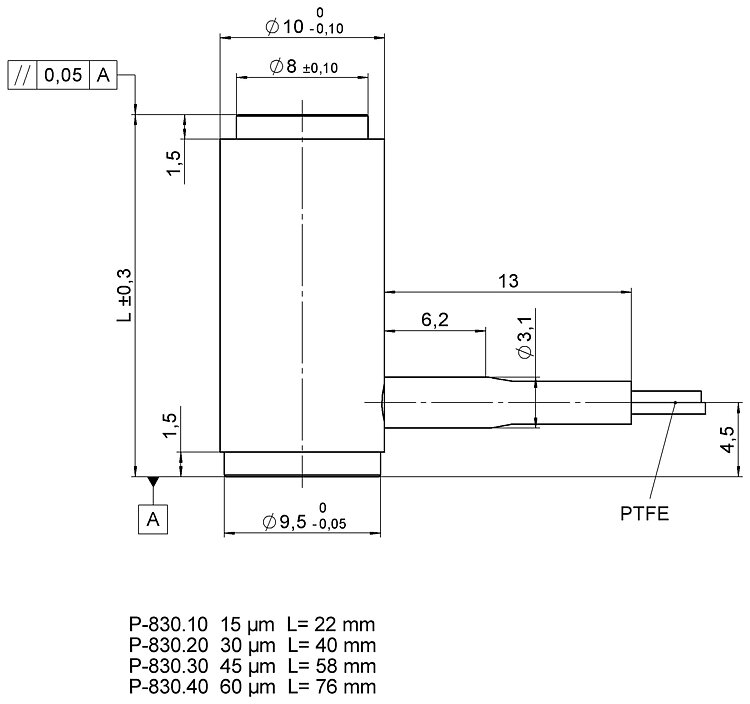

Piezo actuator; PICMA® piezo actuator drive; 15 µm travel range (open loop); 22 mm length; push force capacity 1000 N; pull force capacity 5 N; connecting wires; 0.3 m cable length

P-830.20

Piezo actuator; PICMA® piezo actuator drive; 30 µm travel range (open loop); 40 mm length; push force capacity 1000 N; pull force capacity 5 N; connecting wires; 0.3 m cable length

P-830.30

Piezo actuator; PICMA® piezo actuator drive; 45 µm travel range (open loop); 58 mm length; push force capacity 1000 N; pull force capacity 5 N; connecting wires; 0.3 m cable length

P-830.40

Piezo actuator; PICMA® piezo actuator drive; 60 µm travel range (open loop); 76 mm length; push force capacity 1000 N; pull force capacity 5 N; connecting wires; 0.3 m cable length
