Motion controller module for positioners with piezoelectric inertia drive; 1 axis; for C-885 PIMotionMaster

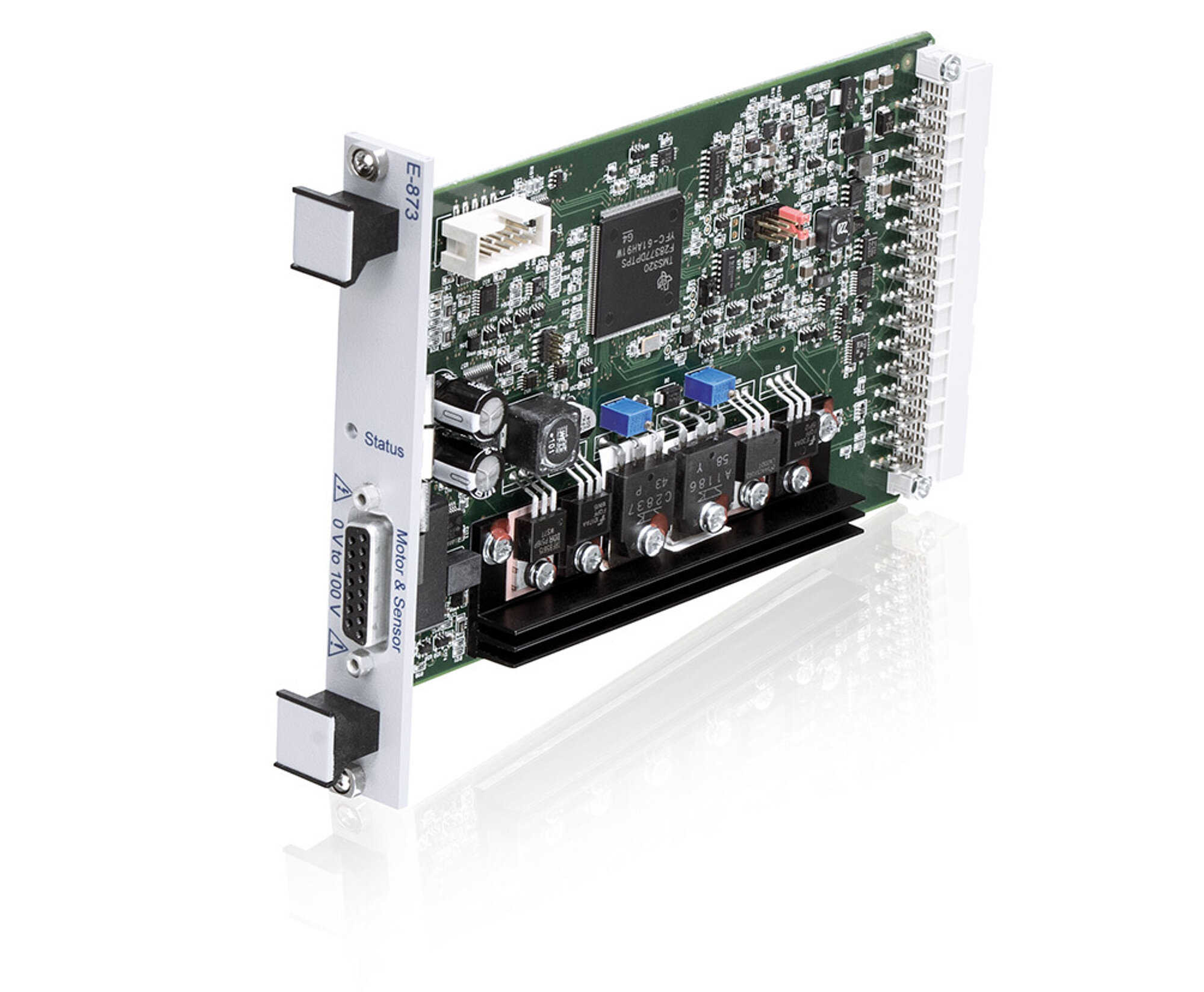

E-873.10C885 Q-Motion® Controller Module for C-885 PIMotionMaster
For Piezoelectric Inertia Drives, 1 Axis
- Broadband encoder input
- Macro programmable for stand-alone functionality
- Fast startup due to ID chip detection
- Data recorder
- PID controller, parameters modifiable during operation
Servo controller for piezoelectric inertia drives, 1 axis
Technology
Integrated power amplifier and voltage generator for piezoelectric inertia drives. Point-to-point motion, trapezoidal velocity profile, actuator mode for nanometer-precise positioning at the target position.
Differential signal transmission for analog (sin/cos) encoder signals, BiSS interface for absolute encoders.
Functionality and software
Powerful macro programming language. Nonvolatile macro memory, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip detection for fast startup. PID controller, parameters modifiable during operation.
Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.
Installation and operation
Plug-and-play installation in the C-885 PIMotionMaster: Can be inserted in any free slot. Automatic detection and external communication by the processor and interface module of the C-885. Expandable by optional digital inputs and outputs. Power supply via the power adapter of the C-885.
Specifications
Datasheet E-873.10C885
Specifications
Basics | E-873.10C885 |
|---|---|
Housing type | Module without housing, 4 HP |
Drive type | Q-Motion piezoelectric inertia drive |
Axes | 1 |
Application-related functions | Macro; startup macro; data recorder; ID chip detection |
Protective functions | Automatic motor stop |
Configuration management | Import of parameter files; manual parameter input; reading the ID chip |
Interfaces and operation | E-873.10C885 |
|---|---|
Communication interfaces | TCP/IP; USB |
Command set | GCS 2.0 |
User software | PIMikroMove |
Application programming interfaces | C, C++, C#; MATLAB; NI LabVIEW; Python |
Analog inputs | 4 (optionally via C-885) |
Analog input signal | 0 V to 5 V |
Digital inputs | 4 (optionally via C-885) |
Digital input signal | TTL |
Digital outputs | 4 (optionally via C-885) |
Digital output signal | TTL |
Downloads
Datasheet
Datasheet E-873.10C885
Documentation
User Manual E873T0002
E-873.10C885 Motion Controller Module for Q-Motion®, for C-885 PIMotionMaster
User Manual PZ273
E-873.1AT Q-Motion® Controller
General Software Documentation
User Manual SM164
Updating controller firmware with PIFirmwareManager
