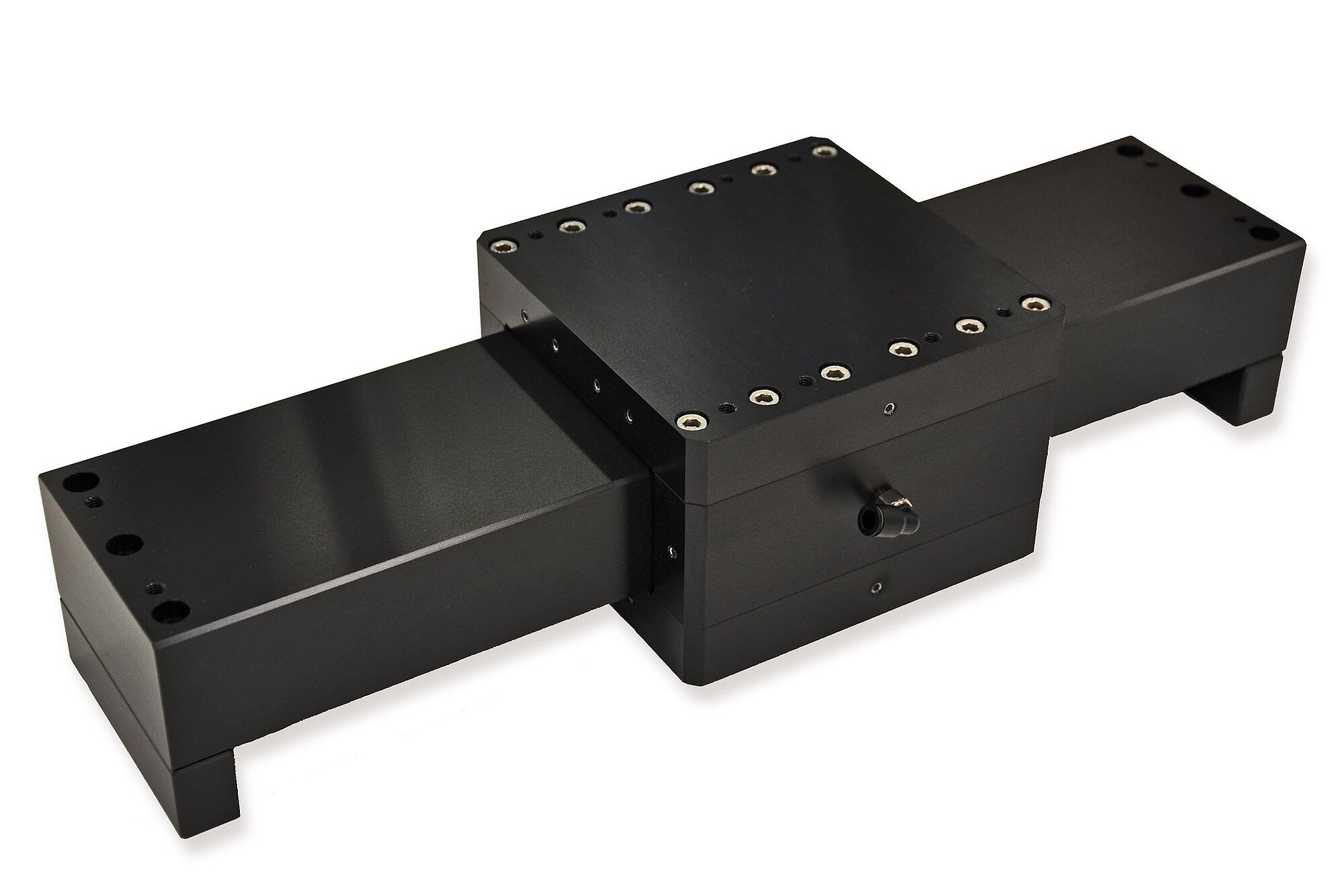

A-10x PIglide RB Linear Air Bearing Module

Friction Free, Ideal for Positioning, Scanning, Metrology

  • Ideal for scanning applications or high-resolution positioning
  • Cleanroom compatible
  • Size of the motion platform to 300 mm × 300 mm
  • Travel ranges to 1 m
  • Load capacity to 775 kg
  • Straightness / flatness to 0.5 μm per 25 mm
  • Pitch / roll / yaw to 1.2 µrad per 25 mm
A-10x PIglide RB Linear Air Bearing Module
Description du produit Spécifications Téléchargements Devis / Commande

Linear air bearings of the PIglide RB series are exactly right for applications that need smooth, precise, linear motion. The air bearing modules replace ball or crossed roller guides and are easy to integrate. They offer improved straightness, angular deviation, and repeatability compared to stage units with ball guides, especially for travel ranges longer than 100 mm.

Because air bearings are basically friction free, they work without stiction on approach or during operation, even under maximum load. Air bearings work without making contact and with purified air, and are virtually maintenance and wear free.

Accessories and options

  • Air preparation kit
  • Mounting Feet
  • Custom configurations on request
  • Several motion platforms on one guide
  • Constructions with moving guide

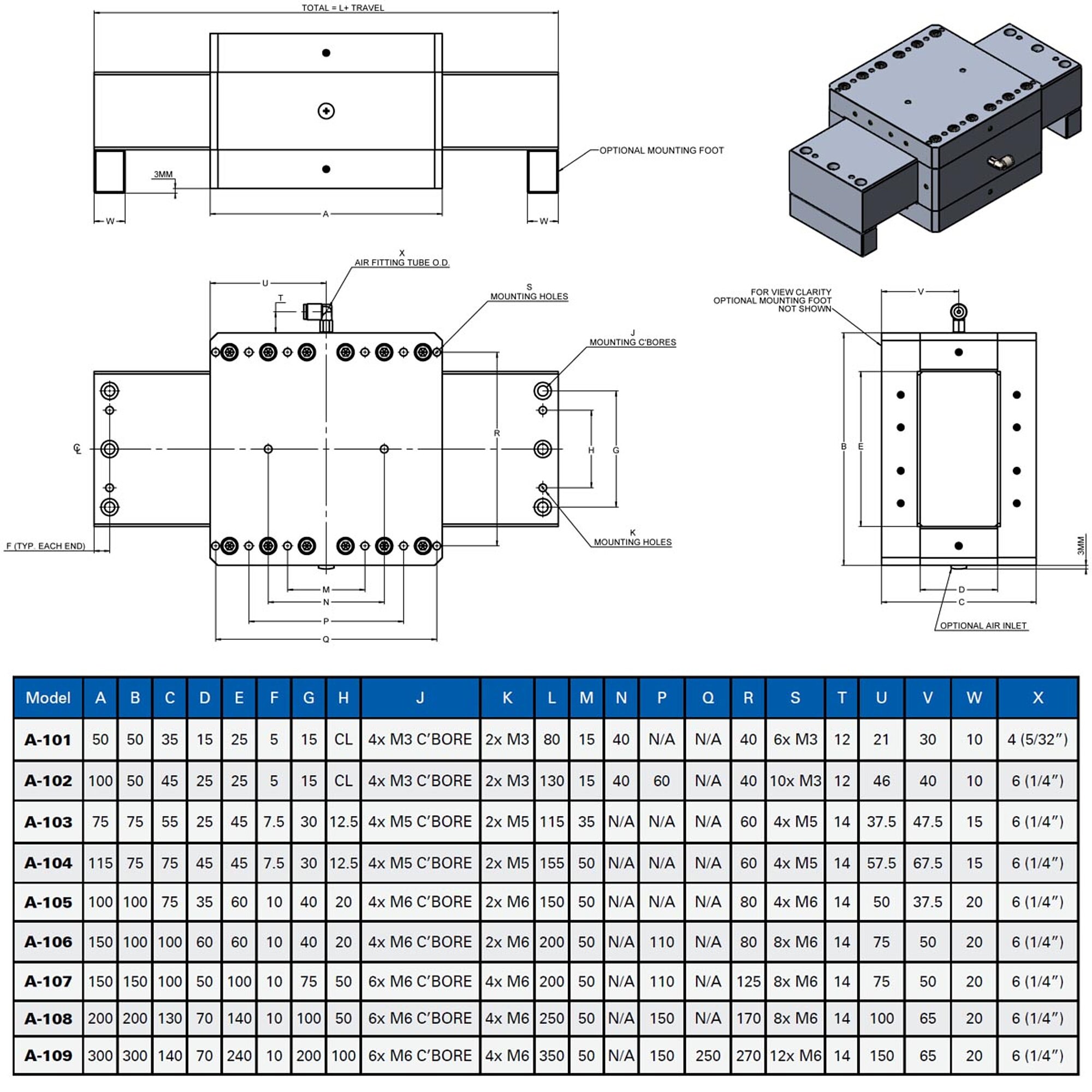

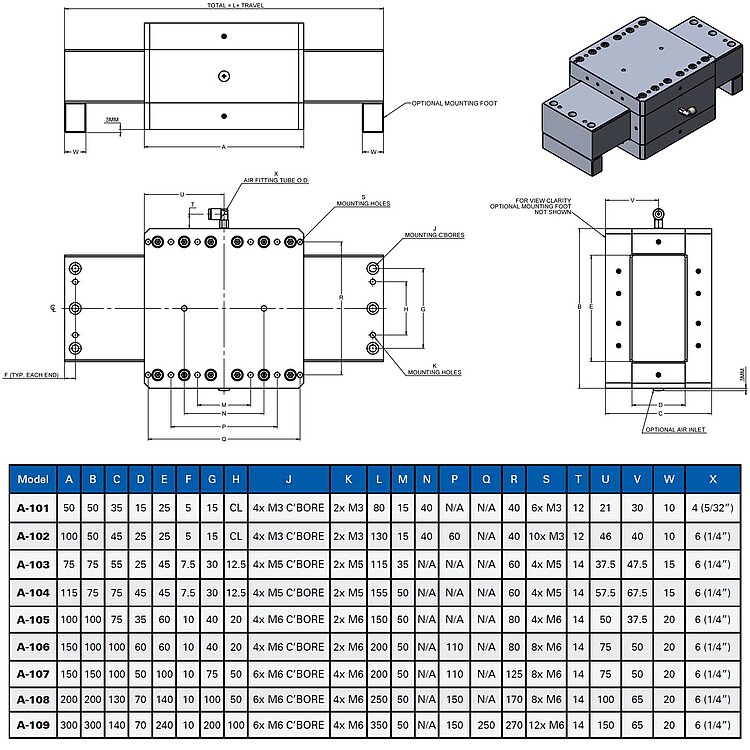

Specifications

Datasheet

Datasheet A-10x

Version / Date
2020-05-15
pdf - 519 KB
Version / Date
2020-05-15
pdf - 523 KB
Version / Date
2017-08-07
pdf - 748 KB

Downloads

Datasheet

Datasheet

Datasheet A-10x

Version / Date
2020-05-15
pdf - 519 KB
Version / Date
2020-05-15
pdf - 523 KB
Version / Date
2017-08-07
pdf - 748 KB

Documentation

Documentation

User Manual A-10x

User Manual A-10x

Version / Date
2016-10-28
pdf - 594 KB
Anglais

3D Models

3D Models

A-10x 3-D model

zip - 2 MB

Livre Blanc

Livre Blanc

Air Bearings: When to Use and When to Avoid in Your Motion Application

All Positioning Stages are not Created Equal. Author: Matt Reck, PI

Version / Date
WP4003 2015-09
pdf - 3 MB
Anglais

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Size of the motion platform 50 mm × 50 mm

Size of the motion platform 50 mm × 100 mm

Size of the motion platform 75 mm × 75 mm

Size of the motion platform 75 mm × 115 mm

Size of the motion platform 100 mm × 100 mm

Size of the motion platform 100 mm × 150 mm

Size of the motion platform 150 mm × 150 mm

Size of the motion platform 200 mm × 200 mm

Size of the motion platform 300 mm × 300 mm
