Piezoceramic Discs, Rods & Cylinders

Standard Products

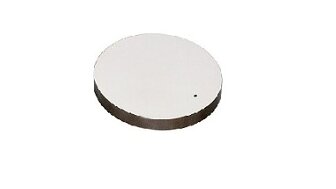

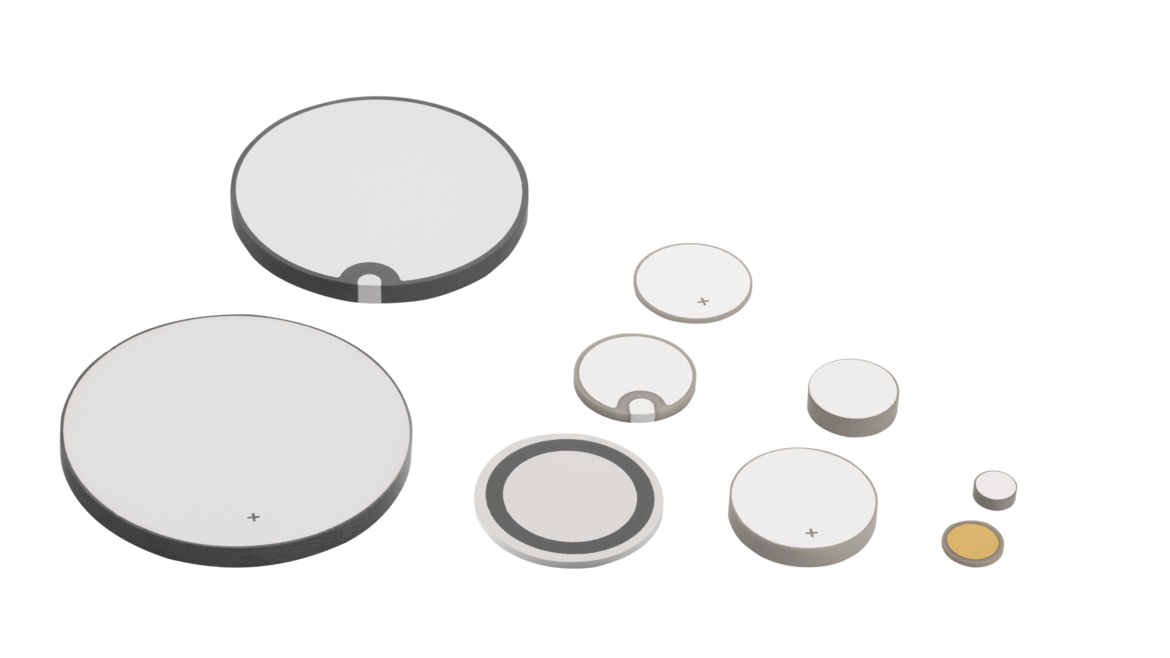

Piezoelectric Discs

Fast Availability of Specified Versions

  • Piezo material matched to the application
  • Full-surface contact electrodes
  • Can be delivered within two weeks
  • Larger quantities available direct from stock

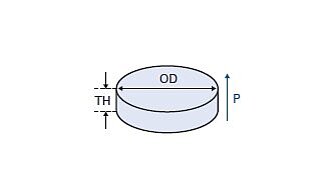

Customized Discs without Special Electrodes

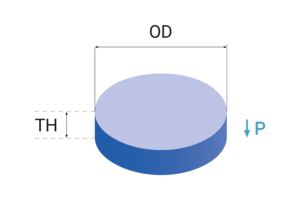

OD     Outer diameter

TH      Thickness

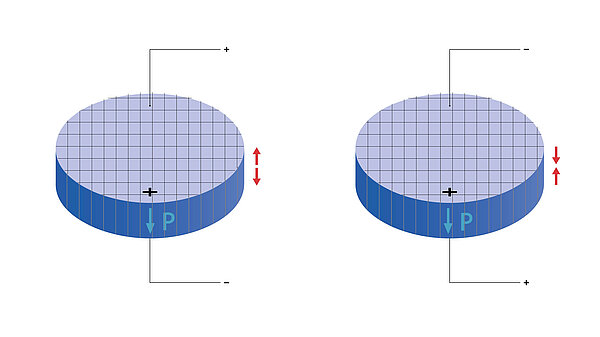

P        Polarization direction

Outer diameter OD
2 to 80 mm
Thickness TH
0.15 to 30 mm
Electrodes
Silver (thick layer) or PVD thin layer (different materials: e.g. CuNi, Au, etc.)

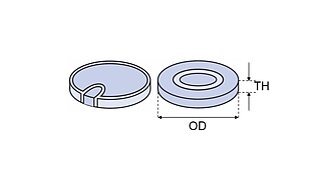

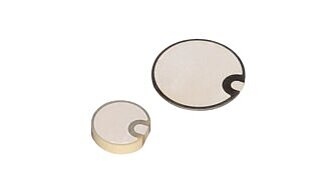

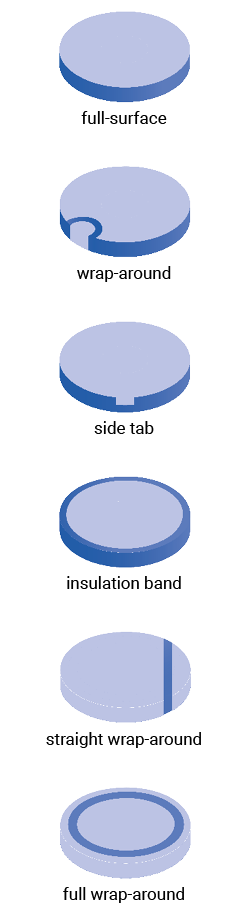

Customized Discs with Special Electrodes (Wrap-Around Contacts)

OD     Outer diameter
TH      Thickness





Wrap-around electrodes allow you to establish electrical contacting at a favorable position within the mechanical assembly.
