Piezoelectric Transducers & Actuators

Piezoelectric ultrasonic transducers are available in a wide range of shapes like disks, plates or tubes, and different performance levels. They can be adapted to application requirements by using different piezoceramic materials, electrodes, and assembling technology. They are present wherever ultrasound is needed, like in flow metering, structural monitoring, and many medical applications.

Piezo actuators are available as stacked and multilayer versions, in different force classes and for displacements up to some hundred micrometers, while piezo bending actuators achieve up to millimeters. Their basic features like millisecond response time and high dynamics combined with virtually unlimited resolution make them indispensable in applications from industrial production or dispensing to ultra-precision positioning.

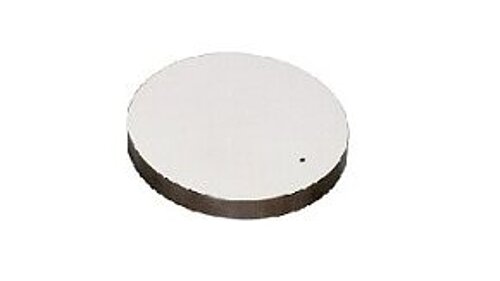

Plaques PI Ceramic

Disques et cylindres piézoélectriques

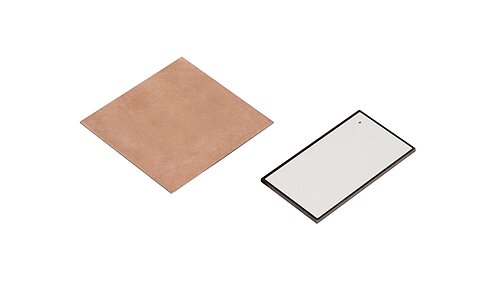

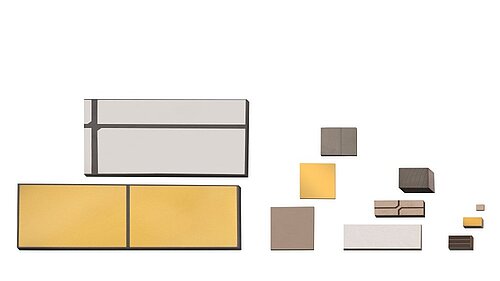

Plaques et blocs piézoélectriques

Plaques et blocs piézoélectriques

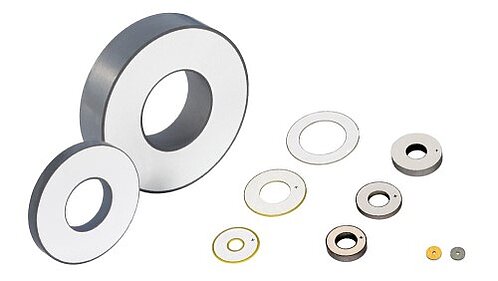

Bagues piézoélectriques

Bagues piézoélectriques

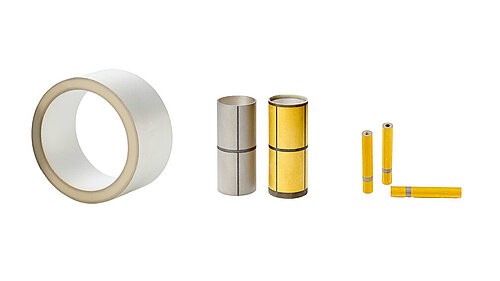

PI Ceramic Piezoceramic Tubes

Tubes piézoélectriques

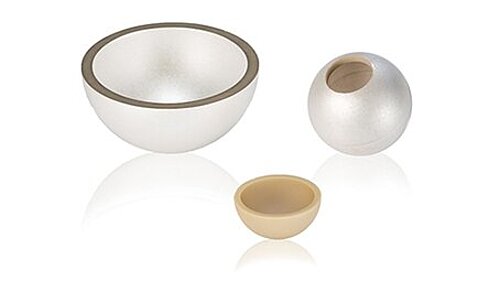

Sphères et hémisphères piézoélectriques

Sphères et hémisphères piézoélectriques

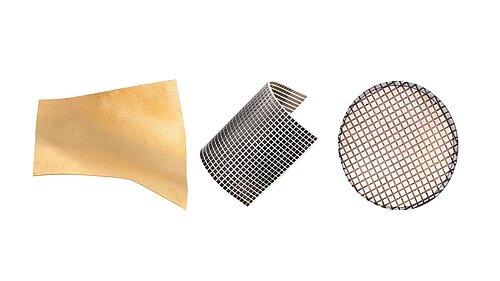

PI Ceramic Flexible Composites

Piezoceramic Composites

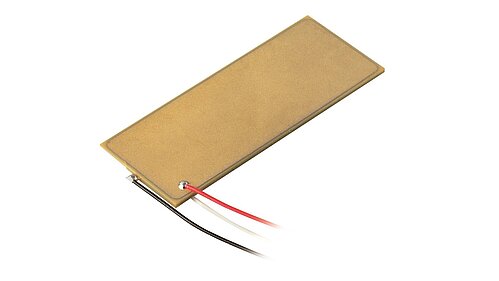

Bimorphes piézoélectriques

Bimorphes piézoélectriques

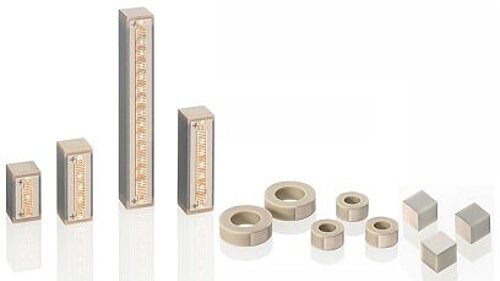

PICMA® Piezo Linear Actuators

PICMA® Piezo Linear Actuators

PICMA® Piezo Bender Actuators

PICMA® Piezo Bender Actuators

Multilayer Bending Actuators with Large Displacement

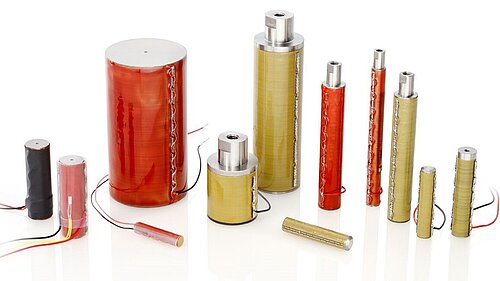

PICA Piezoelectric Stack Actuators

Stack, Power and Thru

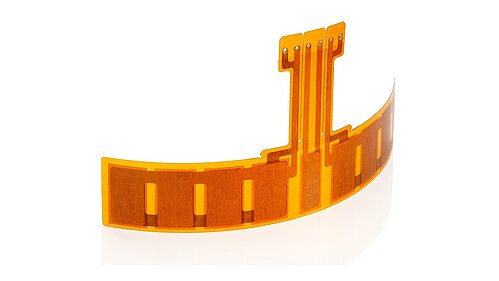

DuraAct Patch Transducers

DuraAct Patch Transducers

Robust and Flexible Patch Transducers

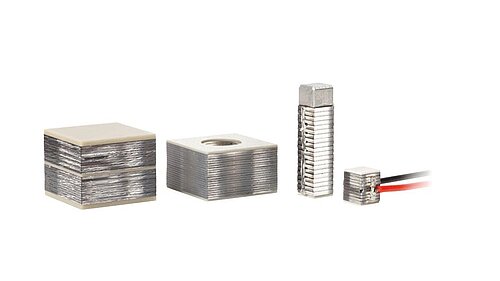

Picoactuator® Piezoelectric Crystal

Picoactuator® Piezoelectric Crystal

Multi-Axis and Piezo Linear Actuators

Nanopositioning Piezo Actuators

P-216 PICA Power Piezo Actuators

Preloaded Piezo Actuators (HVPZT) with Sensor Option
  • Travel range to 180µm
  • Push force to 4500N
  • Pull force to 500N
  • Subnanometer resolution
  • For vacuum/ high temperature

P-845 Preloaded Piezo Actuators

For Very High Loads and Forces, with Position Sensor

P-844 Preloaded Piezo Actuators

For Very High Loads and Forces

P-840 Preloaded Piezo Actuators

Compact Actuators for High Loads and Forces

P-820 Preloaded Piezo Actuators

For Medium Loads and Forces

P-235 PICA Power Piezo Actuators

Preloaded High-Load Piezo Actuators (HVPZT) with Sensor Option
  • High Force
  • Travel range 180µm
  • Extremely high stiffness
  • Push force to 30000N
  • Pull force to 3500N

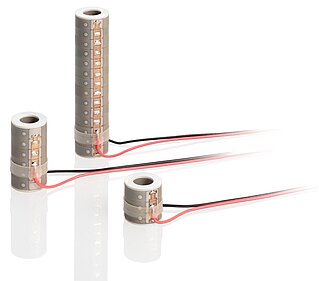

P-080 PICMA® Stack Multilayer Ring Actuator

With Inner Hole
  • Multilayer
  • Inner hole: preload/aperture
  • Superior lifetime
  • Microsecond response
  • Subnanometer resolution
