Engineered Subsystems for Automation

Precision components, stable control and a great deal of experience in engineering are essential for high-precision complex motion and positioning solutions. PI is a supplier of technologically sophisticated motion-centric solutions and therefore makes use of own drive components and high-precision positioners. All levels of integration can be offered up to multi-axis combinations that use different drive technologies including motion control.

Engineering designs of motion subsystems have been a part of PI's core business for many years. Customized solutions, fitting seamlessly into existing processes, advance automation in manufacturing and inspection processes for chip production or photonics packaging as well as major research installations.

Core Competencies

  • Support and consulting for motion and positioning applications
  • Reliable and prompt series production even for large quantities
  • Economic design
  • Complex multi-axis designs and parallel kinematic robotics
  • Broad spectrum of in-house technologies: Drive, guide, and sensor technologies
  • In-house development of motion control electronics and software platform
  • Software support with libraries and drivers
  • Commissioning

Engineered subsystems are an essential approach to support our OEM and system integration customers. We also offer integration to our highly capable families of PI and ACS motion controllers.

Dr. Cliff Jolliffe, Head of Market Segment Industrial Automation

Contactez un ingénieur!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

Engineered Precision Systems Use Top-Quality Components

The key to success is that the entire knowledge and experience of the PI Group is used for creating customized products for individual applications. Customized solutions are made easy with the broad portfolio of standard products available from one supplier. PI provides all the components for the system and configures the multi-axis structures.

Steps Towards Success

  1. Define together what the exact purpose of your question or application is
  2. Cooperate closely with you on an engineering design level during the concept phase to find the perfect solution
  3. Provide a technical and business proposal
  4. Detail the complete system
  5. The system is assembled, tested, approved by the customer and then delivered

To make new business fields profitable requires automated assembly technologies capable of achieving otherwise impractical combinations of throughput and precision across multiple degrees of freedom. On the basis of our broad product and technology portfolio, our experienced and creative engineers strive to develop the technically best possible motion solution for your process.

Scott Jordan, Head of Market Segment Photonics

Capacité de production de produits sur mesure

Le spectre de production allant d'un système intégré forte charge à un nanopositionneur de 10 grammes exige que PI dispose de l'équipement et des technologies nécessaires pour concevoir, assembler et qualifier l'ensemble de ces solutions.

  • 5 000 m² de salle blanche dédiés à la production
  • Mesures effectuées en conditions climatiques et vibratoires contrôlées
  • Technologie pour le vide jusqu'à 10-10 hPa



  • Maitrise de la technologie des actionneurs piézo, de la composition des matériaux jusqu'au contrôle final
  • Capteurs de positionnement produits par PI

La production, le montage et le design professionnel ont la priorité, et ce, dès le premier prototype.

Ralf Krämer, Head of the Manufacturing Fractal for Customized Products

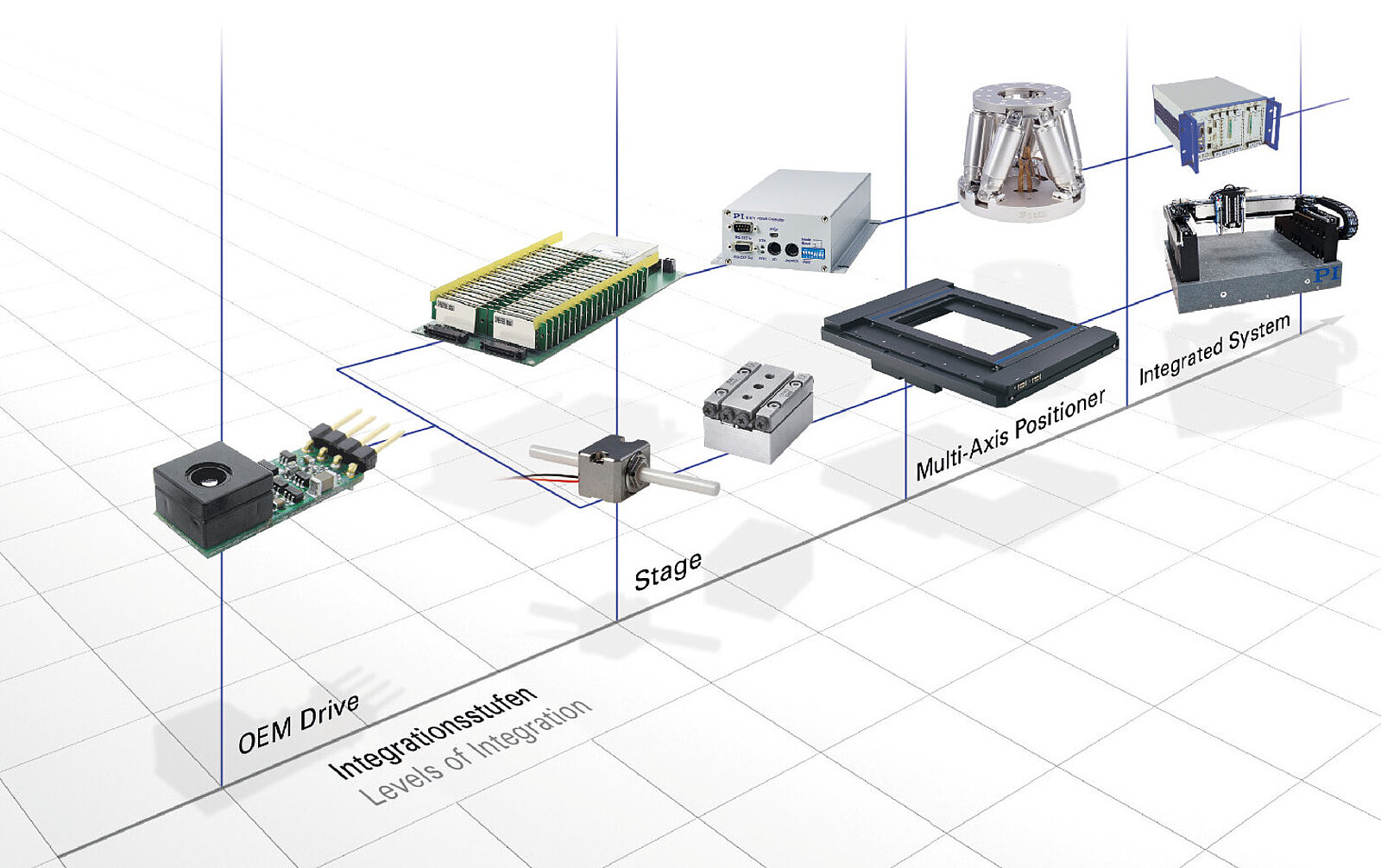

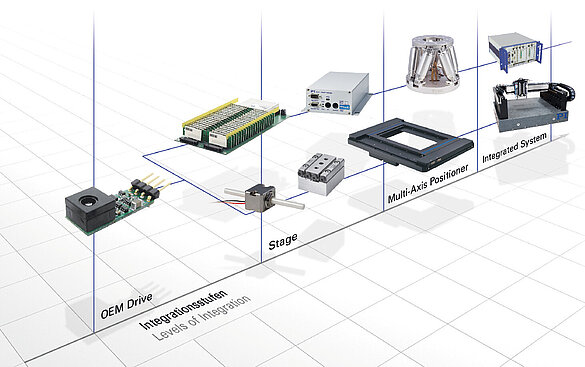

Levels of Integration

PI is a leading supplier of high-precision devices in various states of integration. Components like piezo drives, sensors and compact motion controllers can be adapted to fit into OEM machines and production equipment. Manufacturing capacity for volume production is granted. The classical positioning system provides easiest set-up and allows for individual integration into an application. Fully integrated motion systems offer full functionality designed according to unique market requirements.

Products & Projects

Gantry Systems

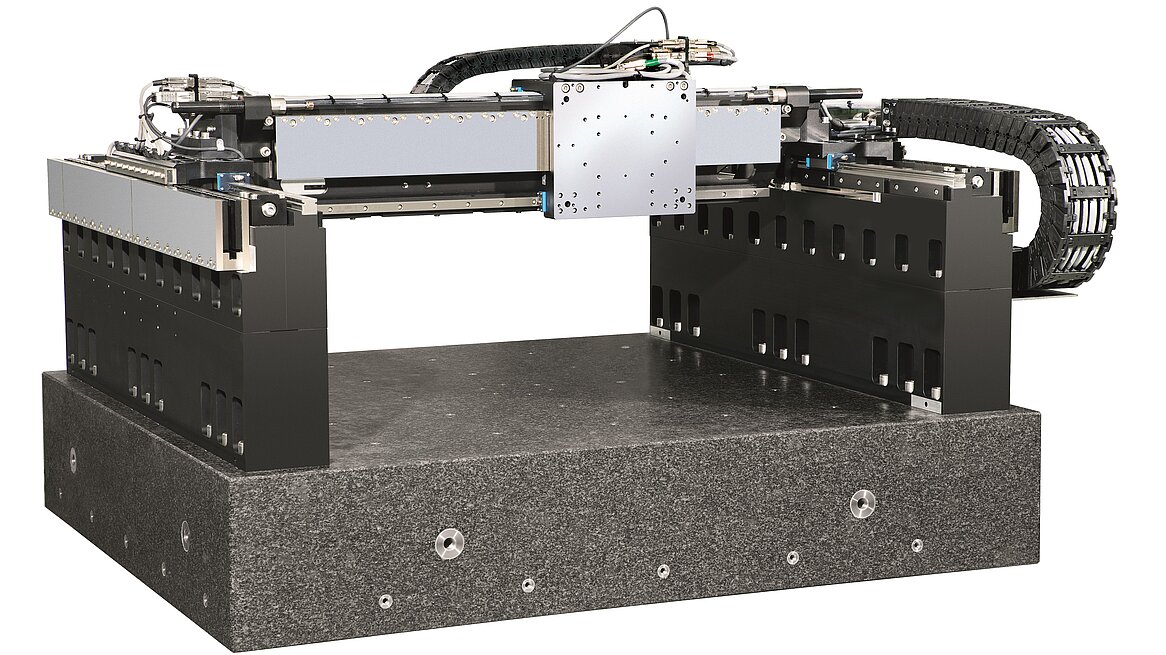

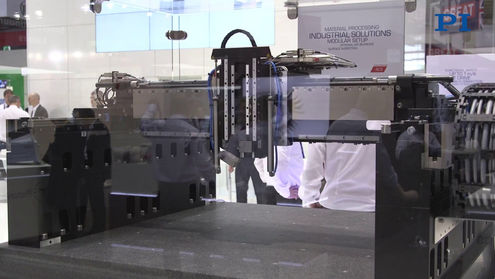

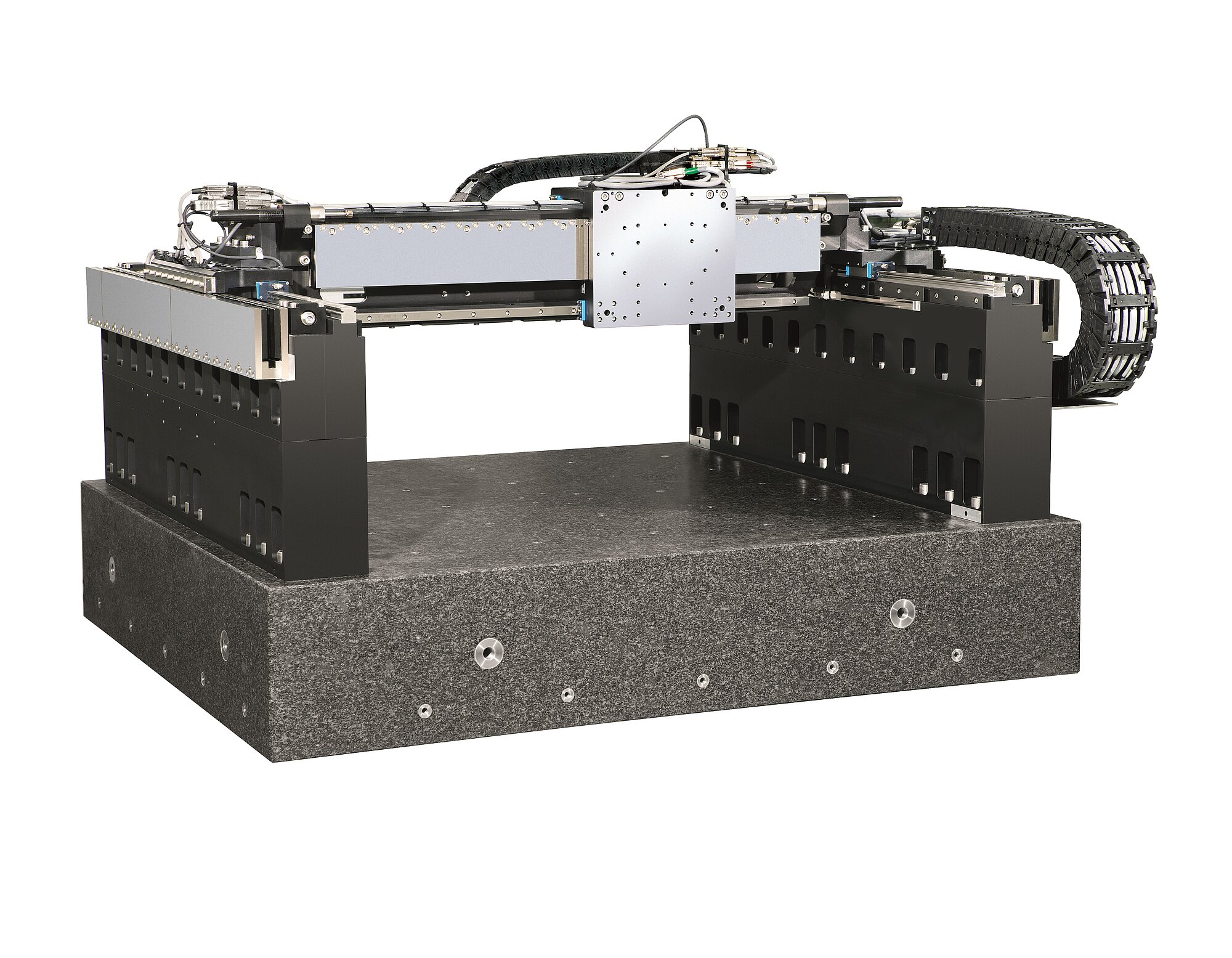

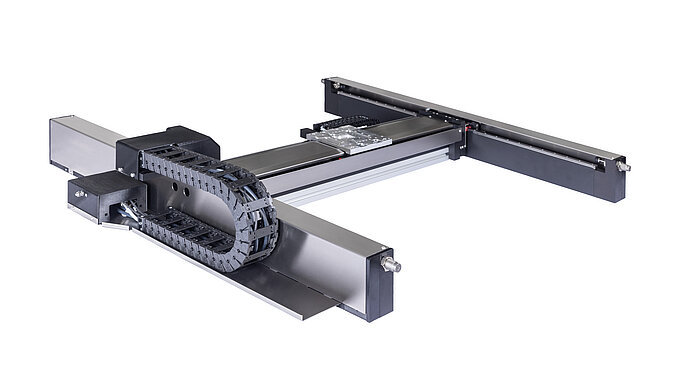

Gantries are normally equipped with linear motors. Travel ranges of up to 2 meters in XY are possible. If preferred, DC or stepper motors can be used for the Z axis. If nanometer precision is required, piezo actuators take care of dynamic fine adjustment.

Download PDF

Beamline Projects

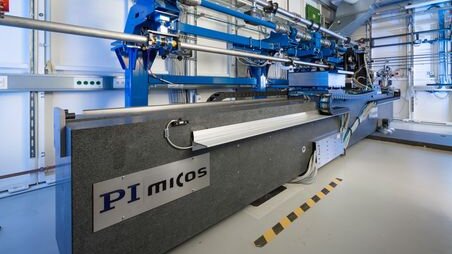

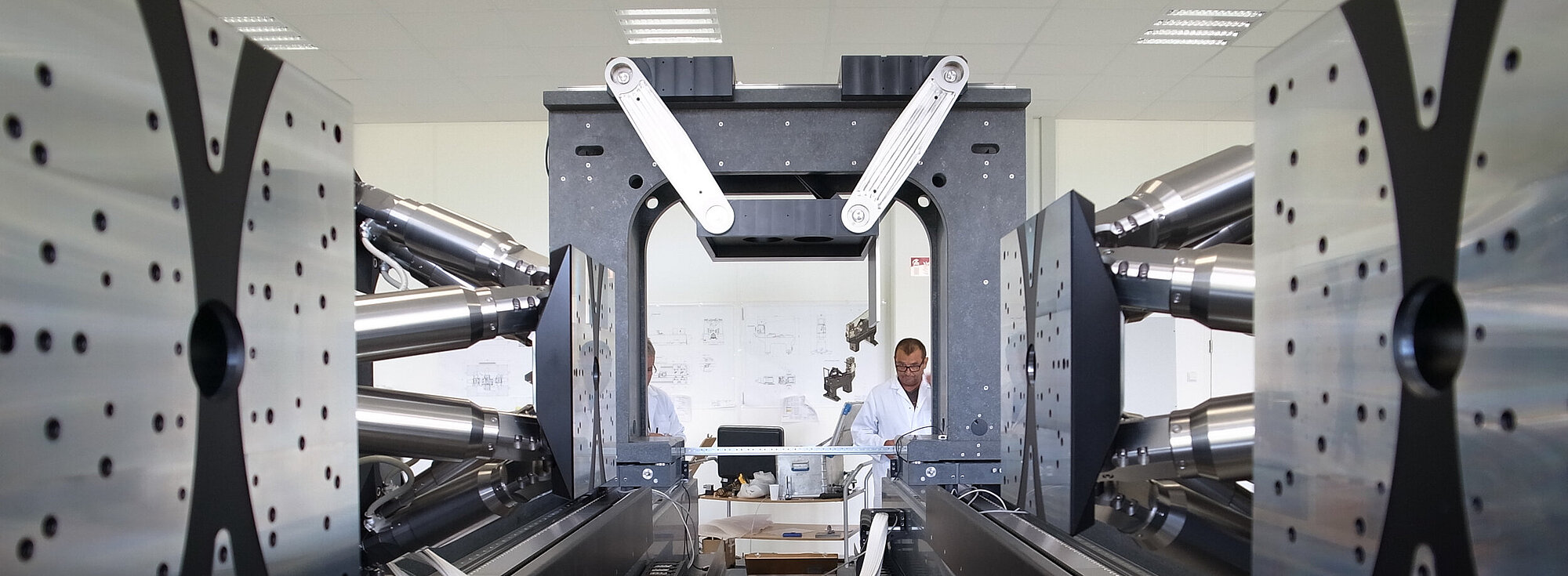

Beamline-Projects benefit from installation and qualification on site until the full acceptance of the delivered solution. This includes also UHV-ready delivery.



Learn more
