Miniature Rotation Stages

Rotation stages with piezomotor make for particularly compact sizes.

Many applications in microscopy require free light passage. These compact rotation stages can also be used in optics applications, where they position, for example, filters reliably and with excellent repeatability.

Rotation stages can be mounted on linear stages without adapter and allow for flexible combinations of multi-axis positioning systems.

Buy PI Products Online

Buy PI Products Online

Order PI’s stages, controllers, and matching accessories for your project in our online shop.

Miniature Rotation Stages with Q-Motion & PILine® Drives

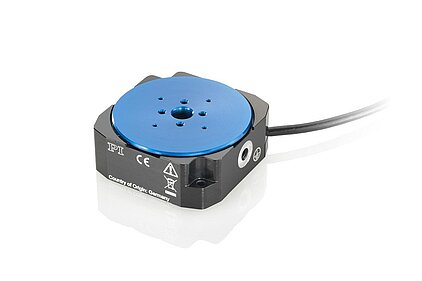

U-628 PILine® Rotation Stage

Miniature Stage with Ultrasonic Piezo Motor and Central Opening

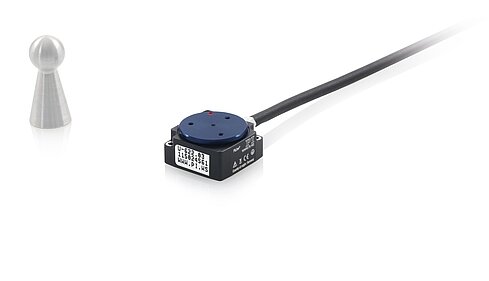

U-622 PILine® Rotation Stage

Miniature Stage with Ultrasonic Piezo Motor

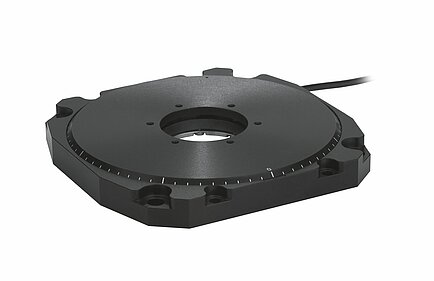

U-651 Rotation Stage with Low-Profile Design

Fast PILine® Direct Drive and Central Opening

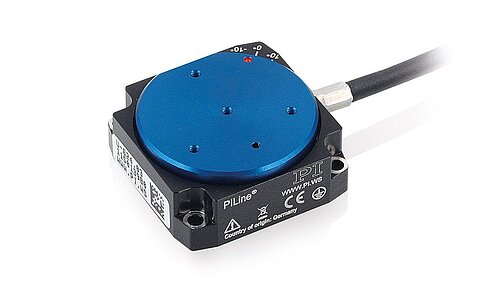

U-624 PILine® Rotation Stage

Miniature Stage with Ultrasonic Piezo Motor

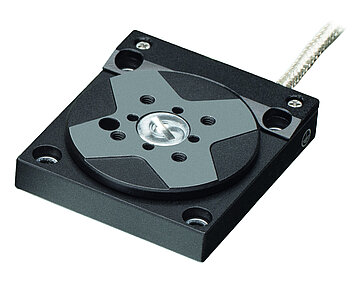

Q-632 Q‑Motion® Rotation Stage

Compact Through Piezo Motor: 30 mm Turntable Diameter

Miniature Rotation Stages with Stepper, DC & Brushless DC (BLDC) Motors

RS-40 Compact Rotation Stage

Precision Positioning

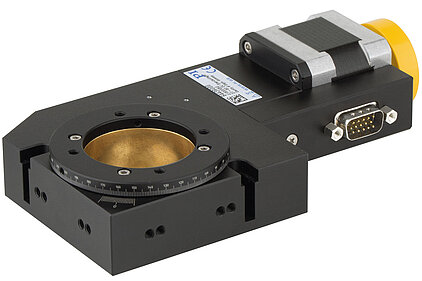

DT-80 Compact Rotation Stage

Large Clear Aperture

DT-34 Miniature Rotation Stage

Compact Dimensions, with DC or Stepper Motor
