V-417.E1XYH Drag Chain for V-41x Positioners

V-417.E1XYH Drag Chain for V-41x Positioners

Cable Management for XY Assemblies Consisting of V-412 and V-417 Linear Stages

For XY assemblies consisting of V-412 linear stages
For XY assemblies consisting of V-417 linear stages

Aller au devis / à la commande

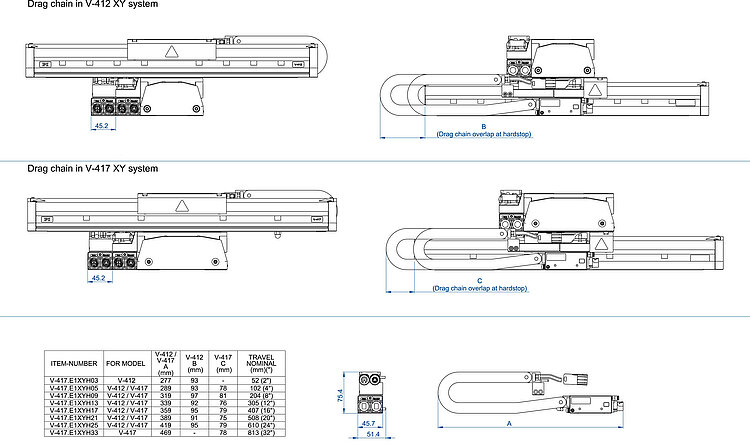

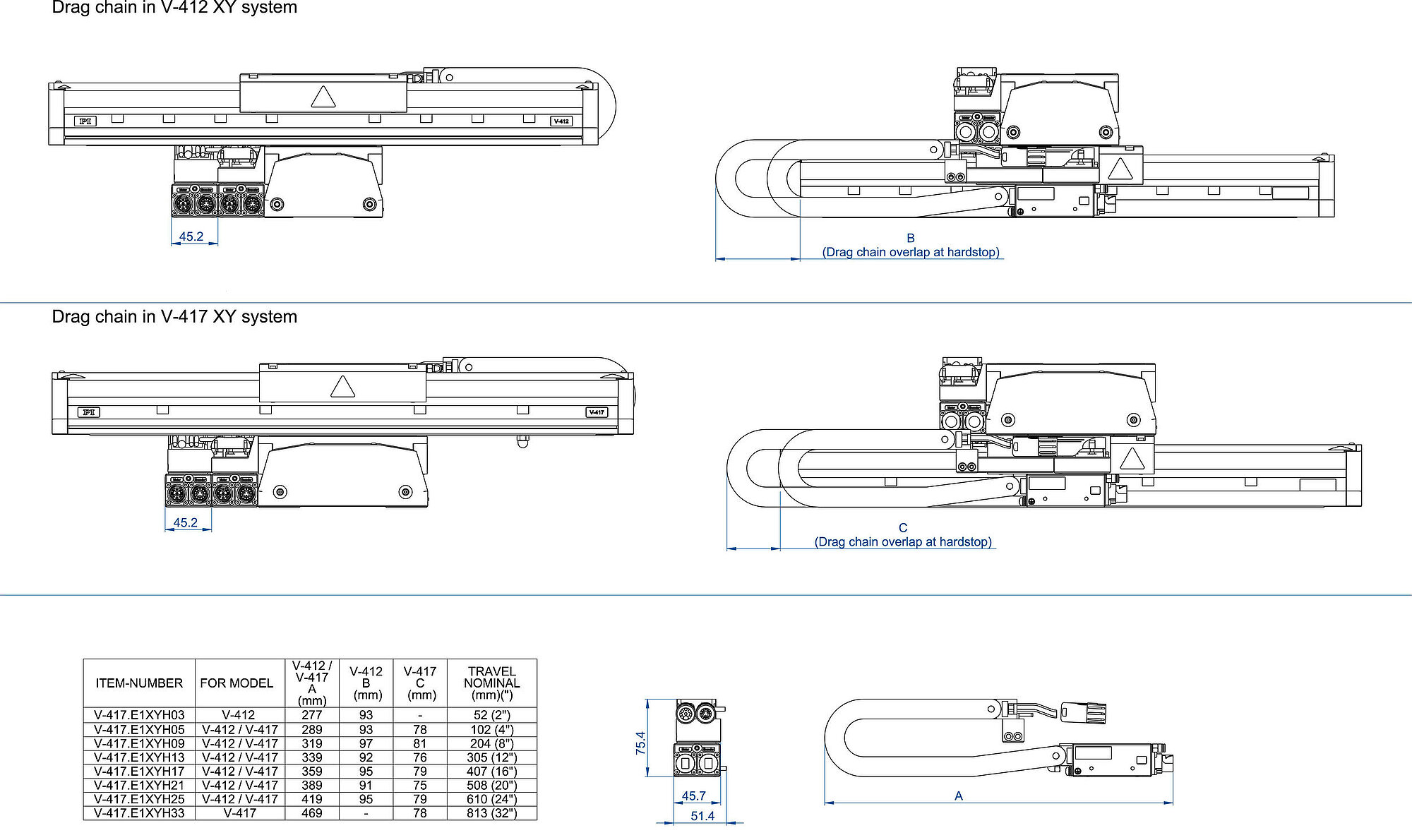

V-417.E1XYH, dimensions in mm

V-417.E1XYH13 with mounting material

Function of drag chain

In XY assemblies consisting of V-412 or V-417 linear stages, the V-417.E1XYHxx drag chain takes over the cable management of the Y axis in X direction. For this purpose, the drag chain is mounted on the X axis.

Drag chains for V-412 and V-417 XY assemblies

Which drag chain for which travel range of the X axis?

52 mm travel range: V-417.E1XYH03
102 mm travel range: V-417.E1XYH05
204 mm travel range: V-417.E1XYH09
305 mm travel range: V-417.E1XYH13
407 mm travel range: V-417.E1XYH17
508 mm travel range: V-417.E1XYH21
610 mm travel range: V-417.E1XYH25
813 mm travel range: V-417.E1XYH33

When ordering, please note the following:

Regardless of the travel range of the Y axis, the V-417.E1XYHxx drag chain must be selected for the travel range of the X axis.

Télécharger la fiche technique Aller aux spécifications Aller au devis / à la commande

Datasheet

Version / Date

2025-10-28

pdf - 1 MB

Version / Date

2025-10-28

pdf - 1 MB

	V-417.E1XYH03	V-417.E1XYH05	V-417.E1XYH09	V-417.E1XYH13	V-417.E1XYH17	V-417.E1XYH21	V-417.E1XYH25	V-417.E1XYH33
Material	Chain elements: igumid G/GLW	Chain elements: igumid G/GLW	Chain elements: igumid G/GLW	Chain elements: igumid G/GLW	Chain elements: igumid G/GLW	Chain elements: igumid G/GLW	Chain elements: igumid G/GLW	Chain elements: igumid G/GLW
Overall mass	450 g	480 g	545 g	555 g	585 g	605 g	615 g	645 g
Maximum velocity	2 m/s	2 m/s	2 m/s	2 m/s	2 m/s	2 m/s	2 m/s	2 m/s
Travel range	52 mm	102 mm	204 mm	305 mm	407 mm	508 mm	610 mm	813 mm

Note on overall mass: tolerance ± 5 %

Note on travel range: must correspond to the travel range of the X axis (lower axis)

Télécharger la fiche technique Aller à la zone de téléchargement Aller au devis / à la commande

Datasheet

Version / Date

2025-10-28

pdf - 1 MB

Version / Date

2025-10-28

pdf - 1 MB

Documentation

V-417.E1XYH Drag Chains

Version / Date

2024-02-20

pdf - 945 KB

Version / Date

2024-02-20

pdf - 951 KB

3D Models

zip - 10 MB

Aller au devis / à la commande

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
