PL112 – PL140 PICMA® Bender
All-Ceramic Bending Actuators with High Displacement
- Displacement to 2 mm
- Fast response in the ms range
- Nanometer resolution
- Low operating voltage
- Operating temperature up to 150°C
- UHV-compatible to 10-9 hPa
![](/fileadmin/_processed_/4/1/csm_PI_PL112_01__Titelbild_b85_8c811c01e7.jpg)
![](/fileadmin/_processed_/0/9/csm_PI_PL112_Drawing__Abmessungen_ohne_Toleranzen__b65_234e111e2e.jpg)

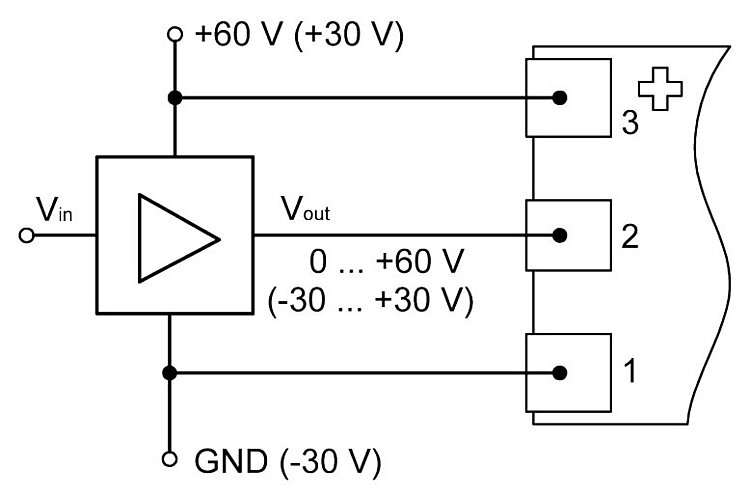

![](/fileadmin/_processed_/1/5/csm_PI_PL112_Drawing_01__Verdrahtung__zug_b85_6d4bf57ba2.jpg)

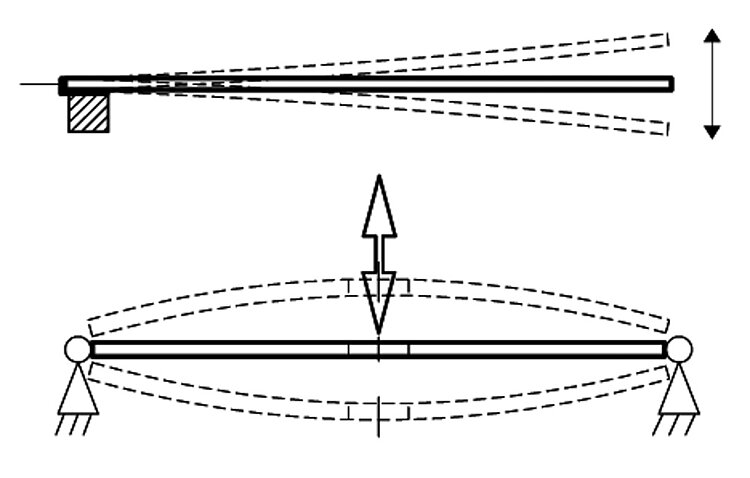

![](/fileadmin/_processed_/c/8/csm_CAT128_S_41_03__Auslenkung__zug_300dpi_b85_5cdd01cf97.jpg)
![](/fileadmin/_processed_/1/f/csm_PI_PL112_01_zug_400dpi_b85_33753e2426.jpg)

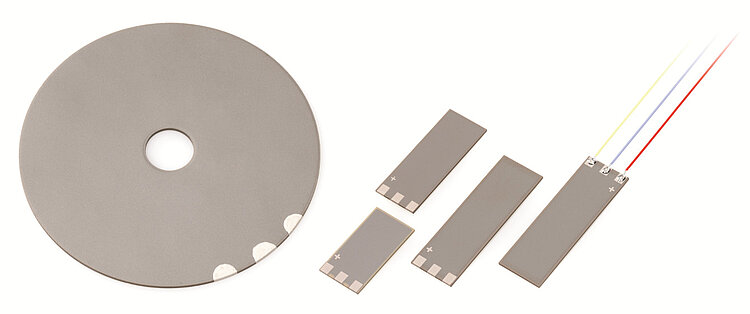

![](/fileadmin/_processed_/2/d/csm_PI_PD410_PL112_01_zug_400dpi_b85_b48ffc12bd.jpg)

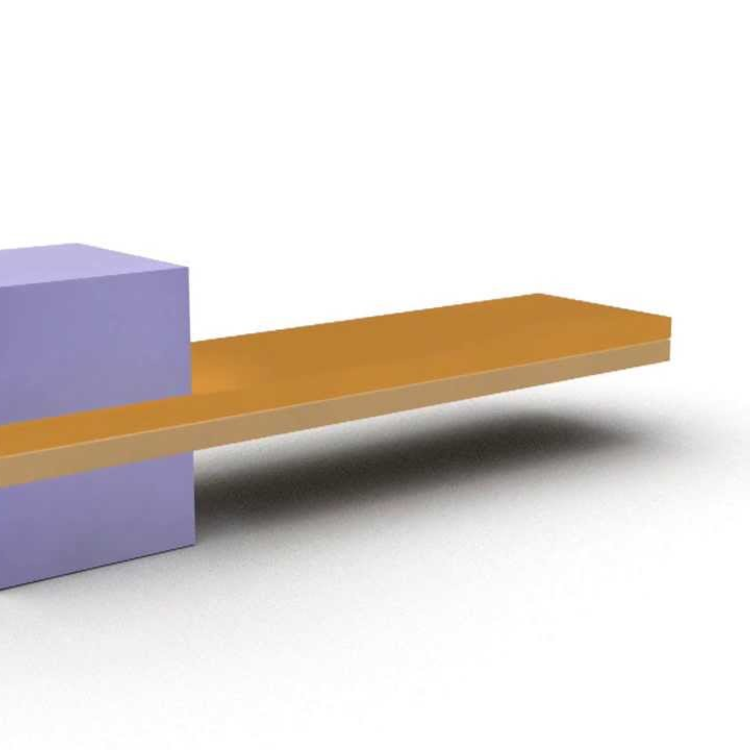

![PI Ceramic Bender Actuator](/fileadmin/_processed_/7/e/csm_PI_Ceramic_Bender_Actuator_87ad2db9f3.png)

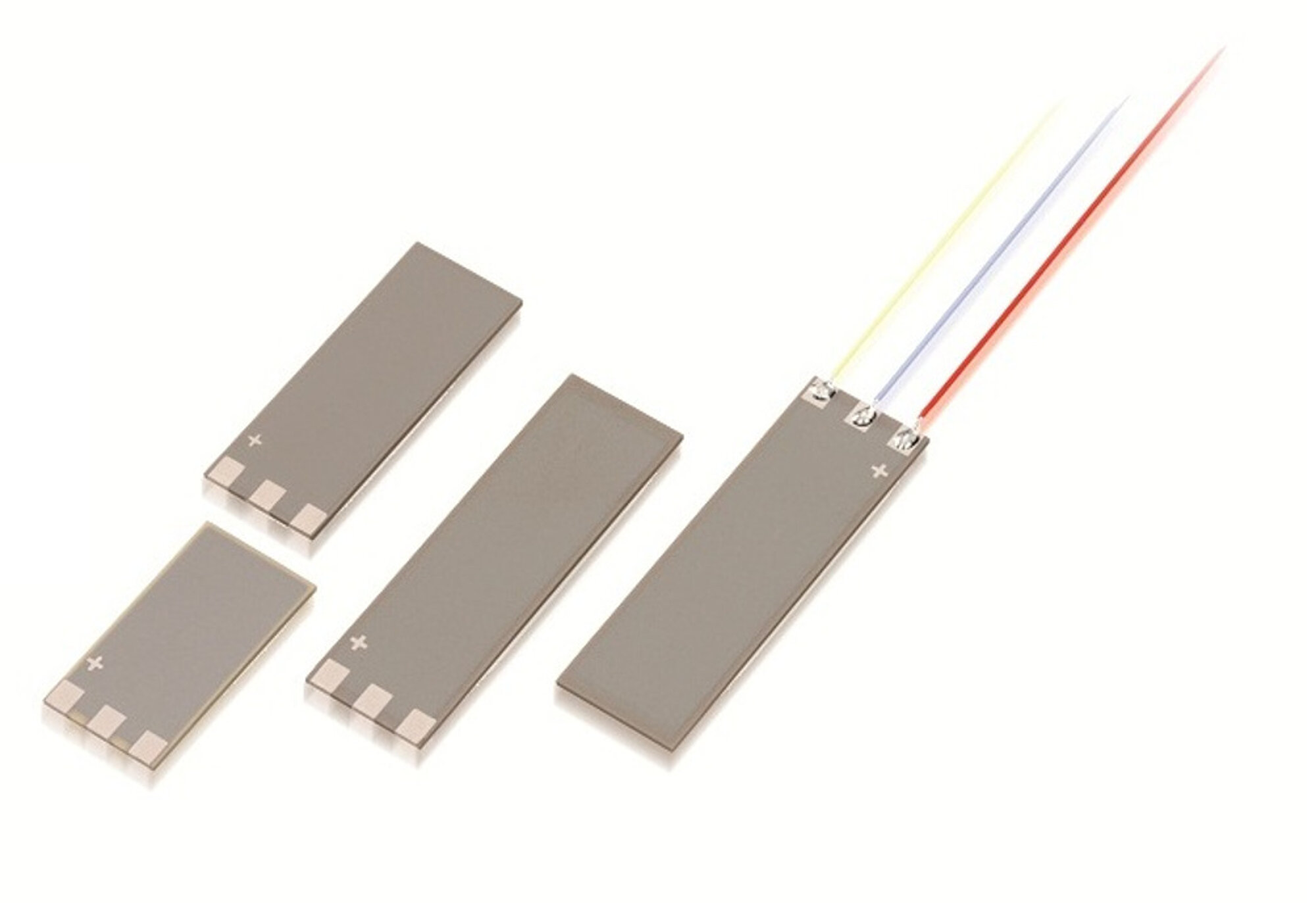

PICMA® multilayer bender elements with high reliability
Operating voltage 0 to 60 V. Bidirectional displacement, bimorph design. Ceramic insulation, polymer free. UHV-compatible to 10-9 hPa, no outgassing, high bakeout temperature. Reliable even under extreme conditions.
Application fields
Industry and research, vacuum. For medical technology, laser technology, sensor technology, automation tasks, pneumatic valves.
Specifications
Datasheet PL112-PL140
Specifications

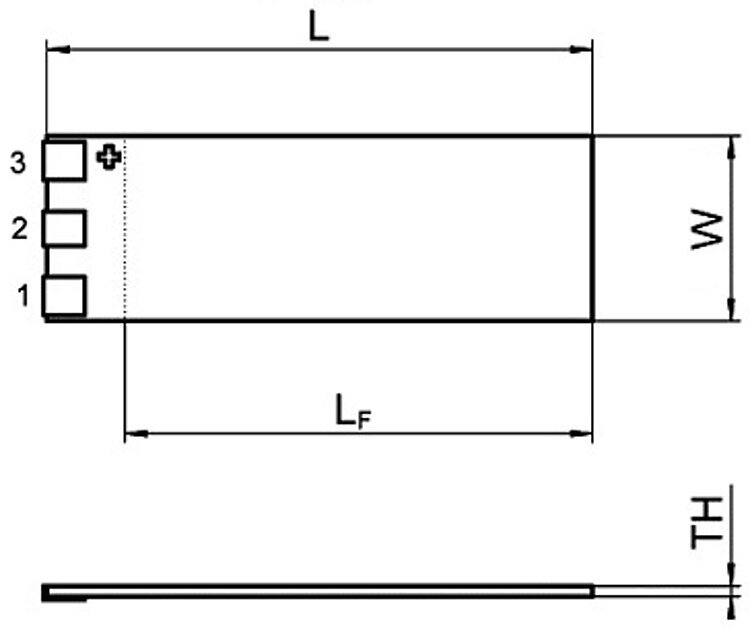

PL112.10 | PL122.10 | PL127.10 | PL128.10 | PL140.10 | Unit | Tolerance | |
---|---|---|---|---|---|---|---|
Operating voltage | 0 to 60 (±30) | 0 to 60 (±30) | 0 to 60 (±30) | 0 to 60 (±30) | 0 to 60 (±30) | V | |
Displacement | ±100 | ±310 | ±450 | ±450 | ±1000 | µm | ±20 % |
Remaining length LF | 12 | 22 | 27 | 28 | 40 | mm | |
Length L | 18 | 25 | 31 | 36 | 45 | mm | ±0.5 mm |
Width W | 9.60 ±0.2 | 9.60 ±0.2 | 9.60 ±0.2 | 6.15 ±0.1 | 11.00 ±0.2 | mm | |
Height TH | 0.67 | 0.67 | 0.67 | 0.67 | 0.55 | mm | ±0.1 mm |
Blocking force | ±2.1 | ±1.25 | ±1.1 | ±0.55 | ±0.5 | N | ±20 % |
Electrical capacitance | 2 × 1.1 | 2 × 2.5 | 2 × 3.4 | 2 × 1.2 | 2 × 4.1 | µF | ±20 % |
Resonant frequency | 1800 | 600 | 420 | 360 | 160 | Hz | ±20 % |
Operating temperature | -20 to 150 | -20 to 85 | -20 to 85 | -20 to 150 | -20 to 85 | °C | |
Piezo ceramic | PIC252 | PIC251 | PIC251 | PIC252 | PIC251 | ||
Recommended electronics | E-650, E-651 • E-614 | E-650, E-651 • E-614 | E-650, E-651 • E-614 | E-650, E-651 • E-614 | E-650, E-651 • E-614 |
Downloads
Datasheet
Datasheet PL112-PL140
Documentation
Short Instructions PZ264
PICMA® Multilayer Piezo Actuators: P-08x, P-88x, PD0xx, PD410, PL0xx, PL1xx, PICMA® Stack, PICMA® Chip, PICMA® Bender
3D Models
PL112 - PL140 3-D model
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
