P-878 DuraAct Power Patch Transducer

Highly Efficient and Robust

  • Useable as actuator, sensor or energy generator
  • Low voltages to 120 V
  • Compact design
  • Individual solutions
P-878 DuraAct Power Patch Transducer
Description du produit Spécifications Téléchargements Devis / Commande

Patch transducer

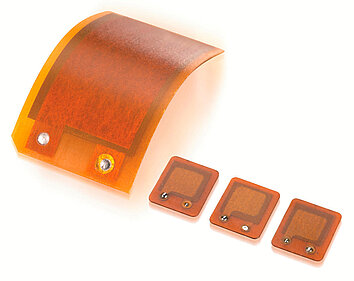

Functionality as actuator and sensor component. Nominal operating voltages of -20 to 120 V. Power generation for self-sufficient systems possible up to the milliwatt range. Can also be applied to curved surfaces.

In longitudinal direction, the DuraAct Power uses the high-efficiency d33 effect.

Robust, inexpensive design

Laminated structure consisting of PICMA® multilayer piezo element, electrodes and polymer materials. Manufactured with bubble-free injection method. The polymer coating simultaneously serves as electrical insulation and as mechanical preload, which makes the DuraAct bendable.

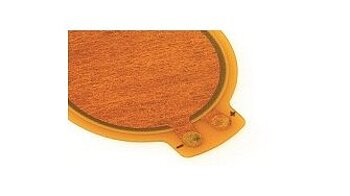

Customized versions and other specifications on request

  • Flexible choice of size

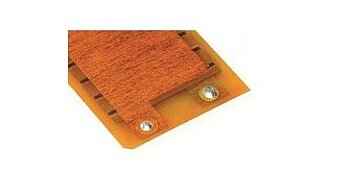

  • Variable design of the electrical connections
  • Combined actuator/sensor applications, even with several active piezoceramic layers

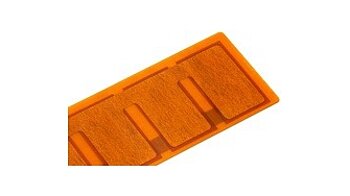

  • Arrays

Application fields

Industry and research. Can also be applied to curved surfaces or used for integration in structures. For adaptive systems, energy harvesting, structural health monitoring.

Specifications

Datasheet

Datasheet P-878

Version / Date
2023-05-11
pdf - 431 KB
Version / Date
2023-05-11
pdf - 433 KB
Version / Date
2019-02-06
pdf - 641 KB

Downloads

Datasheet

Datasheet

Datasheet P-878

Version / Date
2023-05-11
pdf - 431 KB
Version / Date
2023-05-11
pdf - 433 KB
Version / Date
2019-02-06
pdf - 641 KB

Documentation

Documentation

User Manual P876T0001

P-876, P-878 DuraAct and DuraAct Power Patch Transducers

Version / Date
2023-07-07
pdf - 574 KB
Version / Date
2023-07-07
pdf - 621 KB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
