Scan and Alignment Tasks

Some of our more performant controllers offer the possibility to execute different scan and alignment routines, e.g., for fiber optic alignment applications. These can be configured and transferred to the controller with the scan and alignment functions in PIMikroMove and then started via API functions or with the GUI if required. Running on the controller ensures very high performance and allows easy integration via our drivers and API.

In addition, the software extension C-990.FA1 for PIMkroMove offers the possibility to calculate alignment routines on the host PC for E-727 in connection with C-884, a multichannel controller for magnetic drives. Therefore, the application range of our algorithms can be extended. We also offer further integration options.

If you want to run selected alignment routines on ACS controllers, please contact us for further information.

Software for Fast Scanning during the Alignment of Optoelectronic Components

NOUVEAU

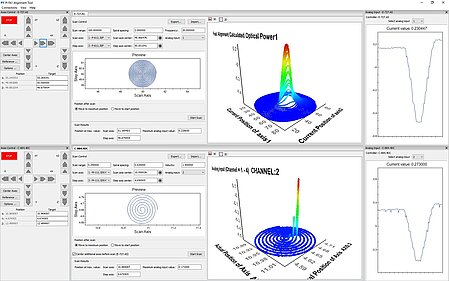

C-990.FA1 PI FA1 Alignment Tool

Software for Fast Scanning during the Alignment of Optoelectronic Components

  • Easy-to-use software for PI alignment systems
  • Specially optimized for alignment tasks in silicon photonics
  • Convenient setup, execution, and evaluation of scans

Downloads

Livre Blanc

Practical Examples of Parallel Alignment Automation

Version / Date
WP4010E 2018-04
pdf - 1 MB
Version / Date
WP4010CN 2018-12
pdf - 786 KB
